TEST ALUMINUM TUBES
WITHOUT VARNISH | ACCORDING TO ASTM D7173
WITH VARNISH | IMPROPER TO ASTM D7173

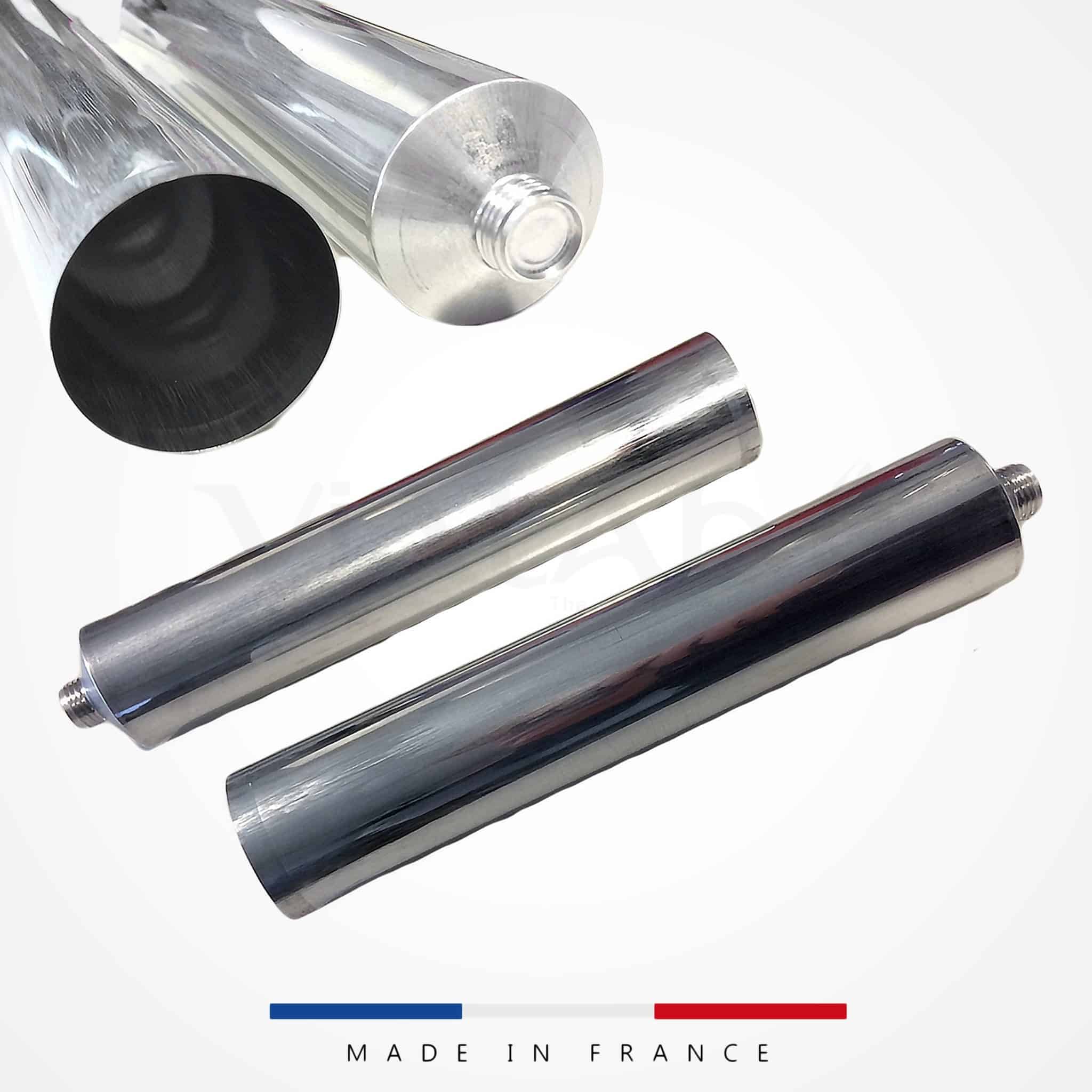

ALUMINUM TUBES | PMB | Ø 25 x 131 mm
Specifications
Aluminum tubes to observe the tendency for separation of polymer modified bitumens, in accordance with ASTM D7173.
- Ø 25 mm
- Overall length 131 mm
- Cap and seal included
F196.145.7173
ALUMINUM TUBES | PMB | Ø 25 x 145 mm
Specifications
Aluminum tubes allowing to observe the tendency of separation of bitumens modified by polymers, Not in conformity with standard ASTM D7173 because of the internal varnish.
- Ø 25 mm
- Overall length 145 mm
- Cap and seal included
F194.145.7173
Accessoires & Options
STAINLESS STEEL RACK | 24 TUBES
Specifications
- Stainless steel rack
- 24 positions
- Heat resistant
- Enables incubation of samples during the application of ASTM D7173.
F039.205.7173
UNIVERSAL OVEN | 58 Liters
Specifications
- Chamber volume : 58 Liters
Performances
- Uniformity : < ± 1.2 ° C to 105°C
- Temperature stability :< ± 0.2°C
- Standard Maximum temperature : 300°C
Dimensions
- Chamber volume : 58 liters
- Internal dimensions (L x W x H): 400 x 360 x 400 mm
- External Dimensions (L x W x H): 565 x 602 x 694 mm
Shelves in stainless steel
- Number of shelves: 2 provided / 6 maximum
- Shelf Dimensions : 370 x 330 mm
- Max weight shelf / Total: 30/60 kg
Power & Miscellaneous
- Voltage : 230V Mono 50 Hz
- Power standard heating to 300°C: 1550 Watts
- Number of doors: 1
- Fan air flow : 200 m3/hr
- Weight : 58 kg
F038.105.2058
PRECISION BALANCE | 3100/0.1 g
Specifications
- Range : 3100 g
- Precision: 0,1 g
- Weighing plate : 128×128 mm
- External calibration
- 33h Battery life
- RS 232 & USB port
F188.120.7030
BEAKER | LOW FORM | 100 ml
Specifications
- Borosilicate glass
- White graduations
- Volume 100 ml
F039.310.0402
FREEZER
Specifications
- Provides cold or chilled water for various applications.
- Incubation of PMB samples before testing
F00X.106.0080
