Flow coefficient of aggregates | Sand angulometer

Flow coefficient of aggregates | Sand angulometer

Specific apparatus required for determining the flow coefficient of sands (not aggregates).

The test consists of determining the flow coefficient Ecs of a sample.

For this we offer you a complete set that meets the EN 933-6 standard with an LRPC reference sand defined for sands as reference material.

(Flow time Ers = 32s)

Following the performance of 5 measurements, the Ecsi and Ecse values are defined: between Ers -2 and Ers +2. Then we carry out a flow test of our sample. (Ecsm)

We can calculate the flow coefficient Ecs of our material/sample according to the relationship Ecs = Ecsm + (Ers – Ecse)

EN 933-6

Products

COEFFICIENT-DE-FORME_EN-933-6-_Angulometre_a_sable_kit_complet_Vialab

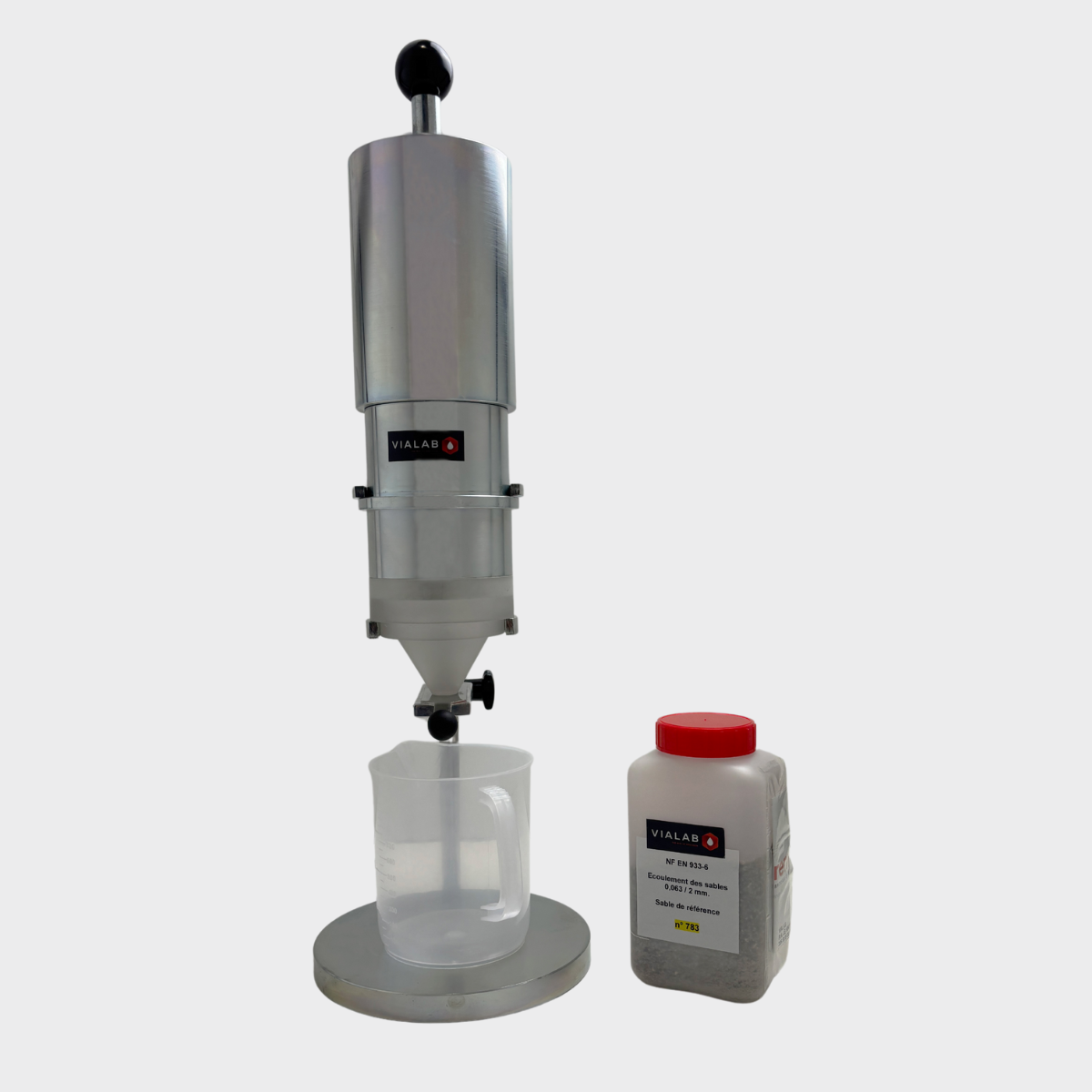

Sand Angulometer - Complete set

Determination of the coefficient of flow of sand according to EN 933-6

  •      Stainless steel calibrated cylinder
  •      2 High Resistance Plastic enamellers – diameter 12 and 16 mm
  •      Stainless steel mounting bracket
  •      Receiving tray – Cup for the recovery of the sample (stainless steel)
  •      Stainless steel feed hopper
  •      Shutter – Control Valve

Supplied with Standardized Sand (1038 g, numbered and delivered with certificate of conformity)

F044.175.0420

Angulometre_a_sable_Vialab-500x500

Sand Angulometer

Determination of Sand Flow Coefficient According to EN 933-6

  • Calibrated stainless steel cylinder
  • 1 high-strength plastic funnel – 12 mm diameter
  • Stainless steel support stand
  • Collection tray – stainless steel sample recovery cup
  • Stainless steel feed hopper
  • Slide gate – control valve

F008.175.0420

Accessories & Options

Fines_de_reference_Vialab-500x500

Standardized sand 1038 g - Sand flow test - EN 933-6

Determination of the coefficient of flow of sand according to EN 933-6

  • Lot of 1038g
  • Numbered and delivered with its certificate of conformity to the standard
  • Flow time of 32 seconds measured at a test sample of 1000 g
  • For the control of sand angulometer

F180.175.9336
