Resistance to wear | Micro-Deval

Resistance to wear | Micro-Deval

Determination of the wear resistance of aggregates, four identical samples of the same fraction are subjected to a determined wear cycle in contact with stainless steel balls placed inside drums also made of stainless steel set in rotation at a certain speed. The sample is normally tested in the wet state, but the test can also be carried out in the dry state. This European Standard applies to natural, artificial or recycled aggregates used in building or civil engineering.

The entire device (times, speeds, etc.) and accessories (diameter, weight, etc.) are standardized.

We offer two models, a standard model allowing the test to be carried out according to the conditions of the standard and a second including an acoustic protection hood that meets the CE safety standard.

EN 1097-1 | EN 13450

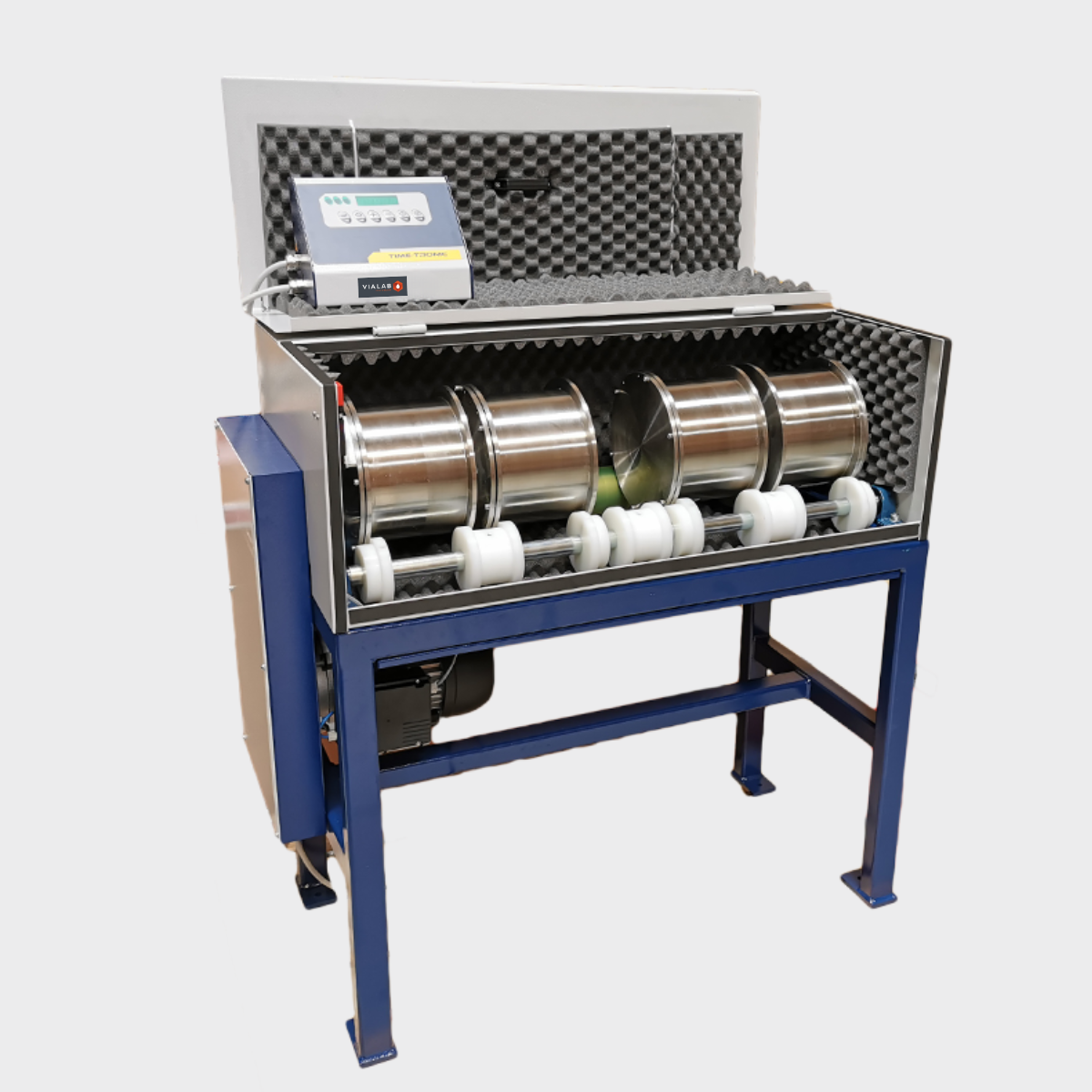

Micro-Deval Testing Machine

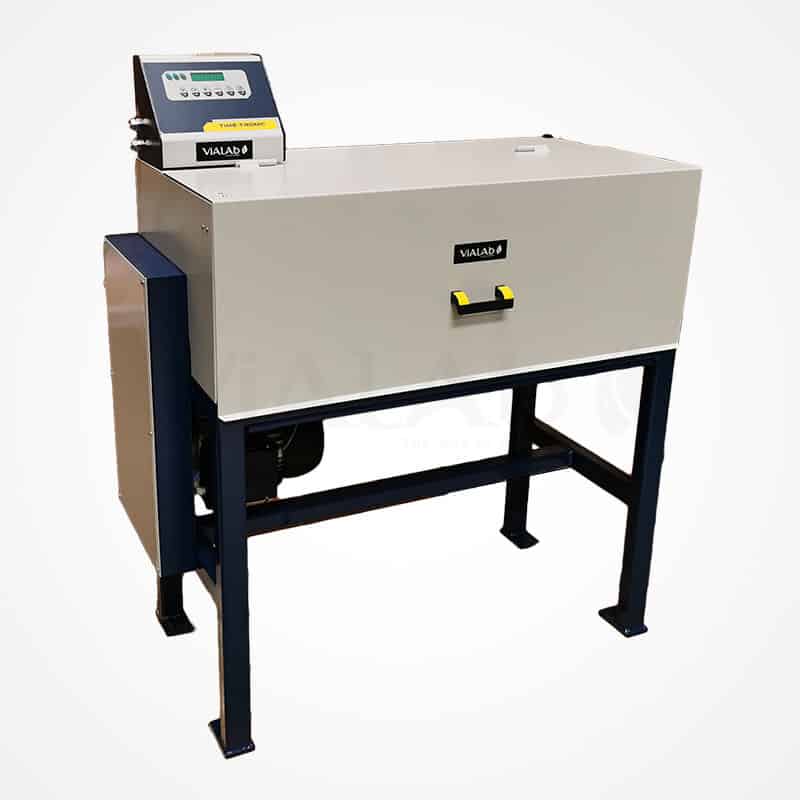

Micro Deval Fermée

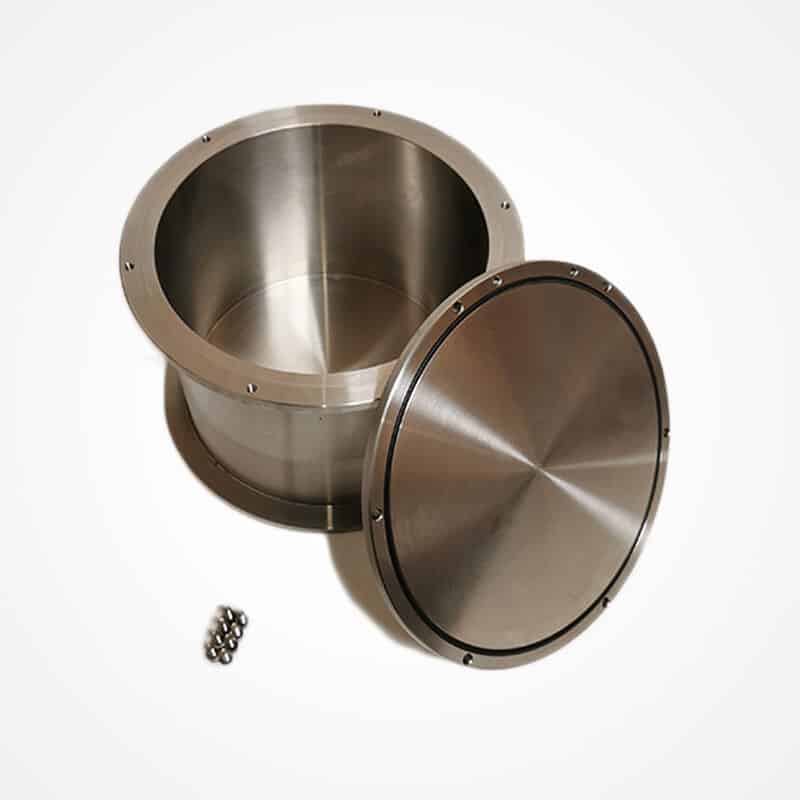

Jarres en acier inoxydable Micro Deval

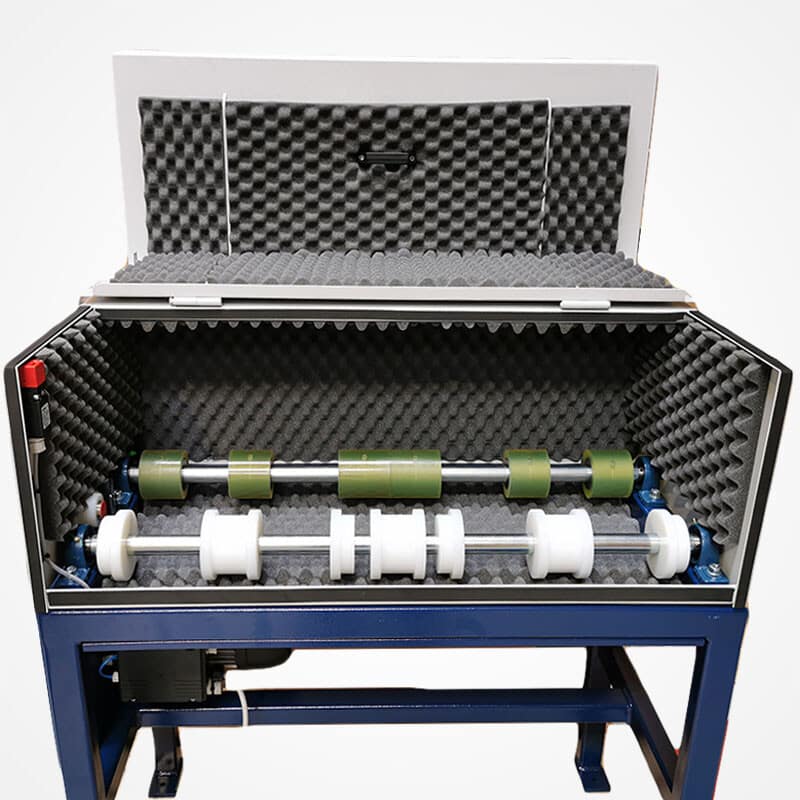

Micro Deval intérieur

Description

  • Robust painted steel frame
  • 2 axes of rotation
  • Rotation speed of the jars of 100 ± 5 revolutions / min
  • Hood, acoustic protection cover with opening safety
  • CE safety standard

Control

  • Control box
  • Main power switch
  • Programming the number of turns
  • Digital tachometer with automatic stop after the programmed number of laps

Specifications

  • Power supply: 220 V – 50 Hz – 1100 W
  • Dimensions (LxWxH, mm): 1100 x 500 x 1000 mm
  • Approximate weight: 150 kg

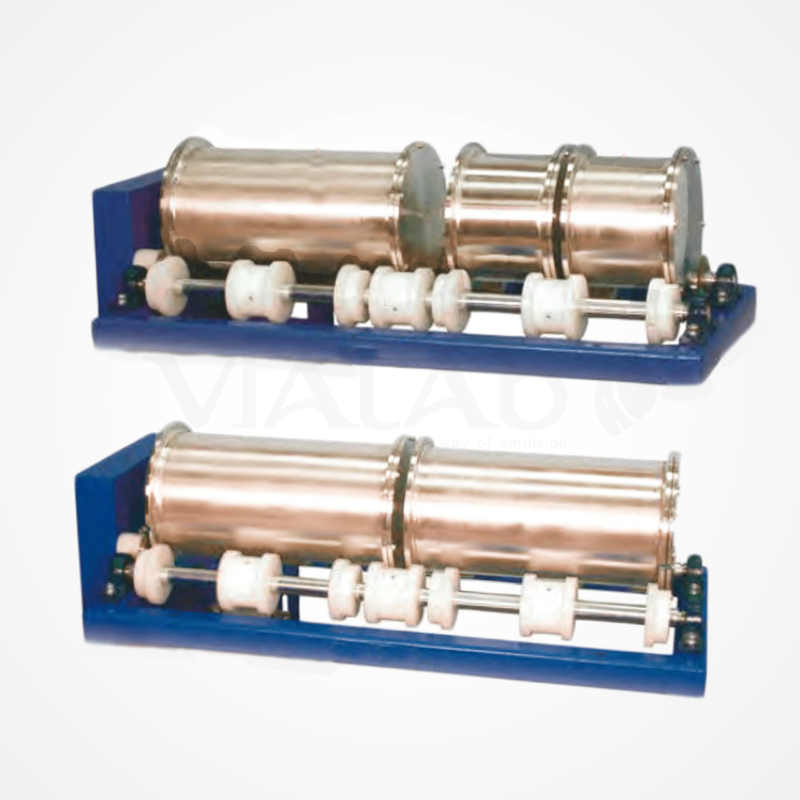

Configuration

  • 4 Stainless steel drums Ø 200 x 154 mm (Internal dimensions)
  • 2 Stainless steel drums Ø 200 x 400 mm (Internal dimensions)
  • 1 Drum Ø 200 x 400 mm + 2 drums Ø 200 x 154 mm in stainless steel (Internal dimensions)

Sold with

  • 4 Stainless steel drums Ø 200 x 154 ± 1 mm (Internal dimensions)

* To be ordered separately

  • Abrasive load (balls) Ø 10 ± 0.5 mm according to EN 1097-1 | 20 kg
  • Additional stainless steel drums to choose from according to your needs

F025.175.6554

Accessories

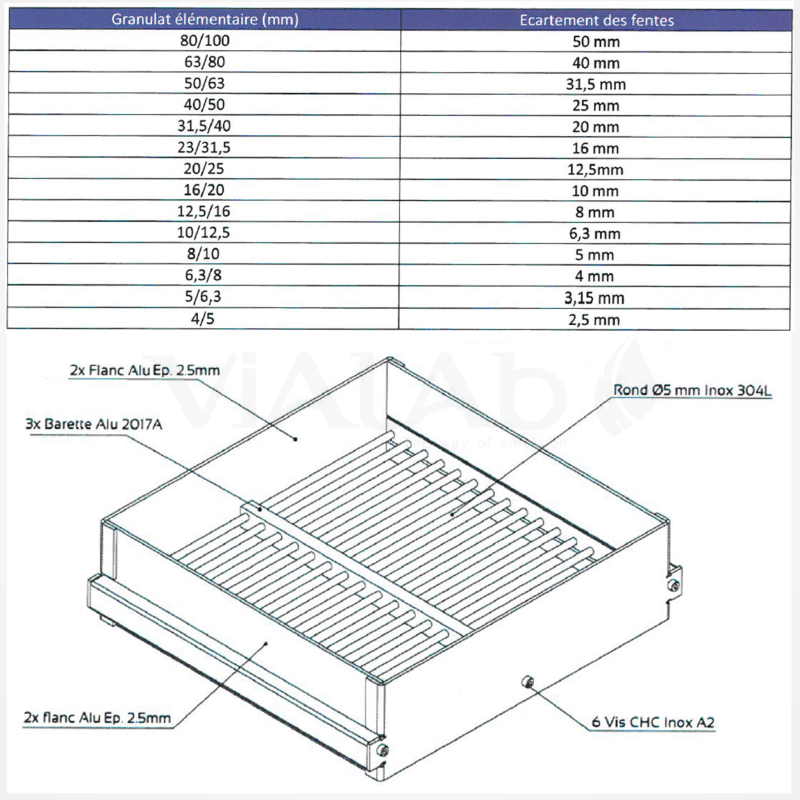

Grid 9.5 mm

Specifications

  • Contrôle des billes selon EN 1097-1

F009.175.0078

Tambour pour Micro deval

Cylinder | Ø 200 x 154 mm

Specifications

  • Stainless steel
  • Ø inner 200 ± 1 mm
  • Inner length 154 ± 1 mm
  • EN 1097-1

F025.175.6555

Tambour pour Micro deval

Cylinder | Ø 200 x 400 mm

Specifications

  • Stainless steel
  • Ø inner 200 ± 1 mm
  • Inner length 400 ± 1 mm
  • EN 13450

F025.175.6556

Billes EN 1427

Testing Balls | 20 KG | MDE

Specifications

  • Chrome steel ball
  • Diameter 10 mm according to EN 1097-1
  • Grade 2000
  • For Micro Deval test machine

F134.175.9999
