Pseudo-Viscosity | Engler

Pseudo-Viscosity | Engler

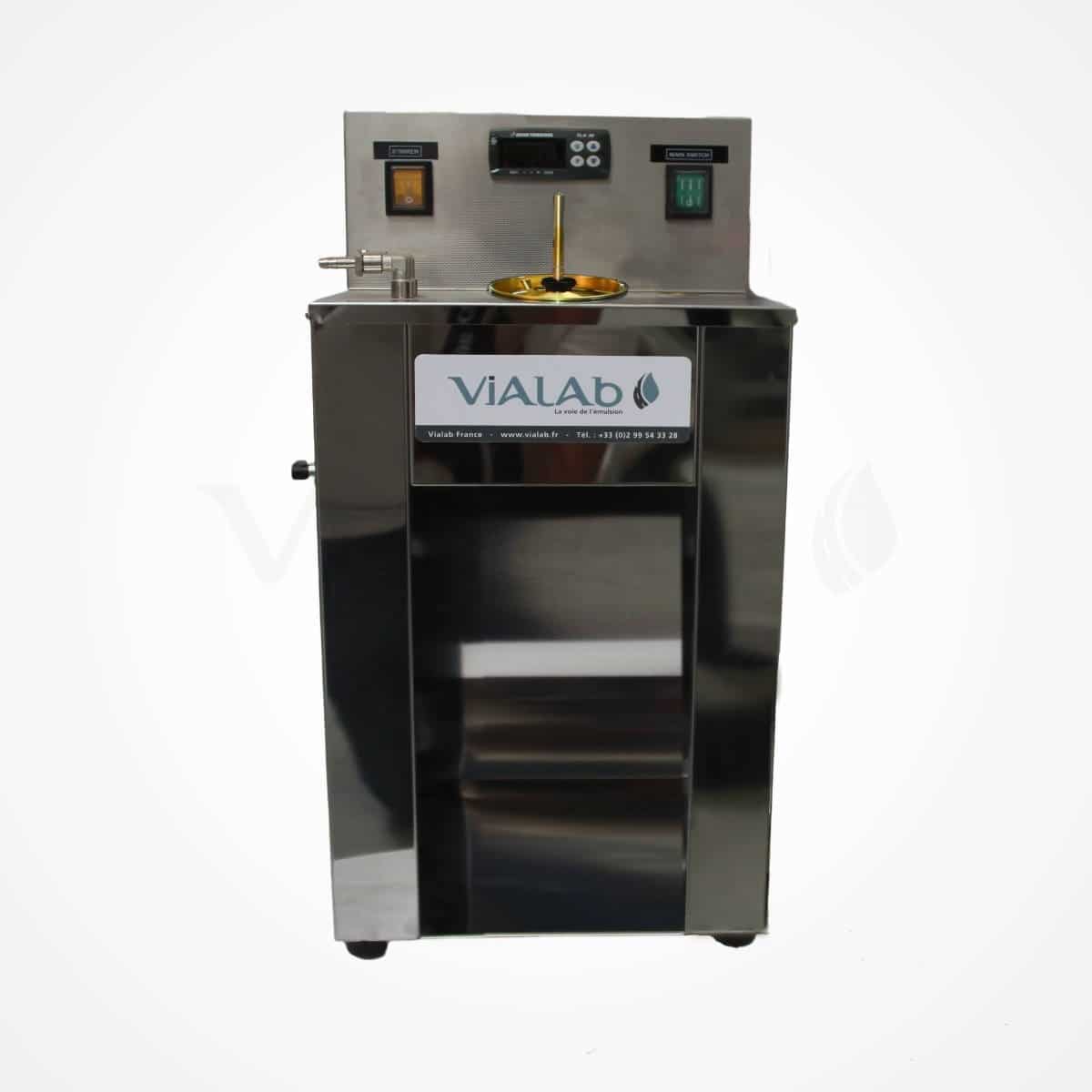

Engler viscometer designed to measure the viscosity of bitumen emulsions with precision and reliability.

Features :

  • Stainless steel structure and brass sample receptacle
  • Thermostatic bath with digital display / regulator (± 0.1 ° C)
  • Electro-mechanical agitator
  • Coil with inlet / outlet for connection to the running water network or to a cooling device for optimized temperature maintenance in all laboratory conditions
  • Safety thermostat against overheating
  • Flow shut-off device
  • Power supply: 220 V 50/60 Hz – 300 W
  • Supplied with one Kohlraush calibrated flask – 200 ml – NF T66-020

Available in single-station (F025.137.0050) and dual-station (F025.137.0051) versions.

NF T66-020 – ASTM D1665

Accessories

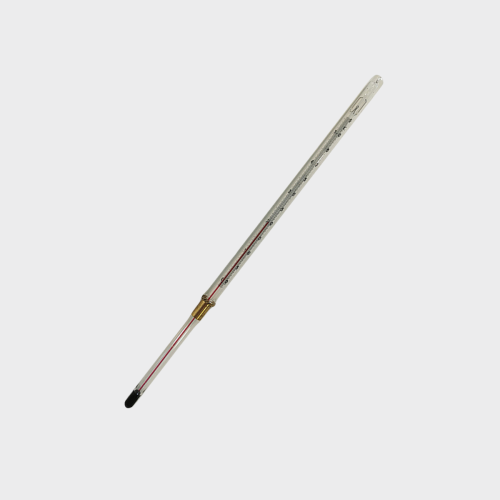

THERMOMETER NF T66-020 | 0/55°C

Specifications

  • 0 to +55°C
  • Subdivision, precision 0.2°C

F025.245.0934

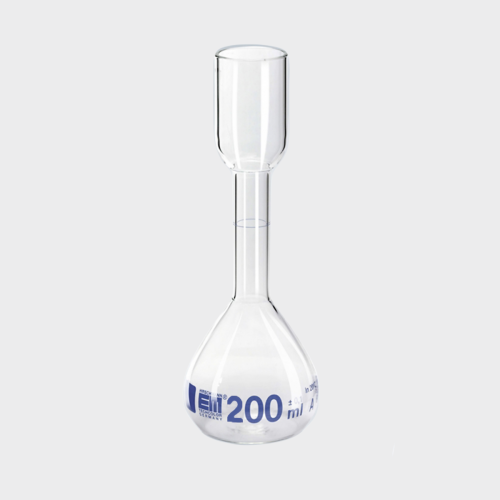

CALIBRATED KOHLRAUSH FLASK | 200 ml

Specifications

  • NF T66-020
  • Volume 250 ml
  • Gauge lines at 100 & 200 ml

F025.137.1522NFT

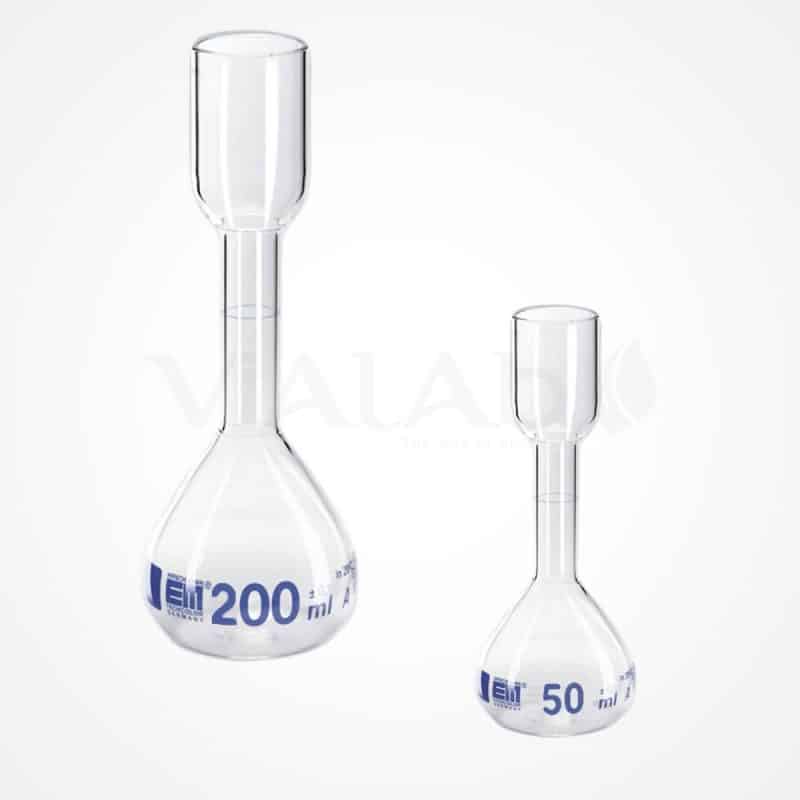

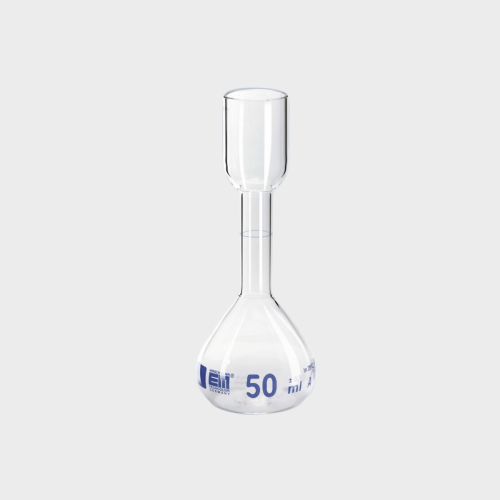

CALIBRATED KOHLRAUSH FLASK | 50 ml

Specifications

  • ASTM D1665
  • Volume 50 ± 0.05 ml
  • Gauge line at 50 ml

F025.137.1524

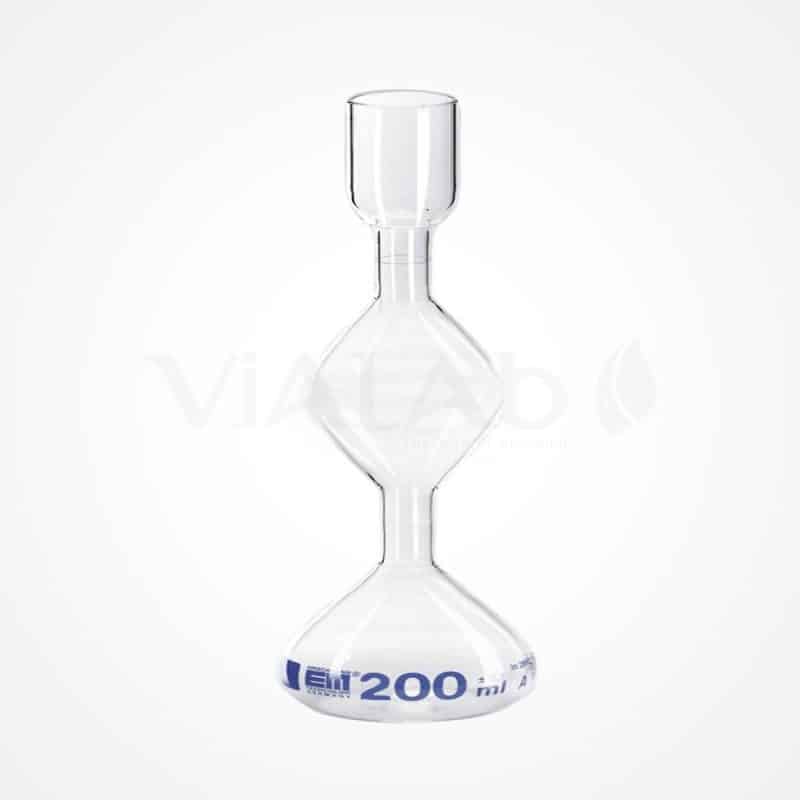

“SUGAR FLASK” | 200 ml

Specifications

  • ASTM D1665
  • Volume 250 ml
  • Gauge line at 200 ml

F025.137.1522ASTM

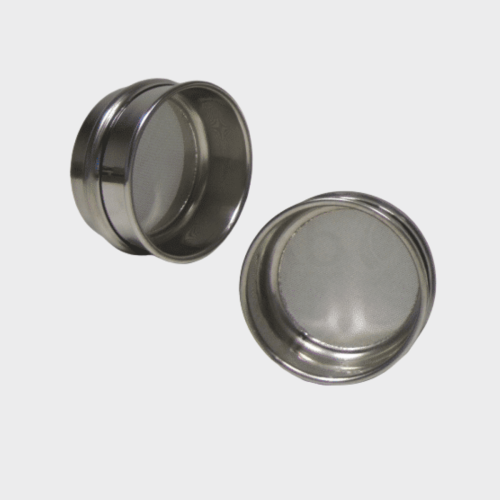

SIEVE | Ø 75 mm | MESH 300 µm

Specifications

  • ASTM E11 No. 50
  • Mesh 0.300 mm – Ø 75 mm – Depth 30 mm
  • Frame and canvas in stainless steel
  • Identification by laser marking
  • Supplied with acceptance certificate
  • Soldering tin
  • ISO 3310 compliant

F019.210.7530

THERMOMETER | ASTM 23C

Specifications

  • +18 to +28°C
  • Subdivision, precision 0.2°C
  • Without Mercure – Blue liquid
  • Length : 212 mm
  • Immersion : 90 mm

F024.245.0023C

THERMOMETER | ASTM 24C

Specifications

  • +9 to +54°C
  • Subdivision, precision 0.2°C
  • Without Mercure – Blue liquid
  • Length : 237 mm
  • Immersion : 90 mm

F024.245.0024C

THERMOMETER | ASTM 25C

Specifications

  • +95 to +105°C
  • Subdivision, precision 0.2°C
  • Without Mercure – Blue liquid
  • Length : 212 mm
  • Immersion : 90 mm

F024.245.0025C

STOPWATCH 1/100e

Specifications

  • Function date & clock
  • Start – Stop – Reset
  • 00h00…24h00
  • Precision 1/100e on 30 mn
  • Memory / 2 times

F007.255.0017
