Needle penetration | Semi-automatic

Needle penetration | Semi-automatic

The test consists of determining the consistency of bitumens and bituminous binders. This method consists of defining the vertical penetration depth of a reference needle in a test sample of the material, in tenths of a millimeter, under precise conditions of temperature, load and duration of application of the load.

The method requires the use of a needle penetrometer, the mobile load of which is 100 g.

(Needle holder: 47.5 g, needle: 2.5 g, additional mass: 50 g).

Products

Pénétromètre à aiguille semi-automatique analogique

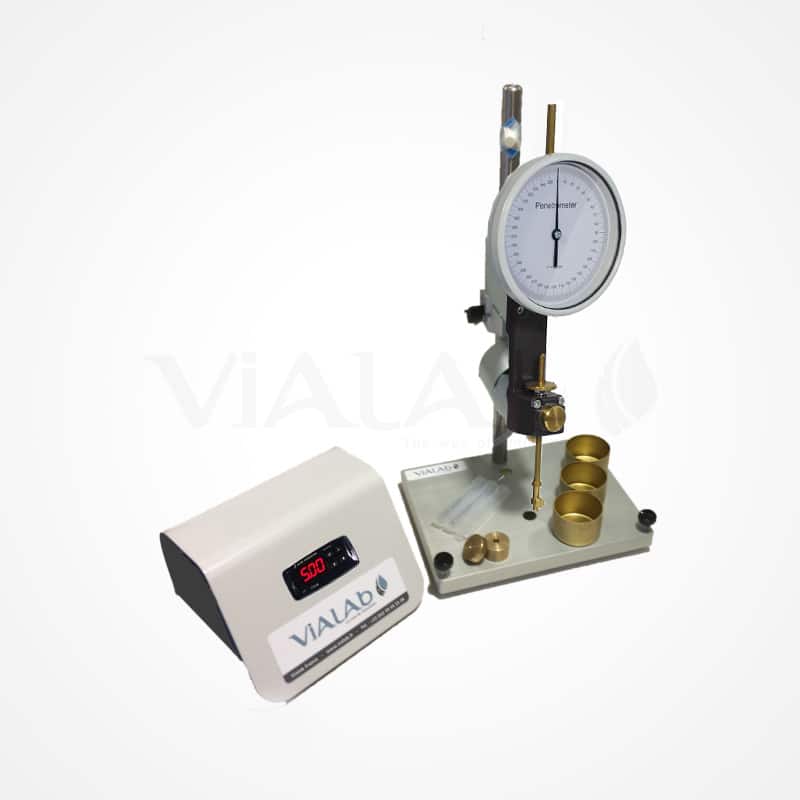

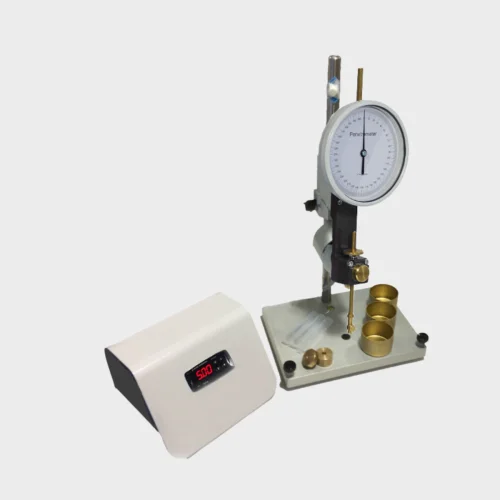

NEEDLE PENETROMETER | SEMI-AUTOMATIC | ANALOG

Specifications

  • Semi-automatic needle penetrometer
  • Depth gauge with vertical analog dial for measurement
  • Range 150 mm – Subdivision 0.1 mm – Ø 150 mm
  • Fixed base with 4 adjustable feet
  • Spirit level integrated into the base
  • Guide column with quick tip positioning system
  • Micrometric screw for precise positioning of the tip
  • Electromagnetic device for holding / falling the mobile
  • Sold with a needle holder and 50 g and 100 g brass weights

* Needles and cans to be ordered separately.

F025.135.166DC

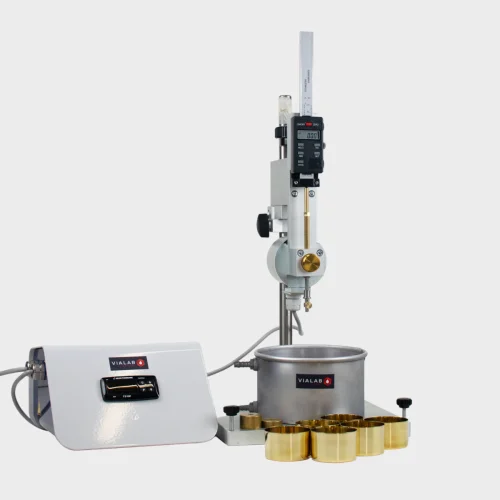

Pénétromètre semi-automatique bitume

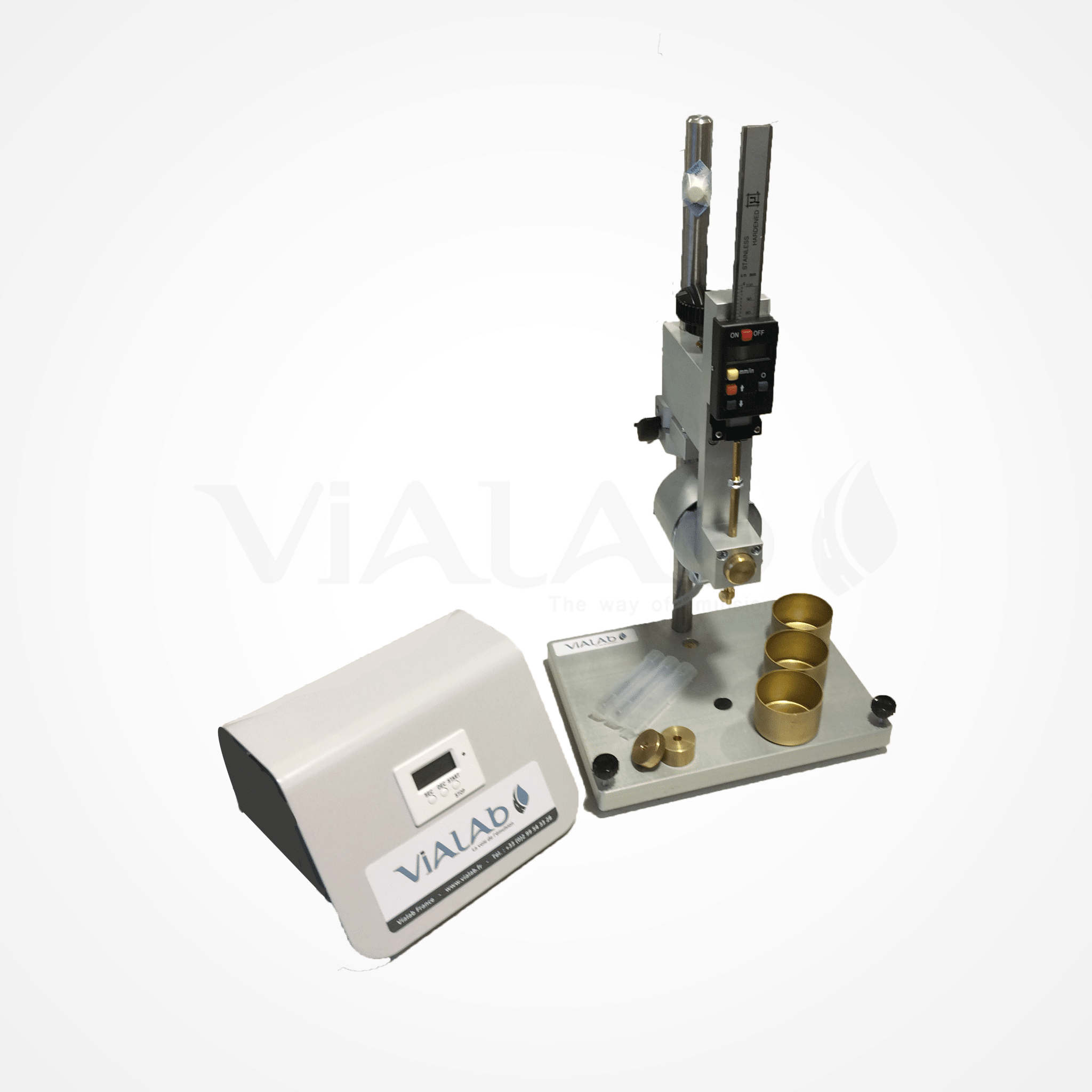

NEEDLE PENETROMETER | SEMI-AUTOMATIC | DIGITAL

Specifications

  • Semi-automatic needle penetrometer
  • Vertical digital depth gauge – Range 150 mm – Accuracy 0.01 mm
  • Fixed base with 4 adjustable feet
  • Spirit level integrated into the base
  • Guide column with quick tip positioning system
  • Micrometric screw for precise positioning of the tip
  • Electromagnetic device for holding / falling the mobile
  • Adjustable timer for scrupulous respect of the falling time
  • Sold with a needle holder and weights of 50 g and 100 g in brass

* Needles and Cans to be ordered separately.

F025.135.166DP

Consumables

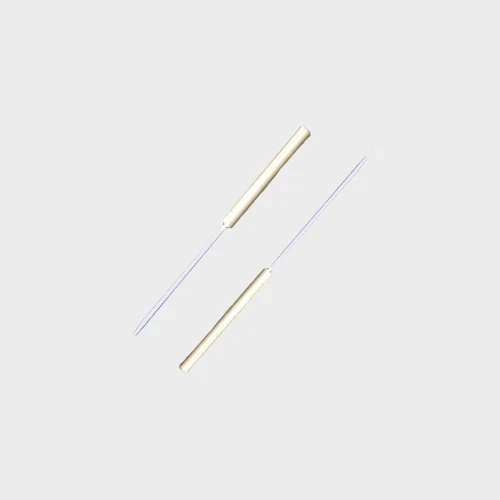

Certificated penetration needle UKAS

PENETRATION NEEDLE | CERTIFIED

Specifications

  • Control needle
  • Weight: 2.5 g
  • UKAS EN 1426 certification | ASTM D5 | IP 49
  • Unique serial number by laser engraving
  • Made in France

F075.135.1572

With control certificate

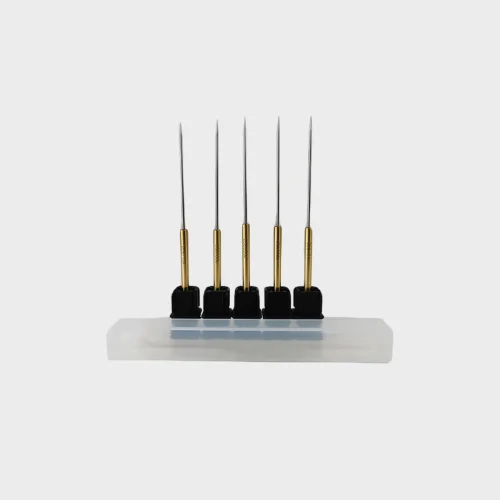

Working penetration needle ASTM D5 EN 1426

PENETRATION NEEDLE | (x5)

Specifications

  • Working needle
  • Weight: 2.5 g
  • Must be qualified before use by comparison with a certified needle and / or on a bitumen of known penetration reference
  • Unique serial number by laser engraving
  • Made in France
  • Sold by 5

F075.135.1571

Working needle

Godets bitume en laiton

BRASS CAN | Ø 55 x 35 mm

Specifications

  • Thick brass
  • Reusable

F025.135.1665

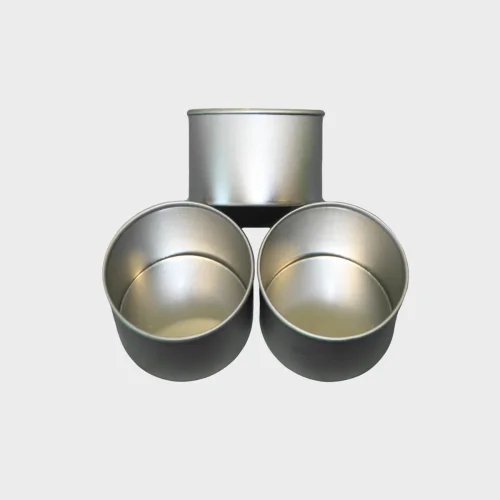

Godet bitume jetables

IRON CAN | Ø 55 x 35 mm | Pack of 50

Specifications

  • Thin white Iron
  • Disposable

F075.135.1866

Godets bitume en laiton

BRASS CAN | Ø 70 x 45 mm

Specifications

  • Thick brass
  • Reusable

F025.135.1666

Godet bitume jetables

IRON CAN | Ø 70 x 45 mm | Pack of 50

Specifications

  • Thin white iron
  • Disposable

F075.135.1868

Accessories & Options

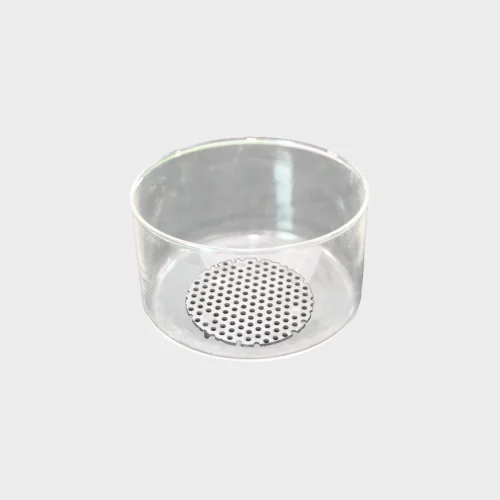

PERFORATED SAMPLE SUPPORT

Specifications

  • Stainless steel

F025.135.NA

Cristalisoir 380 ml

GLASS RECIPIENT | 380 ml

Specifications

  • Capacity : 380 ml
  • Diameter : 115 mm
  • Height : 65 mm

F039.135.7400

pénétromètre automatique bitume

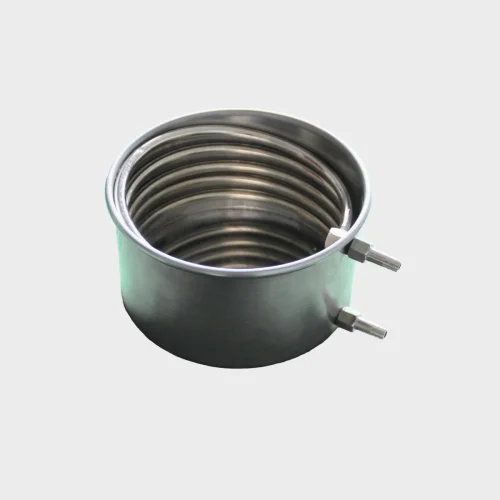

METALLIC TRANSFER TANK

Specifications

  • Metal transfer tank with cooling coil
  • Painted steel

F025.135.1651

Thermomètre

THERMOMETER | ASTM 17C

Specifications

  • +19 /+27°C
  • Precision 0.1°C
  • Length 275 mm

F024.245.0017C

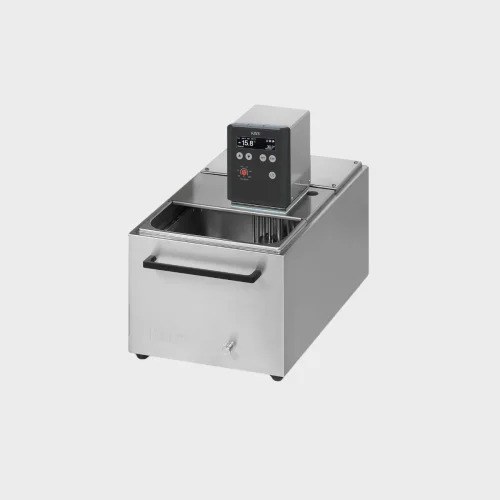

CRYOTHERMOSTAT KIT | 15 L | BASIC

Specifications

  • Cryothermostat | 15 L | Basic
  • Display of the temperature of the external application
  • Circulation head with OLED display
  • Display of setpoint and bath temperature
  • Temperature range: -20… 200 ° C
  • Temperature stability: ± 0.05 ° C
  • Adjustable stainless steel support bottom | 15 L
  • Stainless steel cover with handle | 15 L
  • PT100 external temperature sensor
  • Pump adapter
  • Isolation valve for external application

F077.125.KK15

Available in 25 Liters
