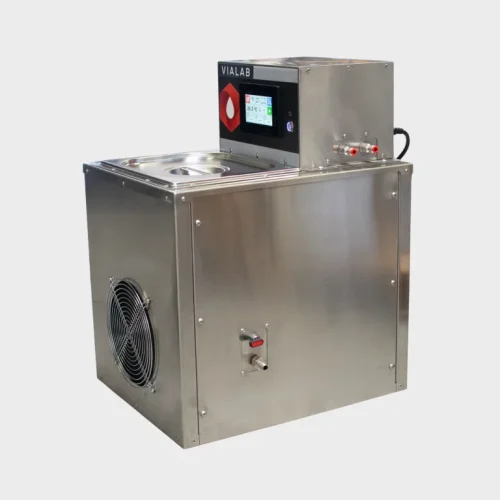

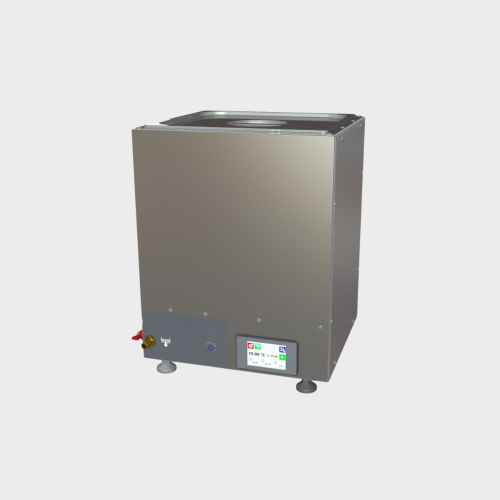

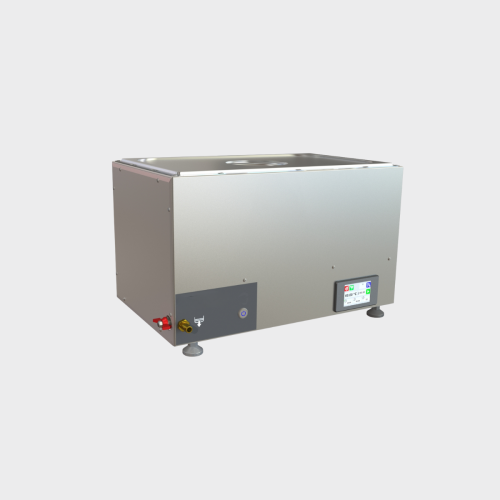

Cooling water bath

• Working volume of 12 L with magnetic stirring
• Temperature display and regulation from -15°C to 65°C
• Highly intuitive touchscreen
• Accuracy of ±0.1 °C
• Valves for external application (Needle Penetrometer)

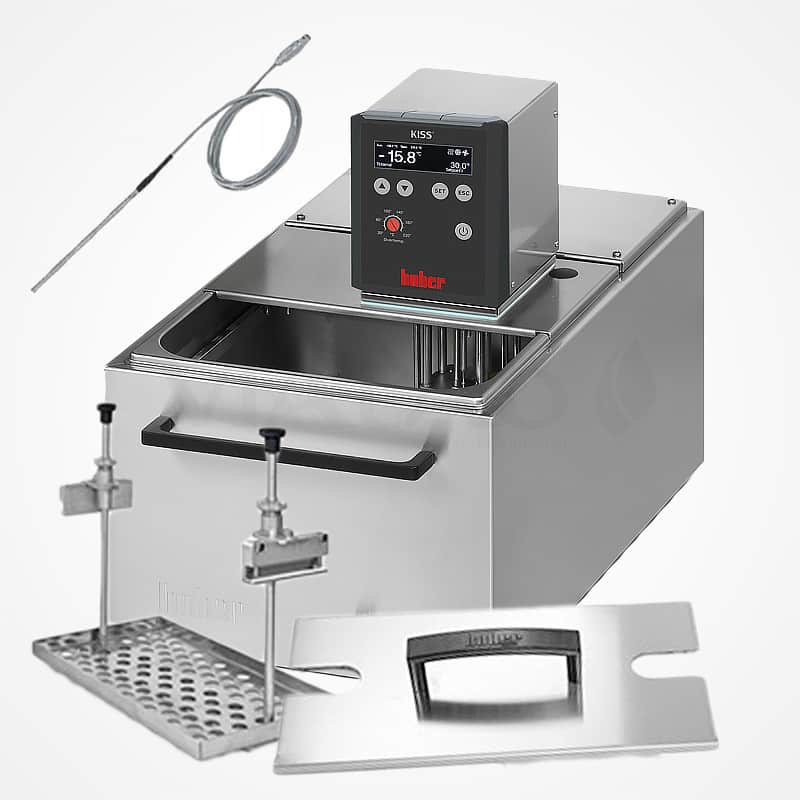

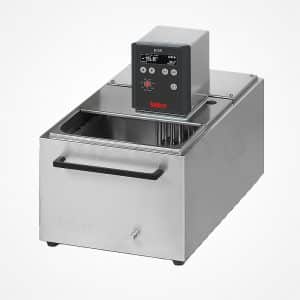

• Cooling water bath | 15 L | Basic
• Display the temperature of the external application
• Circulation head with OLED display
• Display setpoint and bath temperature
• Temperature range: -20… 200 ° C
• Temperature stability: ± 0.05 ° C

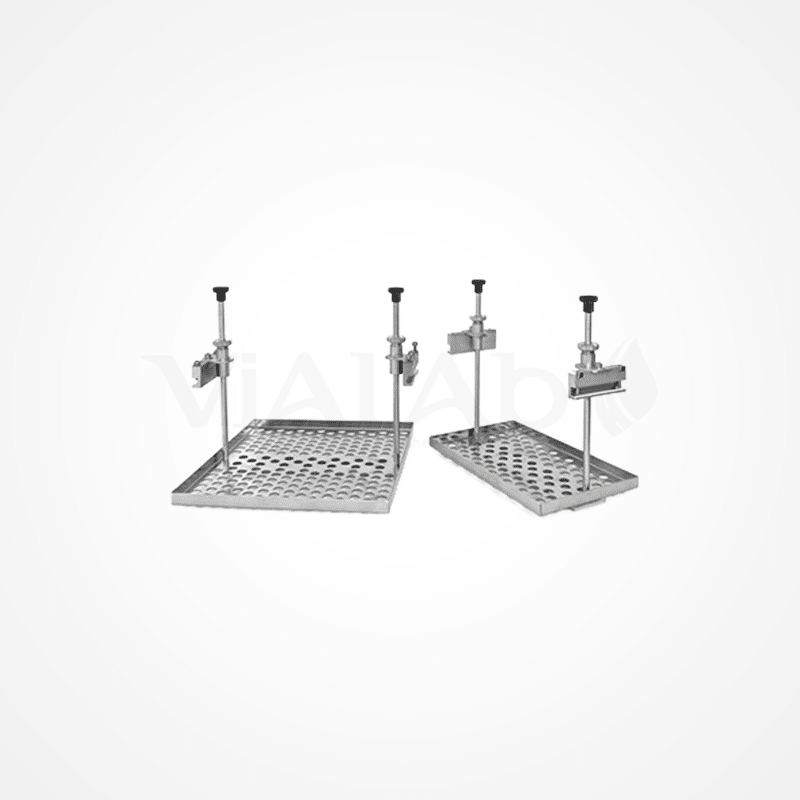

• Adjustable stainless steel support base | 15 liters

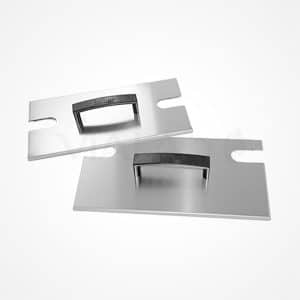

• Stainless steel cover with handle | 15 liters

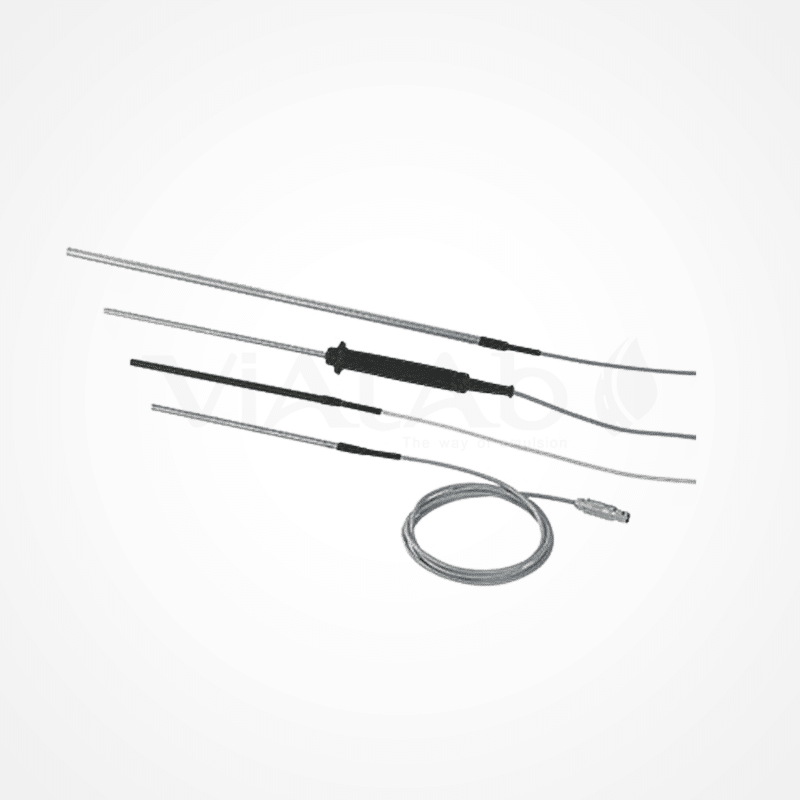

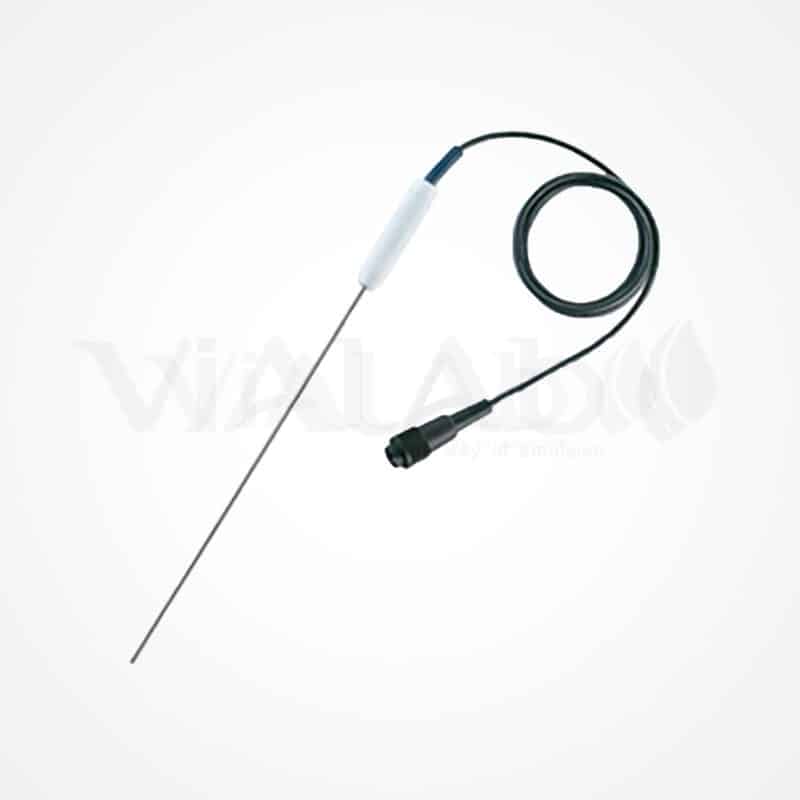

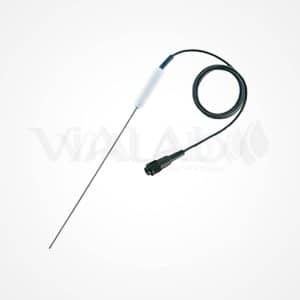

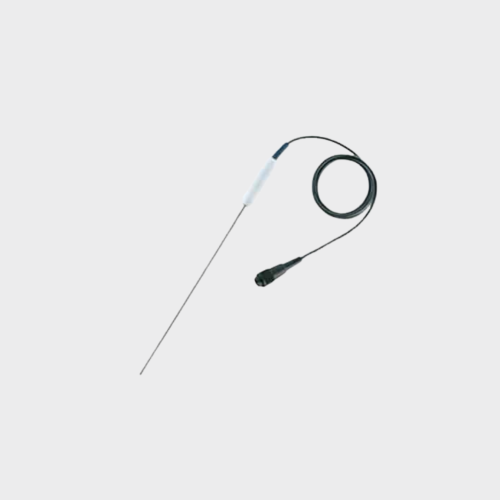

• External temperature probe PT100

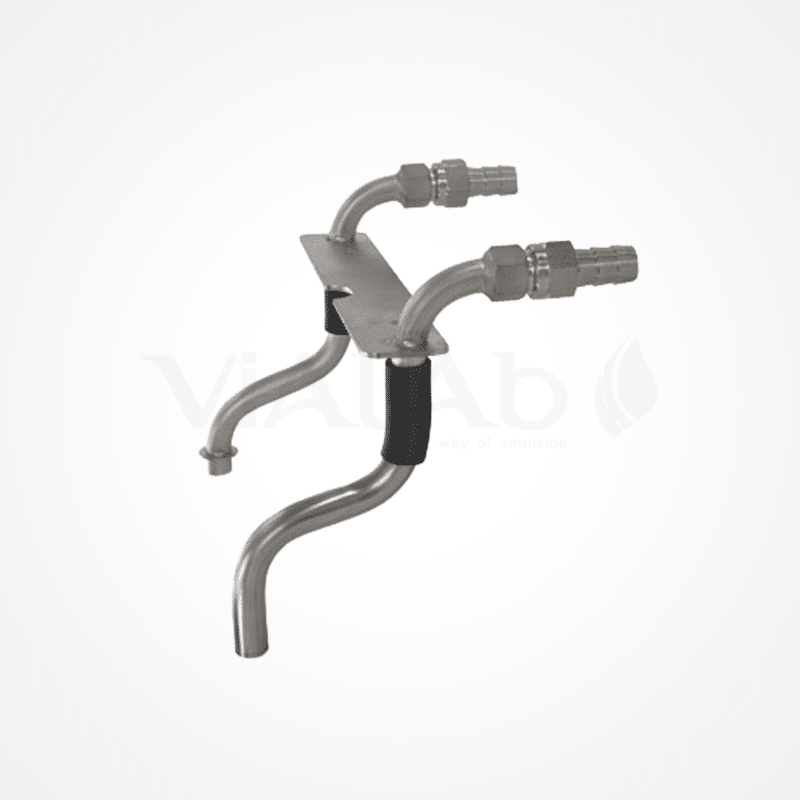

• Pump adapter

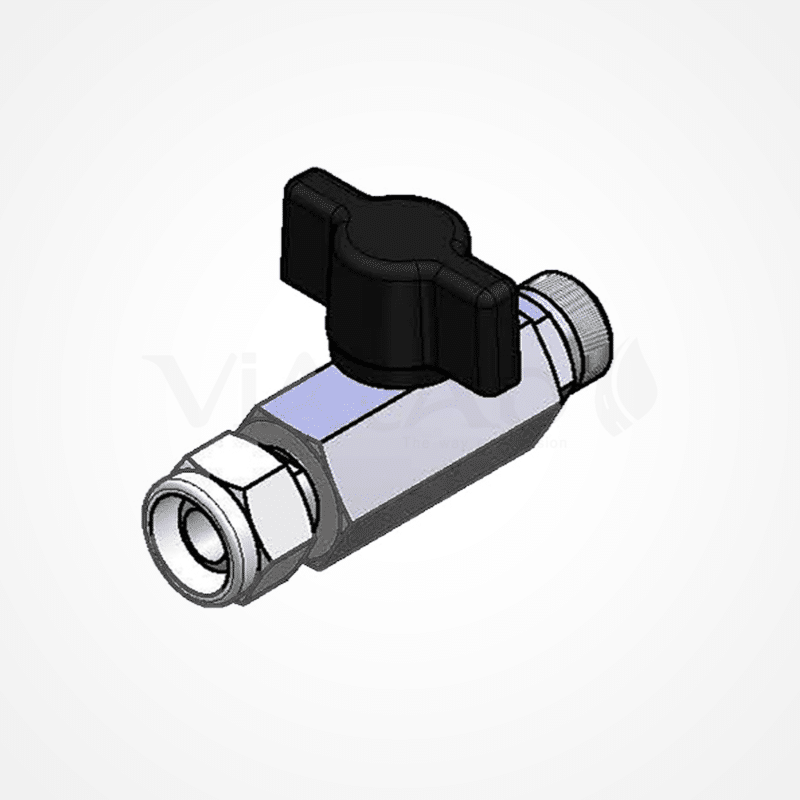

• Isolation valve for external application

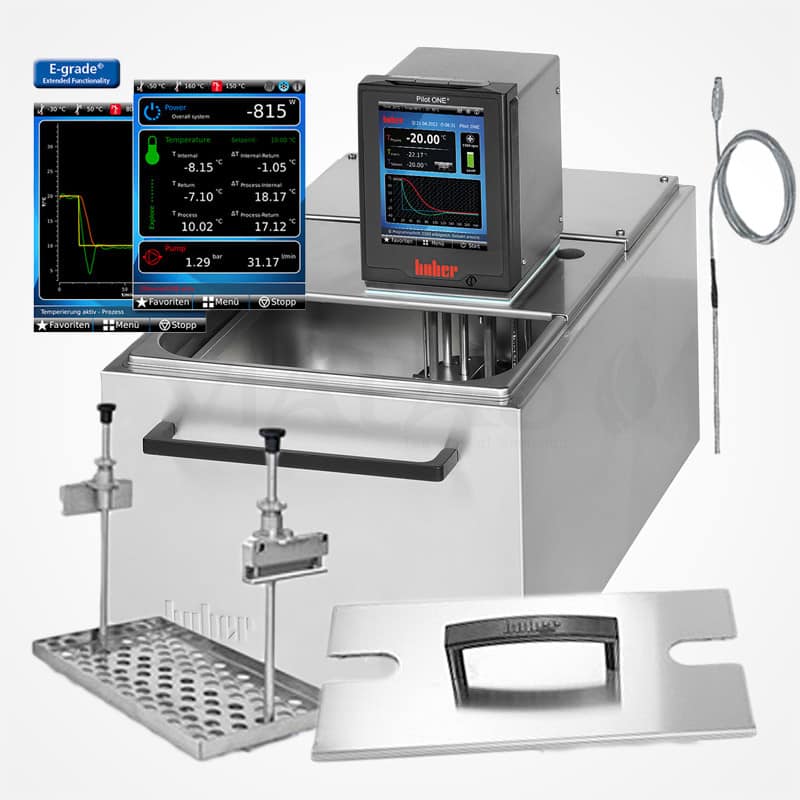

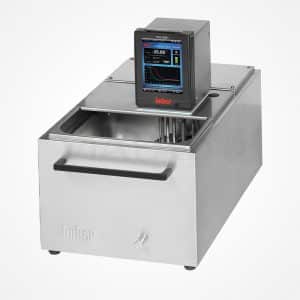

• Cooling water bath | 15 L | Advanced
• Temperature measurement and regulation from the external application
• Circulation head with digital touch display
• Display setpoint and bath temperature
• Temperature range: -20… 200 ° C
• Temperature stability: ± 0.02 ° C
• Adjustable stainless steel support base | 25 liters
• Stainless steel cover with handle | 25 liters

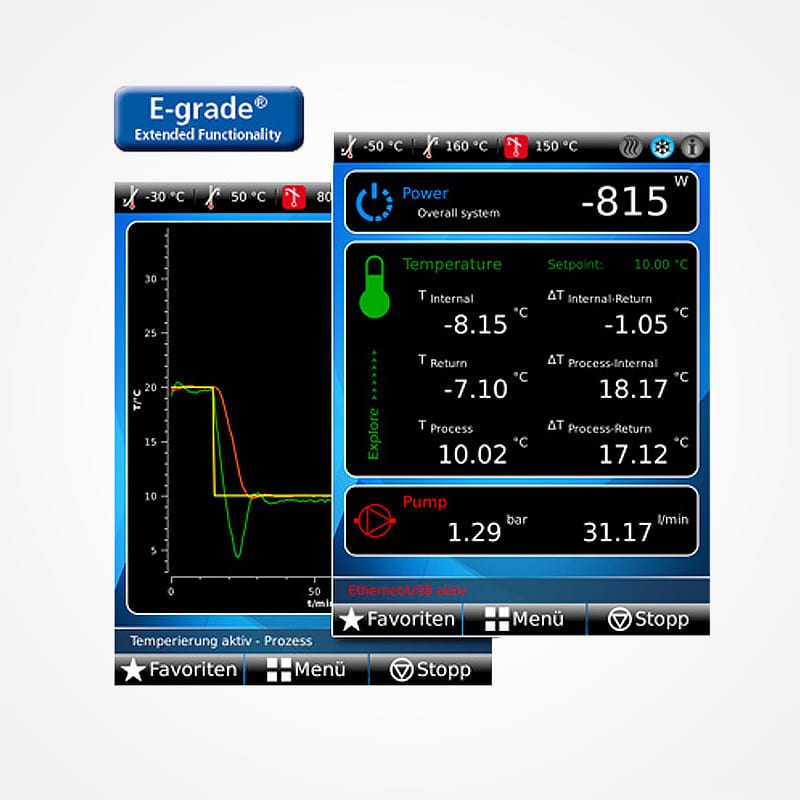

• Evolution E-Grade for regulation of external application
• External temperature probe PT100
• Pump adapter
• Isolation valve for external application

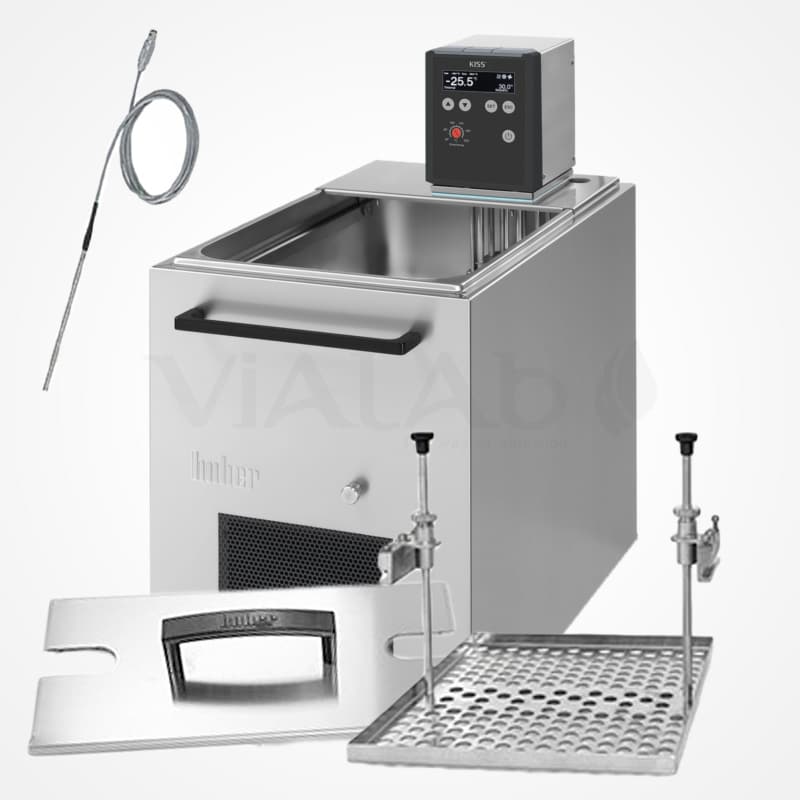

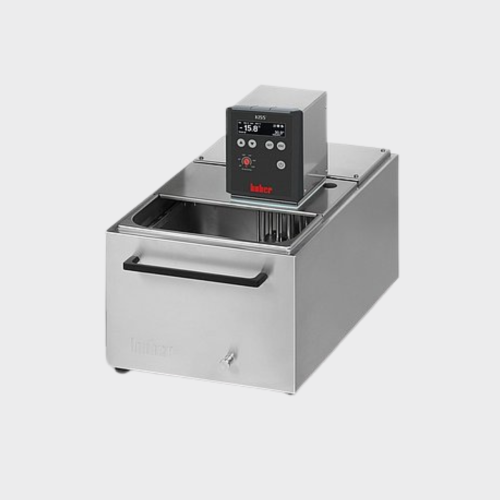

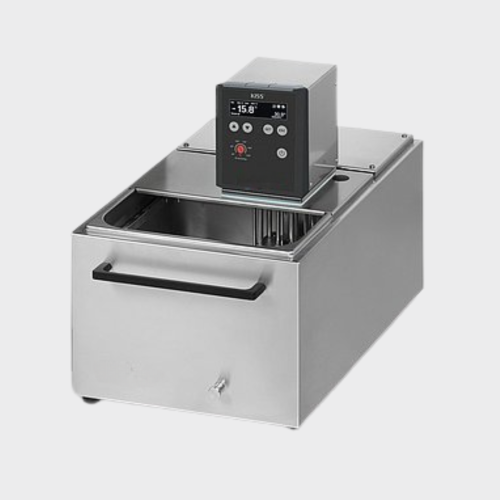

• Cooling water bath | 25 L | Basic
• Display the temperature of the external application
• Circulation head with OLED display
• Display setpoint and bath temperature
• Temperature range: -20… 200 ° C
• Temperature stability: ± 0.05 ° C
• Adjustable stainless steel support base | 25 liters
• Stainless steel cover with handle | 25 liters
• External temperature probe PT100
• Pump adapter
• Isolation valve for external application

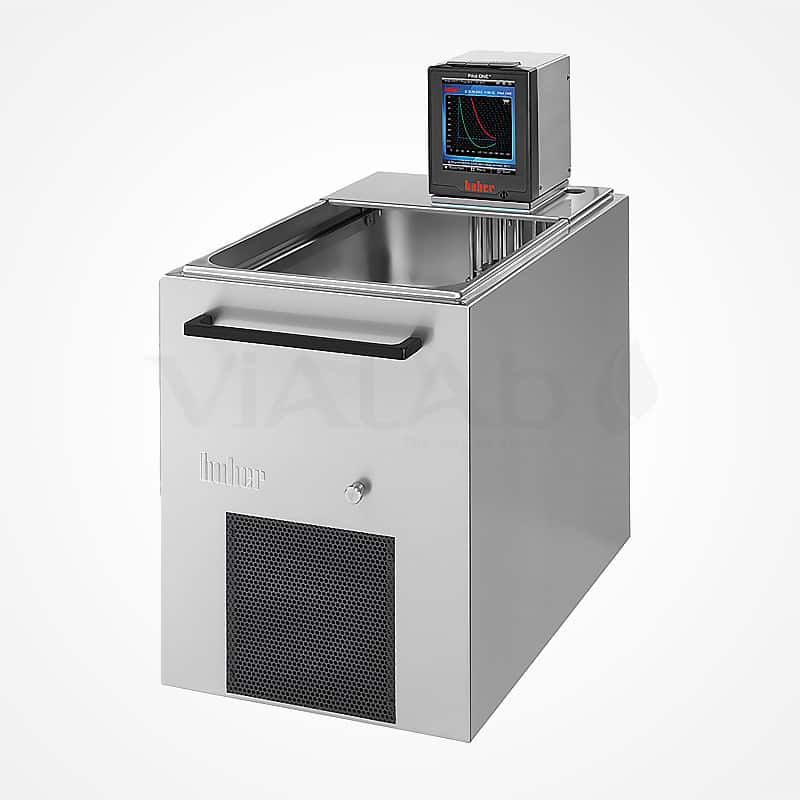

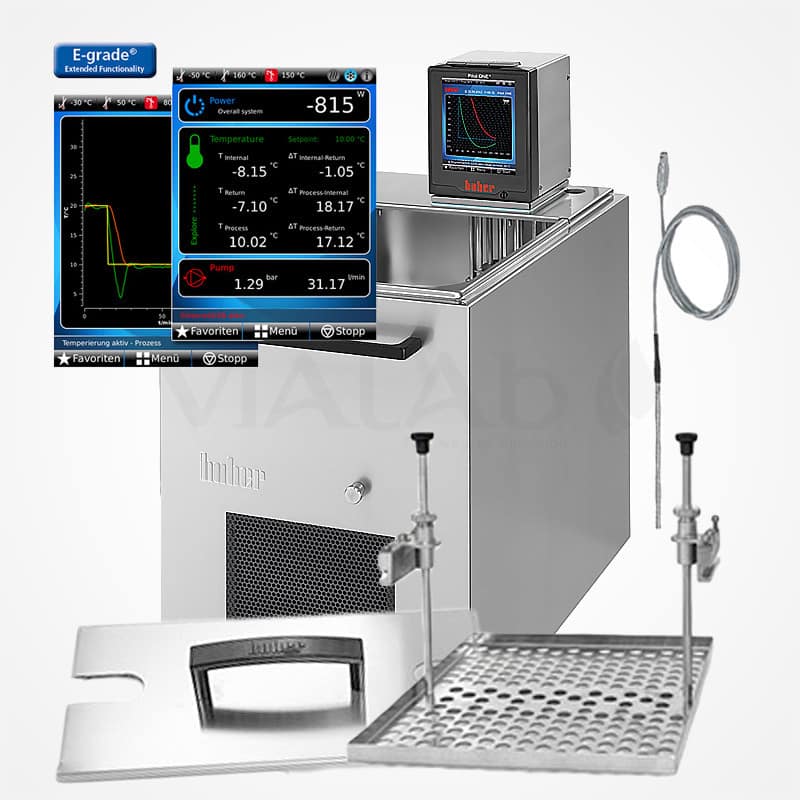

• Cooling water bath | 25 L | Advanced
• Temperature measurement and regulation from the external application
• Circulation head with digital touch display
• Display setpoint and bath temperature
• Temperature range: -20… 200 ° C
• Temperature stability: ± 0.02 ° C
• Adjustable stainless steel support base | 25 liters
• Stainless steel cover with handle | 25 liters
• Evolution E-Grade for regulation of external application
• External temperature probe PT100
• Pump adapter
• Isolation valve for external application

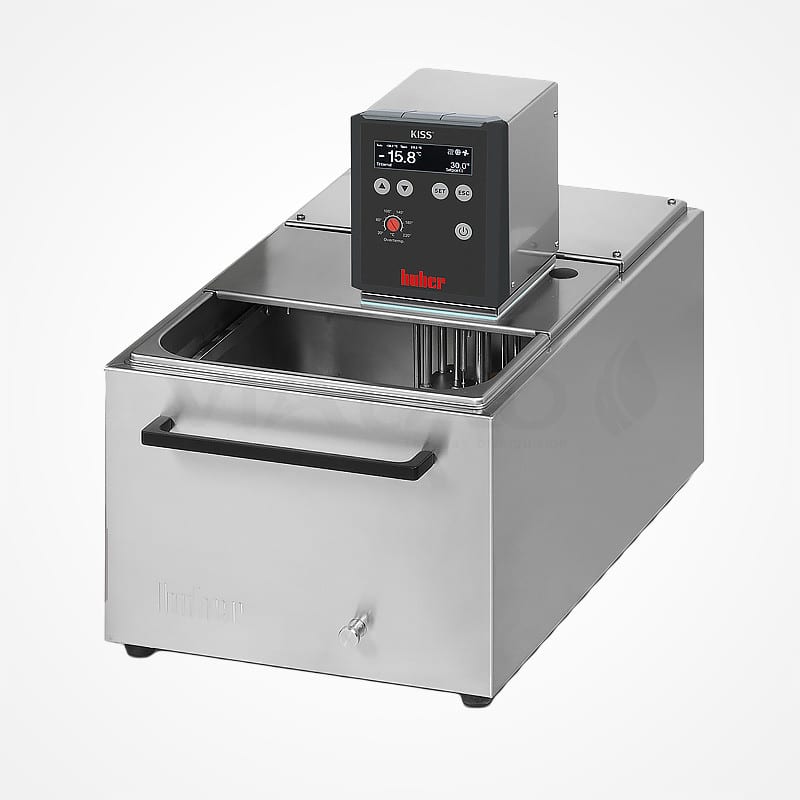

Regulation head (OLED display with simultaneous display of set temperature and bath temperature, + mini/maxi)
USB and RS232 connectors

General & Temperature Control

• Temperature range: -20 … 200 ° C
• Temperature Stability: ± 0.05 ° C
• Temperature Display: LED Display
• Message alert: optical, acoustical
• Regulator: MPC
• Protection class: III / FL
• Dimensions (W x H x D): 350 x 560 x 430 mm
• Net Weight: 28 kg

Heating power / cooling

• Heating capacity: 2 kilowatts
• Cooling : 20 | 0 | -10 | -20 ° C
• 0.25 | 0.2 | 0.12 | 0.05 kilowatts
• Machine Cooling: air-cooled
• Cooling Agent Level 1: R290

Circulation pump

• Power outlet max. : 14 l / min; 0.25 bars
• Suction power max. : 10.5 l / min; 0.17 bars

Connections

• RS232 digital interface
• Data Service
• Permissible ambient temperature: 5 … 40 ° C
• Bath L x P / Depth: 290 x 152/200 mm
• Volume of bath: 15 Litres
• Mains connection: 230V ~ 50/60Hz 1
• Current consumption max. : 2 A

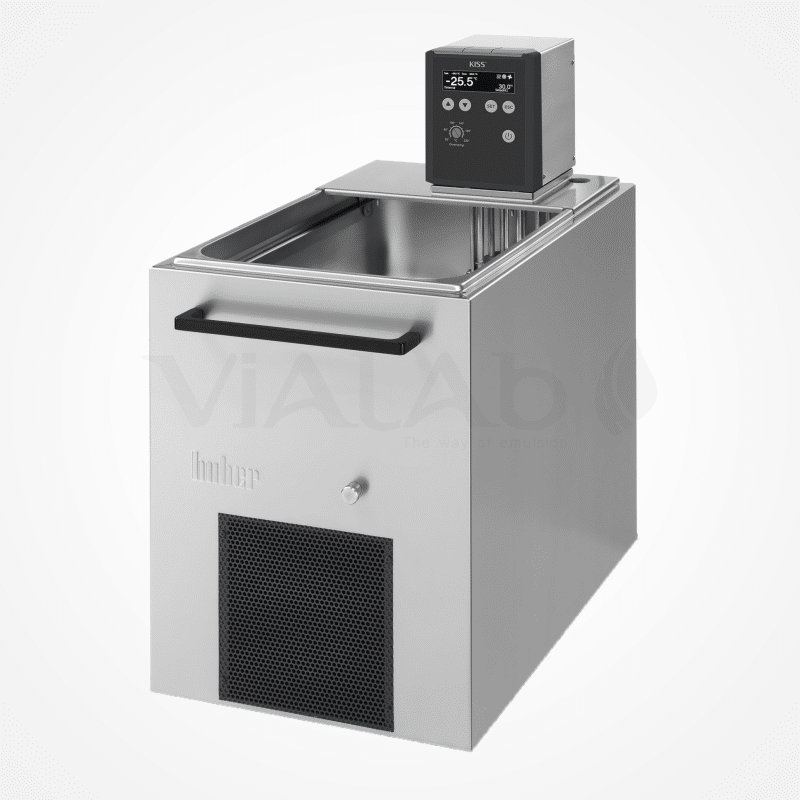

Circulation head (OLED simultaneous display of set and bath temperature, + mini/maxi)
USB and RS232 connectors

General & Temperature Control

• Temperature range: -30 … 200 ° C
• Temperature Stability: ± 0.05 ° C
• Temperature Display: LED Display
• Message alert: optical, acoustical
• Regulator: MPC
• Protection class: III / FL
• Dimensions (W x H x D): 350 x 555 x 615 mm
• Net Weight: 36 kg
• Heating power / cooling
• Heating capacity: 2 kilowatts
• Cooling : 20 | 0 | -10 | -20 ° C
• 0.4 | 0.35 | 0.27 | 0.16 kilowatts
• Machine Cooling: air-cooled
• Cooling Agent Level 1: R290

Circulation pump

• Power outlet max. : 20 l / min; 0.2 bars
• Suction power max. : 17 l / min; 0.18 bars

Connections

• RS232 digital interface
• Data Service
• Permissible ambient temperature: 5 … 40 ° C
• Bath L x P / Depth: 290 x 329/200 mm
• Volume of bath: 25 Litres
• Mains connection: 230V ~ 50/60Hz 1
• Current consumption max. : 2 A

Equipped with a Digital circulation head Pilot ONE with connexion with external Pt100 temperature probe
General & Temperature Control

• Temperature range: -20 … 200 ° C
• Temperature Stability: ± 0.02 ° C
• Temperature Display: Digital Display
• Message alert: optical, acoustical
• Regulator: Pilot ONE (E-grade basic)
• Protection class: III / FL
• Dimensions (W x H x D): 350 x 560 x 430 mm
• Net Weight: 28 kg

Heating power / cooling

• Heating capacity: 2 kilowatts
• Cooling : 20 | 0 | -10 | -20 ° C
• 0.25 | 0.2 | 0.12 | 0.05 kilowatts
• Machine Cooling: air-cooled
• Cooling Agent Level 1: R290

Circulation pump

• Power outlet max. : 27 l / min; 0.7 bars
• Suction power max. : 22 l / min; 0.4 bars

Connections

• RS232 digital interface, Ethernet, USB Device, USB Host
• Pt100
• Data Service
• Permissible ambient temperature: 5 … 40 ° C
• Bath L x P / Depth: 290 x152/200 mm
• Volume of bath: 15 Litres
• Mains connection: 230V ~ 50/60Hz 1
• Current consumption max. : 10+1.5 A

Equipped with a Digital circulation head Pilot ONE with connexion with external Pt100 temperature probe
General & Temperature Control

• Temperature range: -30 … 200 ° C
• Temperature Stability: ± 0.02 ° C
• Temperature Display: Digital Display
• Message alert: optical, acoustical
• Regulator: Pilot ONE (E-grade basic)
• Protection class: III / FL
• Dimensions (W x H x D): 350 x 555 x 615 mm
• Net Weight: 36 kg

Heating power / cooling

• Heating capacity: 2 kilowatts
• Cooling : 20 | 0 | -10 | -20 ° C
• 0.4 | 0.35 | 0.27 | 0.16 kilowatts
• Machine Cooling: air-cooled
• Cooling Agent Level 1: R290

Circulation pump

• Power outlet max. : 27 l / min; 0.7 bars
• Suction power max. : 25 l / min; 0.4 bars
• Connections
• RS232 digital interface, Ethernet, USB Device, USB Host
• Pt100
• Data Service
• Permissible ambient temperature: 5 … 40 ° C
• Bath L x P / Depth: 290 x 329/200 mm
• Volume of bath: 25 Litres
• Mains connection: 230V ~ 50/60Hz 1
• Current consumption max. : 2 A
