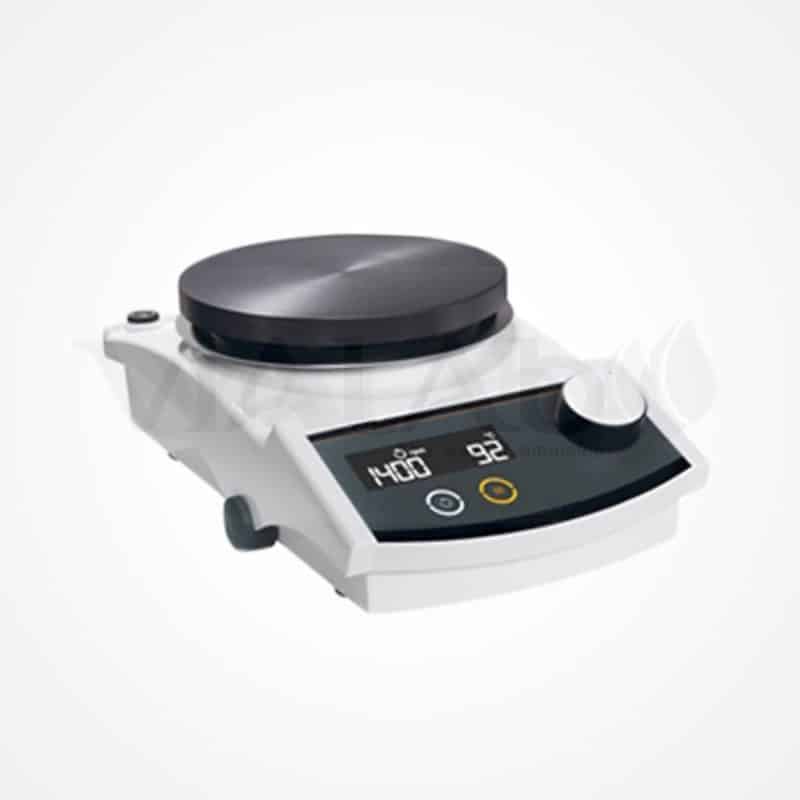

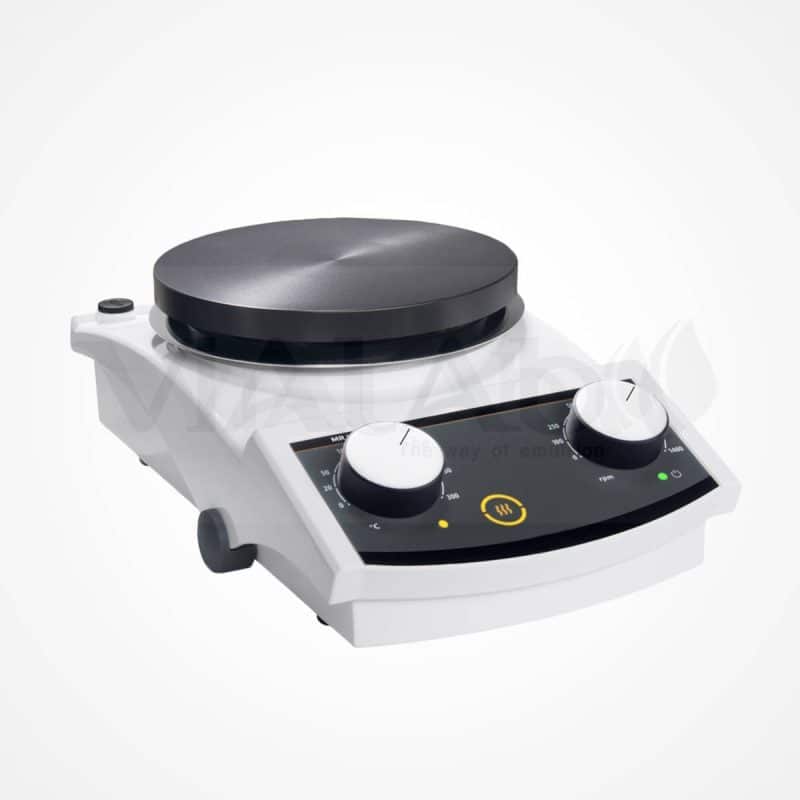

Magnetic Stirrers

• Rotation speed range 100…1,400 rpm
• Speed accuracy ±2 %
• Max. stirring capacity (H2O) 20 L

• Hotplate temperature 20…300°C
• Heating power 800 W
• Accuracy temperature setting ±5°C
• Temperature accuracy with external temp. sensor ±1 °C
• Safety circuit hotplate 25°C over hotplate temperature
• Plate diameter 145 mm
• Plate material Kera-Disk® (Silumin with ceramic coating)
• Sensor breakage protection with Pt 1000
• Residual heat indicator

• Smooth start

• Analog interface
• Protection class DIN EN 60529 IP 32

• Control interface and digital and analog display
• Better temperature accuracy

• Reduced heating time

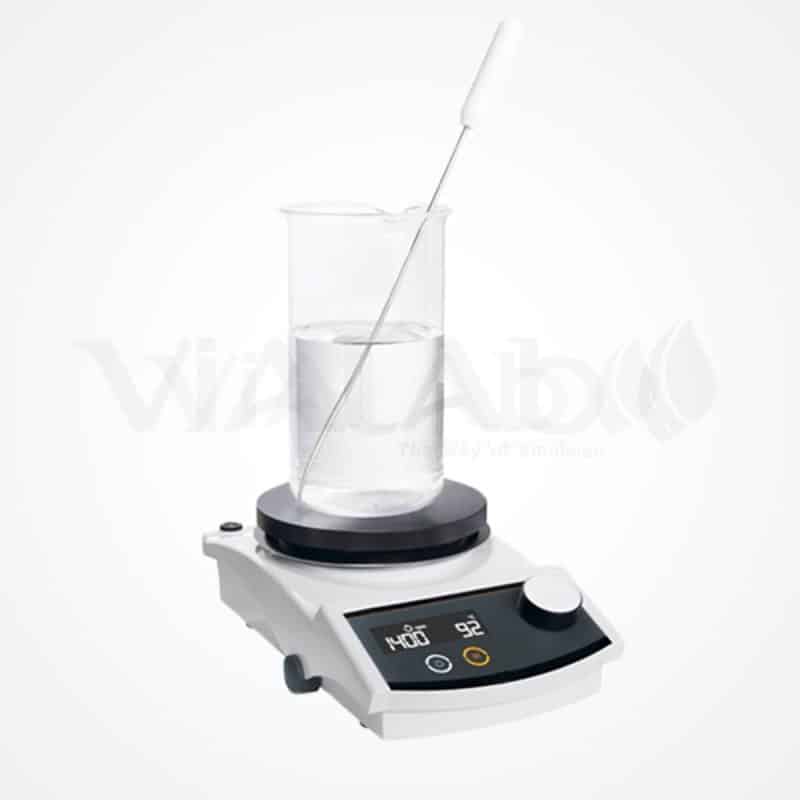

• Ideal for coupling an optional PT1000 probe

• Suitable for standard laboratory applications

Specifications

• Rotation speed range 100…1,400 rpm
• Speed accuracy ±2 %
• Max. stirring capacity (H2O) 20 L

• Hotplate temperature 20…300°C
• Heating power 800 W
• Accuracy temperature setting ±5°C
• Temperature accuracy with external temp. sensor ±1 °C
• Safety circuit hotplate 25°C over hotplate temperature
• Plate diameter 145 mm
• Plate material Kera-Disk® (Silumin with ceramic coating)
• Sensor breakage protection with Pt 1000
• Residual heat indicator

• Smooth start

• Analog interface
• Protection class DIN EN 60529 IP 32

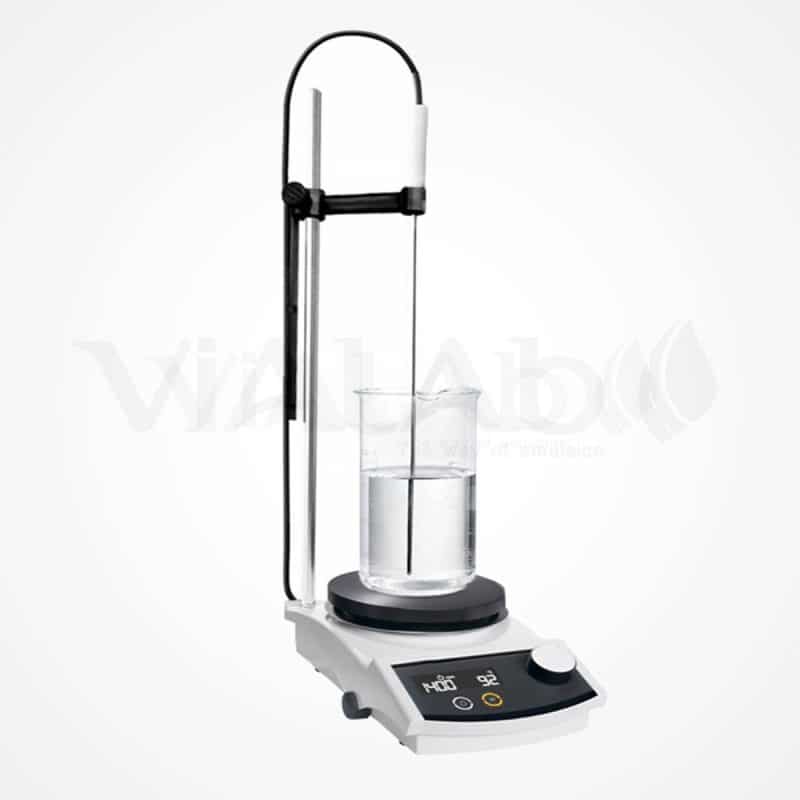

• A PT1000 probe will allow high precision regulation directly in the product +/- 0.2 ° C.

• Monitoring and control possible with software – include (Ramping)
• Communication port RS232
• Control interface and digital and analog display
• Better temperature accuracy

• Reduced heating time

• Ideal for coupling an optional PT1000 probe

• Suitable for standard laboratory applications

Specifications

• Rotation speed range 100…1,400 rpm
• Speed accuracy ±2 %
• Max. stirring capacity (H2O) 20 L

• Hotplate temperature 20…300°C
• Heating power 800 W
• Accuracy temperature setting ±5°C
• Temperature accuracy with external temp. sensor ±1 °C
• Safety circuit hotplate 25°C over hotplate temperature
• Plate diameter 145 mm
• Plate material Kera-Disk® (Silumin with ceramic coating)
• Sensor breakage protection with Pt 1000
• Residual heat indicator

• Smooth start

• Analog interface
• Protection class DIN EN 60529 IP 32
• A PT1000 probe will allow high precision regulation directly in the product +/- 0.2 ° C.

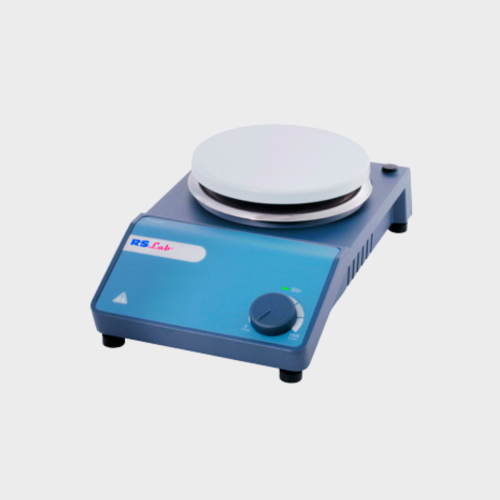

• Non-heating magnetic stirrer with ceramic coating
• Ceramic coated stainless steel plate
• High magnetic adhesion

• Stirring speed from 0 to 1500 rpm

• Max. agitation: 20 L

• Diameter of the tray: 135 mm

• Charcoal-free motor for long life

• Dimensions: 260x160x85 mm

• Weight: 2.8 kg

• Power: 30 W

• Stainless steel plate

• High magnetic adhesion

• Ambient temperature at 350 ° C

• Safety circuit: automatic shutdown of the heater when the temperature exceeds 350 ° C

• Stirring speed from 0 to 1500 rpm

• Max. agitation: 20 L

• Tray Ø135 mm

• Dimensions: 260x160x85 mm

• Weight: 2.8 kg
  Power: 500 W
• Puissance : 500 W

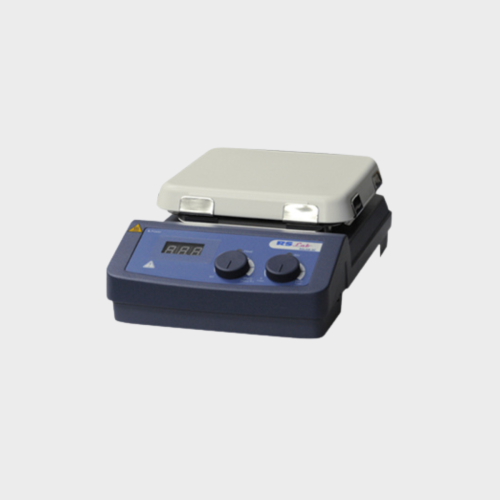

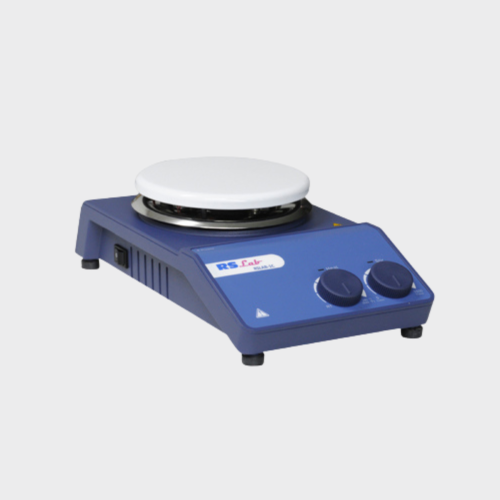

• Ceramic hob

• Security system and permanent temperature control (model 3C)

• Temperature: from ambient to + 550 ° C (model 3C)

• Safety circuit, automatic heating off when the temperature exceeds 580 ° C

• Control and microprocessor technology that guarantees maximum precision of
• Agitation speed, temperature (model 3C) and safety temperature

• Heating indicator: when the tray reaches more than 50 ° C, goes out when the
• Temperature drops below 50 ° C.

• Real-time LED digital display: setpoint temperature and speed values are Displayed as well as actual operating values

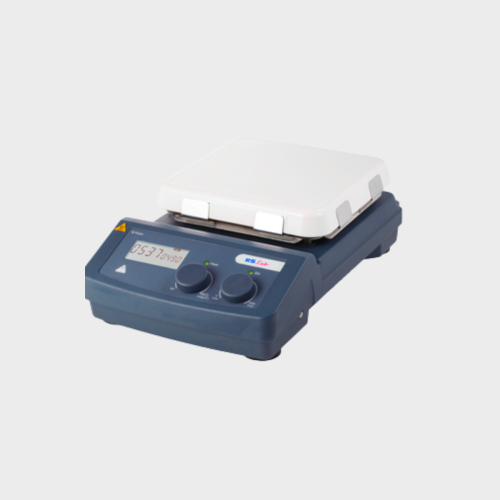

• Ceramic hob

• Safety and permanent temperature control system (model 4C)

• Temperature: from room to + 550 ° C (model 4C)

• Safety circuit, automatic shutdown of heating when the temperature exceeds 580 ° C (model 4C)

• Microprocessor control and technology that guarantees maximum precision of stirring speed, temperature (model 4C) and safety temperature

• Heating indicator: when the tray reaches more than 50 ° C, an alert indicates on the “HOT” screen, and goes out when the temperature drops below 50 ° C.

• Real-time LCD display: Setpoint temperature and speed values are displayed as well as actual operating values

• RS232 output for control of the device by PC via its adapted program PC-
• Software (free program on request)

• The 4C model is supplied with rods and mounting nuts for the Pt1000 probe itself, which allows a temperature stability of +/- 0.2 ° C

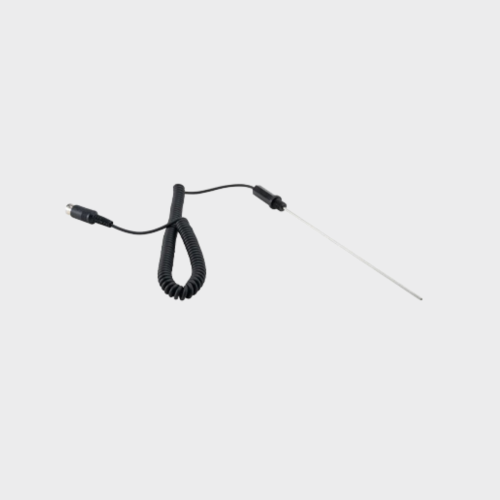

• PT1000 probe for magnetic heating stirrer
• Connection cord
• Length 230 mm
• Adaptable on models 3C and 4C
