Water content of bitumen emulsions | Moisture Analyser


This standard test method consists of determining the proportion of water contained in a representative bitumen emulsion sample using a moisture balance analyzer or desiccant scale. The emulsion sample is heated to between 110 and 150°C, allowing the water to evaporate and therefore the amount of binder remaining to be determined. The test is considered as an alternative to the reference methods EN 1428 and EN 1431 for emulsions of pure road bitumen, without flux, with flux of plant origin or up to a mass content of 1.5% of mineral flux. The user must first prove his reliability internally, compared to the benchmark tests. Its advantages are manifold:

  • Speed and precision (10 to 30 minutes per test),
  • No toxic solvent handled,
  • 4 g of emulsion is sufficient.

EN 16849 | ASTM D7404

Products

Vialab offers you a complete range of desiccant scales that meet all the requirements for precision, productivity, longevity and contained budgets. The innovative range of SARTORIUS desiccant scales, and the commissioning or maintenance services with metrological control (Metropolitan France) will satisfy the most demanding laboratories.

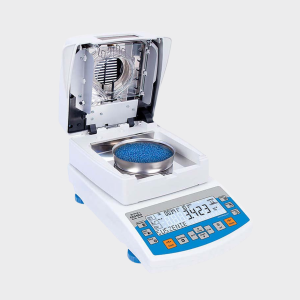

MOISTURE ANALYZER | RADWAG | MA50R | 50g / 1mg

Specifications

  • Range / Precision: 50g / 1mg
  • Heating: 450W – Infrared 160 ° C (250°C optional)
  • Screen: 5″ LCD – Keypad
  • Repeatability: 0.01% (10g) to 0.05% (2g)
  • Drying profiles: 4 (Standard, fast, configurable, delicate)
  • Stop mode: 4 (Auto, semi-auto, manual, duration)
  • Major functions: Database by product / operator, operator guidance
  • Connections: USB, RS232
  • Power supply: 110V / 220

Options: F007.130.6515 – Max. brought to 250°C (Halogen)

F007.130.6532

Excellent Value

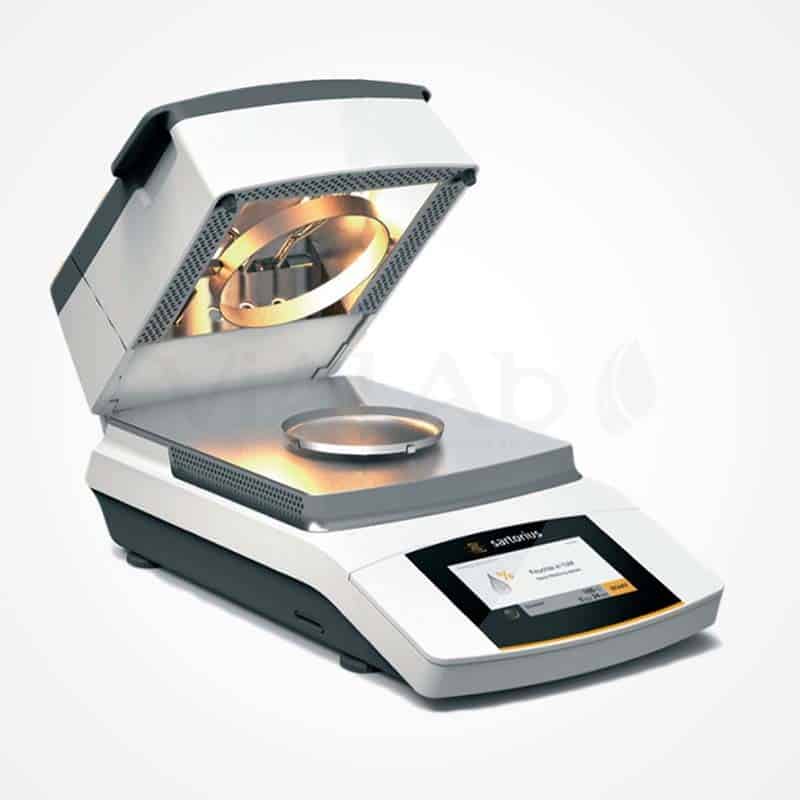

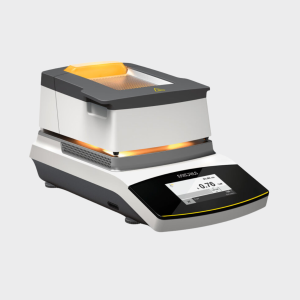

MOISTURE ANALYZER | SARTORIUS | MA37 | 70g / 1mg

Specifications

  • Range / Accuracy: 70g / 1mg
  • Heating: Infrared 200°C (standby from 50 to 120°C)
  • Screen: Touch LCD
  • Repeatability: 0.05% (5g) to 0.2% (1g)
  • Drying profiles: 3 (Standard, delicate, MA35)
  • Stop mode: 4 (Auto, semi-auto, manual, duration)
  • Major functions: Quick drying – Very accessible room – Dismountable (easy cleaning) – User-friendly interface – Precision – Status indicator
  • Connections: Mini-USB, direct data transfer to Microsoft® software
  • Power supply: 110V / 220V automatic detection

F063.130.0037

The essential for routine work

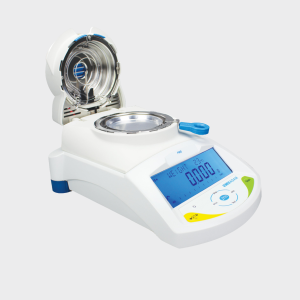

Moisture Analyser | ADAM | 50 g / 1 mg

Specifications

  • Reading range/accuracy: 50 g / 1 mg
  • Heating: 450W – Infrared 160°C
  • Display: LCD – Keypad
  • Drying profiles: 7
  • Audible overload alarm
  • Key functions: Database by product/operator, operator guidance
  • Connections: USB, RS232
  • Power supply : 220V

Available options :

  • Temperature calibration kit
  • Data acquisition program

F685.130.6532

A successful model at a controlled price

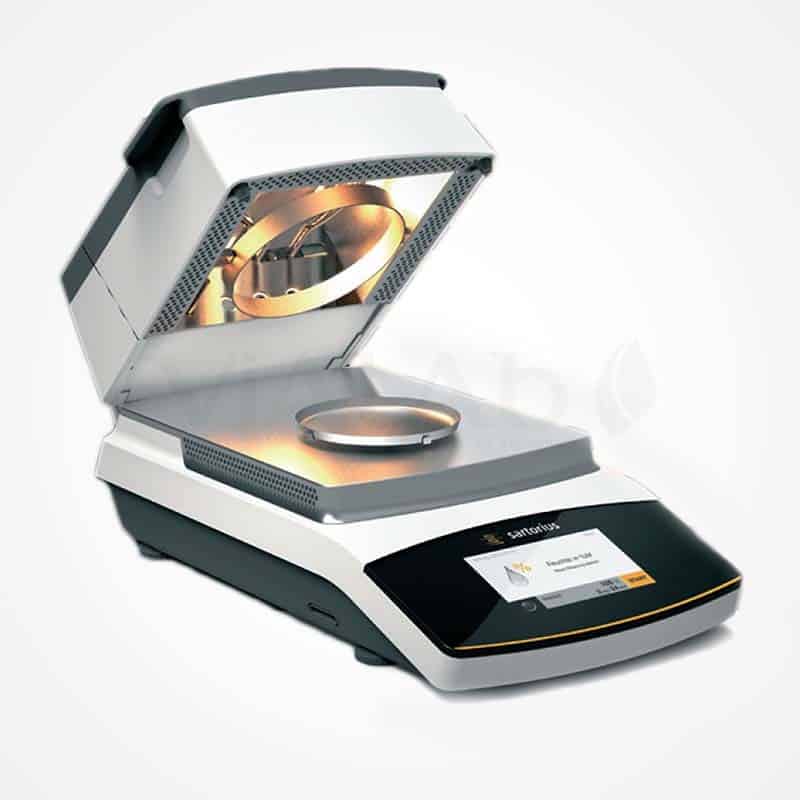

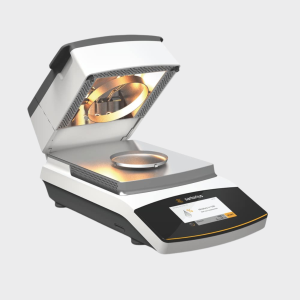

MOISTURE ANALYZER | SARTORIUS | MA160 | 200g / 1mg

Specifications

  • Range / accuracy: 200g / 1mg
  • Heating: AURI-600W Infrared 200°C (standby from 50 to 120°C)
  • Screen: Touch LCD
  • Repeatability: 0.05% (5g) to 0.2% (1g)
  • Drying profiles: 3 (Standard, delicate, MA35)
  • Stop mode: 4 (Auto, semi-auto, manual, duration)
  • Major functions: Quick drying (up to 30% lower) – Very accessible room –
  • Dismountable (easy cleaning) – User-friendly interface – Precision – Method / results assistant (SD) – Status indicator
  • Connections: Mini-USB, direct data transfer to Microsoft® software, SD card
  • Power supply: 110V / 220V automatic detection

F063.130.0160

A high end product for all requirements

Consumables & Accessories

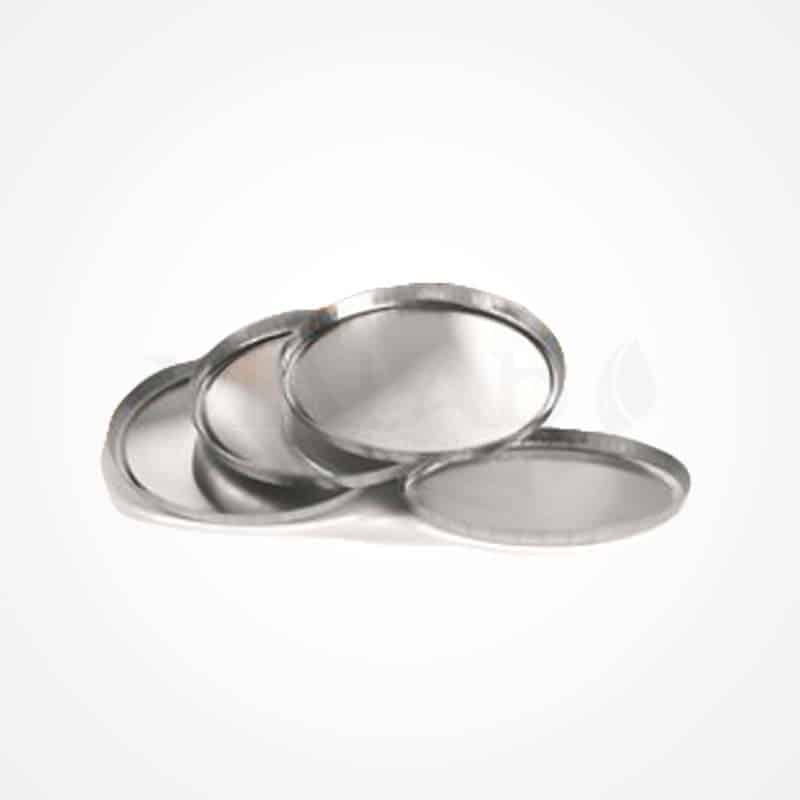

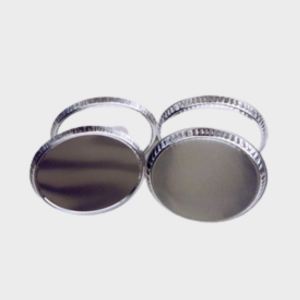

DISPOSABLE ALUMINUM CUPS

Specifications

  • For Radwag Analyzer
  • Useful Ø 90 mm
  • Pack of 50

F007.130.5000

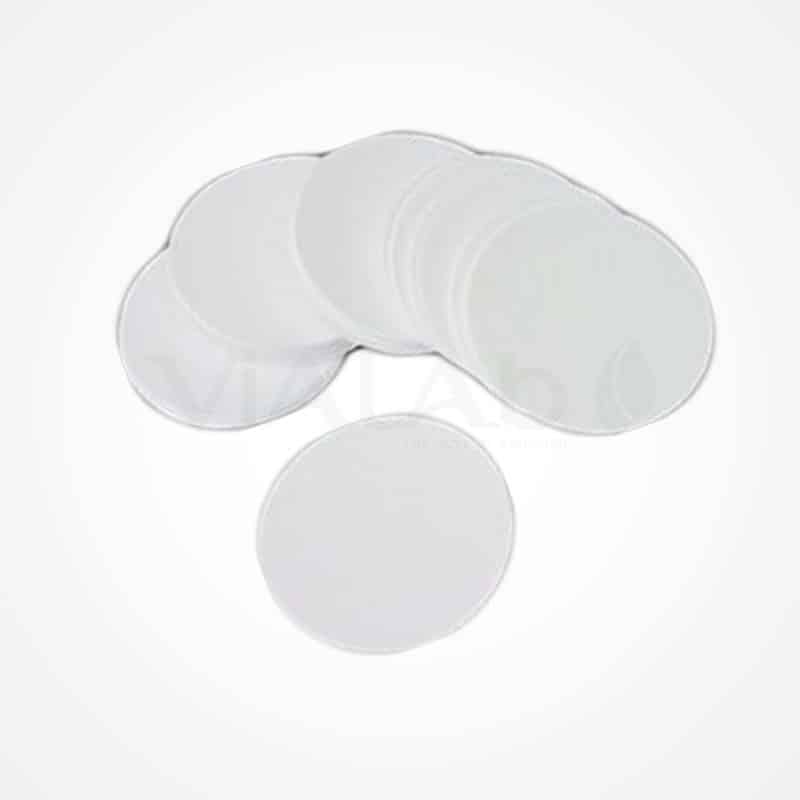

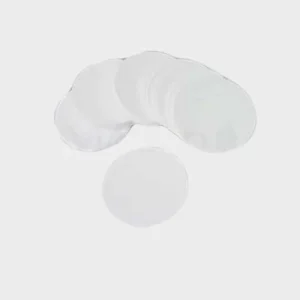

DESICCATION FILTERS

Specifications

  • Ø 90 mm
  • Fiberglass
  • Thickness : 0.3 mm
  • Pack of 100 filters

F039.130.1090

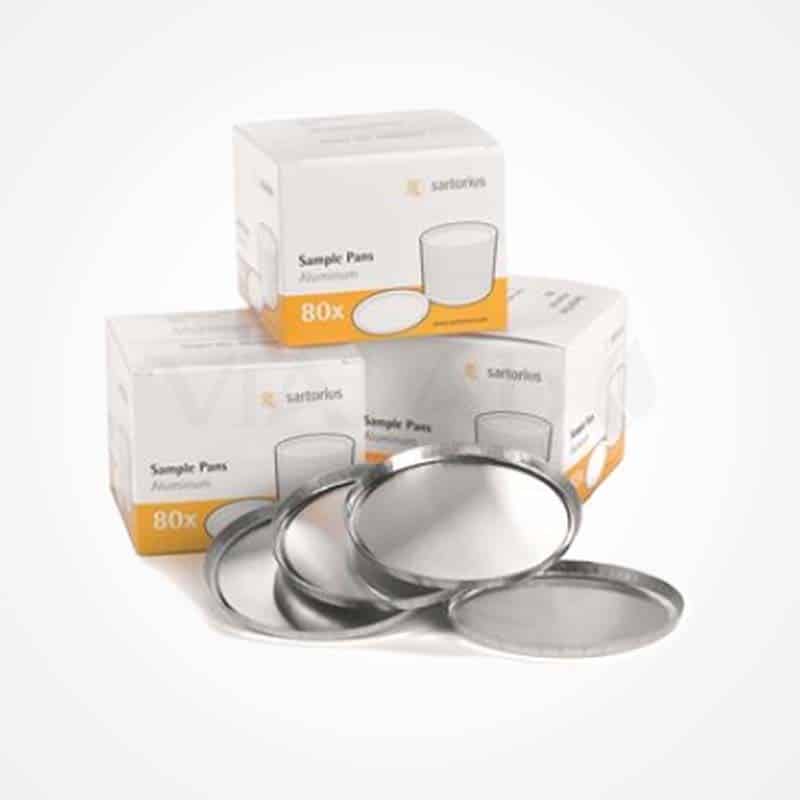

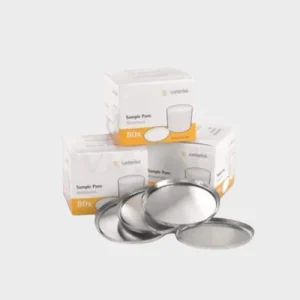

DISPOSABLE ALUMINUM CUPS

Specifications

  • For Sartorius analyzer
  • Useful Ø 94 mm
  • Pack of 80

F063.130.6942

DESICCATION FILTERS

Specifications

  • Ø 90 mm
  • Fiberglass
  • Medium Quality
  • Pack of 200 filters

F063.130.6941

DISPOSABLE ALUMINUM CUPS

Specifications

  • For Adam machines
  • Diameter: 90 mm
  • Box of 250

F685.130.5000

DESSICCATION CALIBRATION KIT

Specifications

RADWAG MA50R and MA3Y Desiccant Drying Process Control Kit

  • Sodium chloride solution (250 ml; NaCl 10 ± 0.5%)
  • 50 Fiberglass filters
  • UU pipette

F007.130.6530

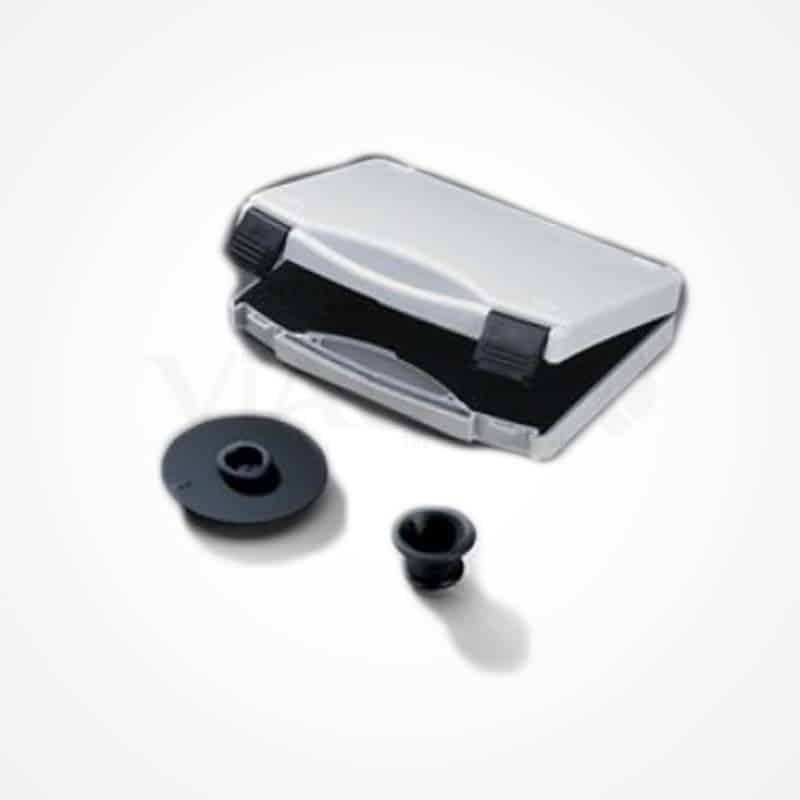

TEMPERATURE ADJUSTMENT KIT | MA37/MA160

Specifications

Allows the control of the temperature accuracy at the level of the sample and its adjustment if necessary.

  • Temperature adjustment disc
  • Disc holder
  • Factory calibration certificate
  • Storage box

F063.130.0130

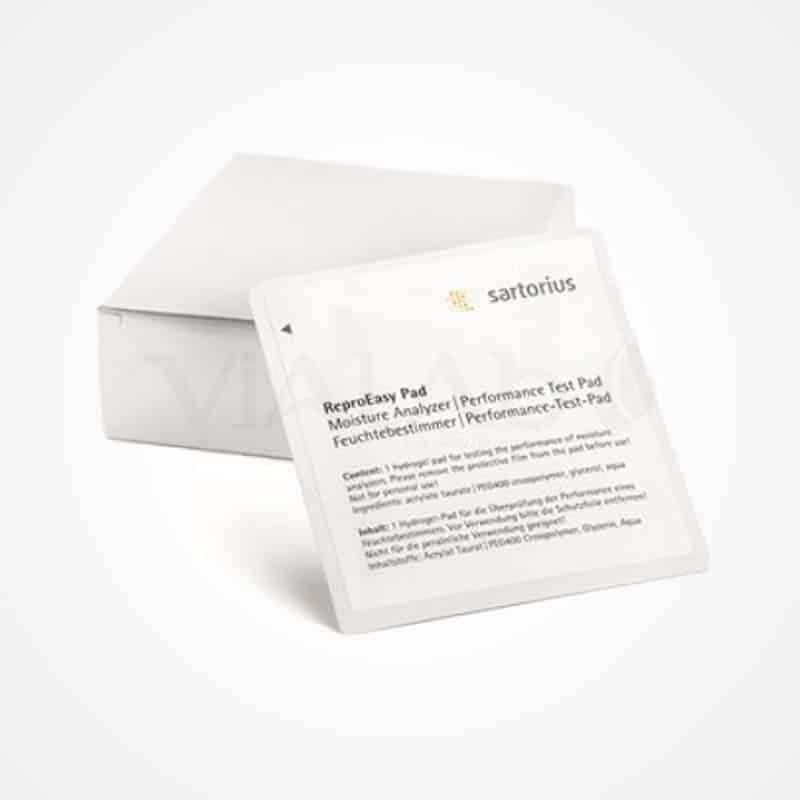

REPROEASY PERFORMANCE TEST | x10 | x20

Specifications

Performance test pods
Used with the “Performance Test” mode

  • Heating unit check
  • Weighing unit check
  • Verification of results
  • Available packaging :10 et 20 pods

F063.130.0110 et F063.130.0120

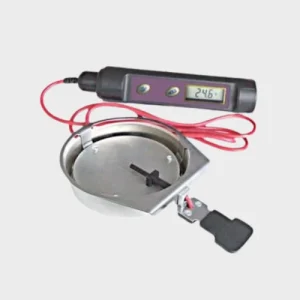

Temperature adjustment set

Specifications

Allows controlling accuracy of temperature and adjustment of neede (MA37/MA160)

  • Temperature adjustment disk
  • Disk holder
  • Factory calibration certificate
  • Carrying case

F007.130.6512

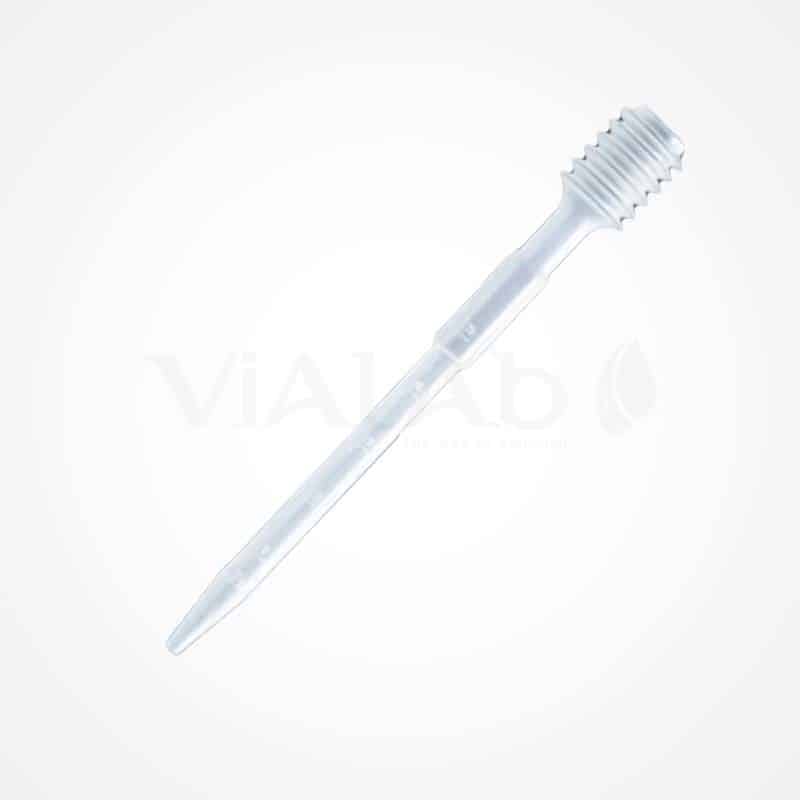

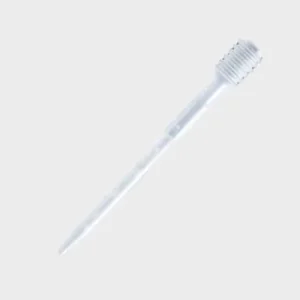

PIPETTE DROPPER | 5 ml

Specifications

To take and place the emulsion (4 g) on the tray of desiccant scales

  • 5 ml bellows model
  • Low density polyethylene
  • Pack of 100

F039.420.9993

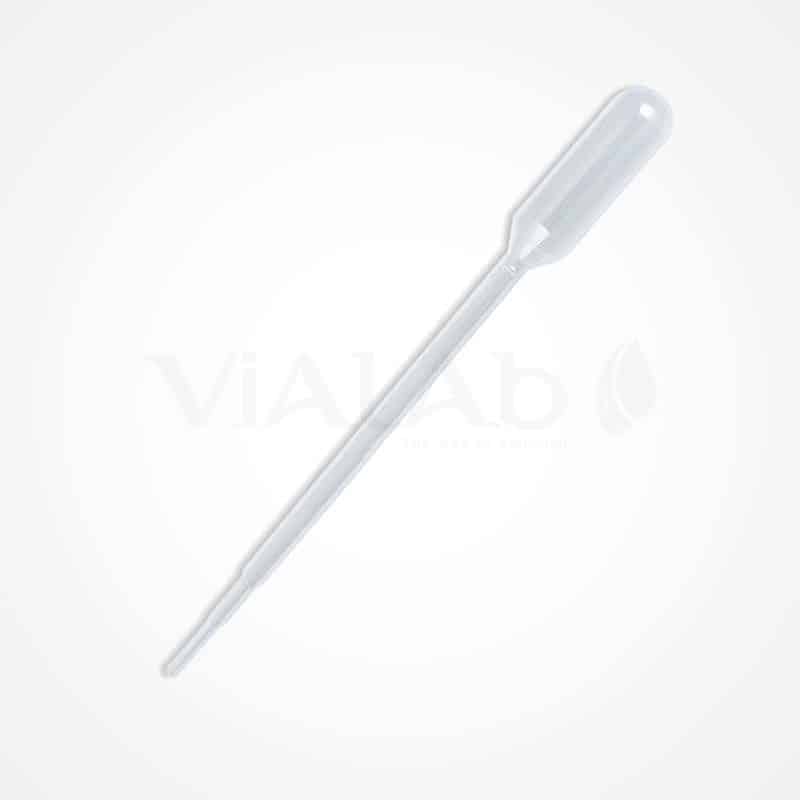

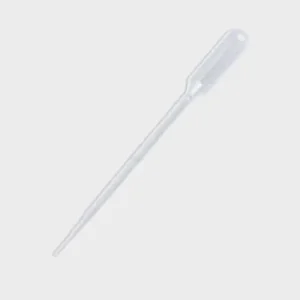

PIPETTE DROPPER | 1.8 ml

Specifications

To take and place the emulsion (4 g) on the tray of desiccant scales

  • 1.8 ml model with integrated pear
  • Low density polyethylene
  • Pack of 250

F039.420.9693
