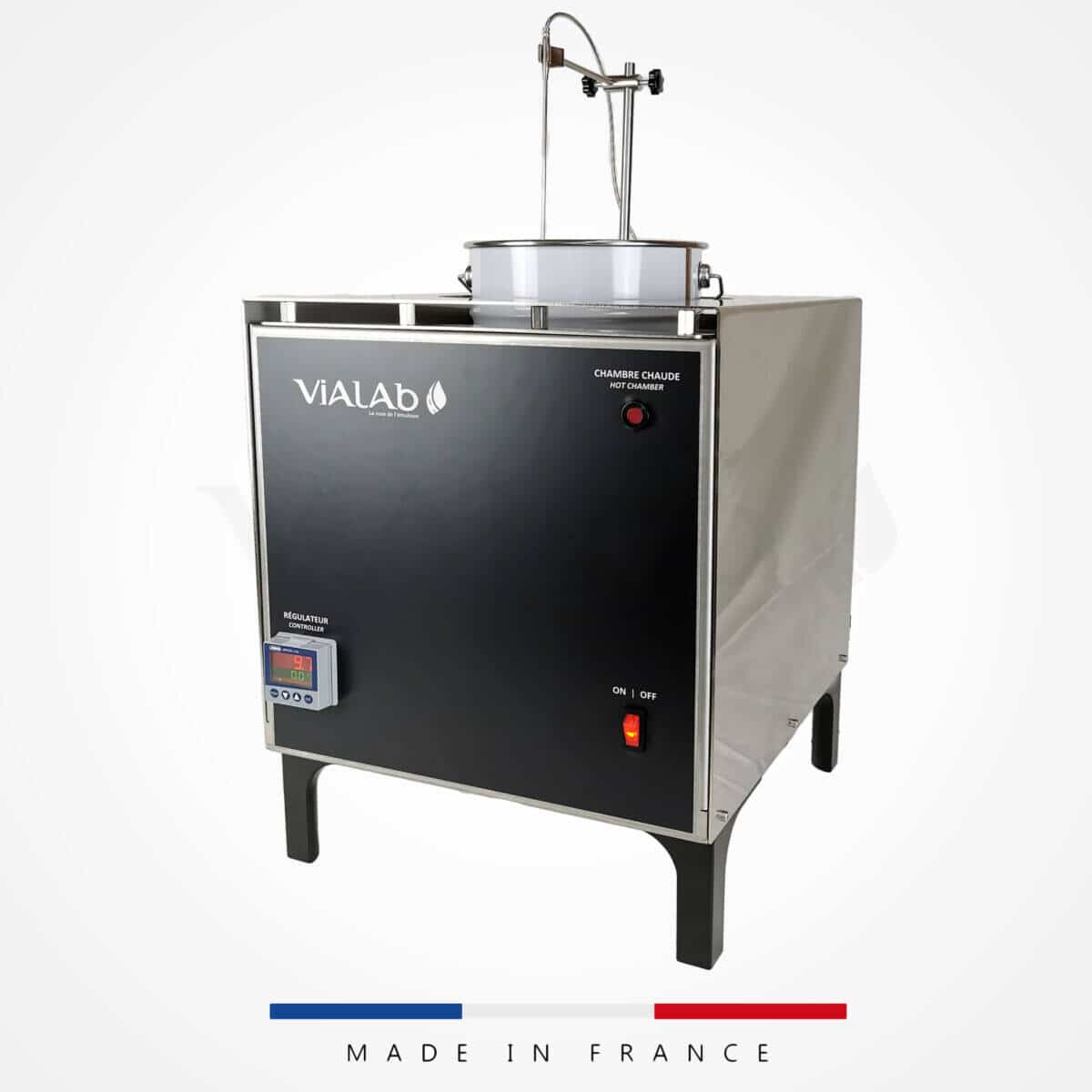

High-viscosity Product Heater | 3 Liters

High-viscosity Product Heater | 3 Liters

In the laboratory, heating products can be challenges due to their physical properties. This is the case of bitumen and viscous products of high heat capacity. To handle them, operators need suitable divices in order to avoid any degradation and excessive heating.
The High Viscosity Product Heater from VIALAB,originally designed for the preparation of polymer-modified bitumen in the laboratory , is a very effective way to manage the heating of any viscous substance and to maintain a precise the temperature over time. The device allows products to be efficiently heated while respecting their thermal sensitivity thanks to an efficient regulation and a uniform distribution of the heating power over the entire contact surface.
Bitumen, viscous solids (fatty acids, resins, waxes) and all products with low thermal conductivity are therefore easily heated and maintained at a constant temperature, all of this in full safety and while saving energy compared to a standard oven.

This product is entirely designed by VIALAB and 100% produced in France.

NEW : The Adaptator 1L allows to adapt the heater in order to handle smaller buckets of 1 L capacity.

HIGH-VISCOSITY PRODUCT HEATER | 3 L

DEMONSTRATION VIDEO

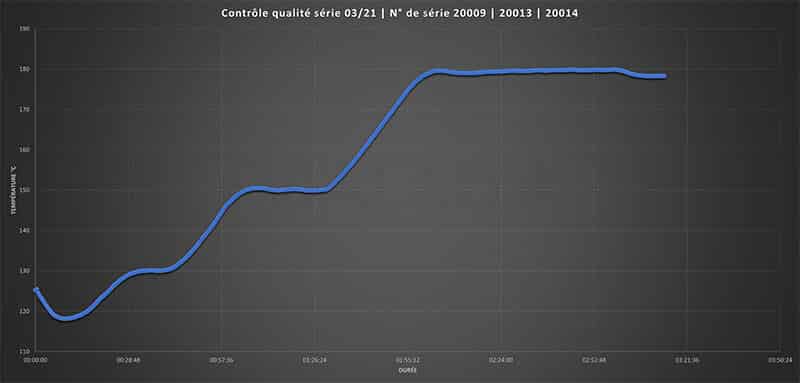

REGULATION PERFORMANCE

Courbe de Régulation

F022.108.0010

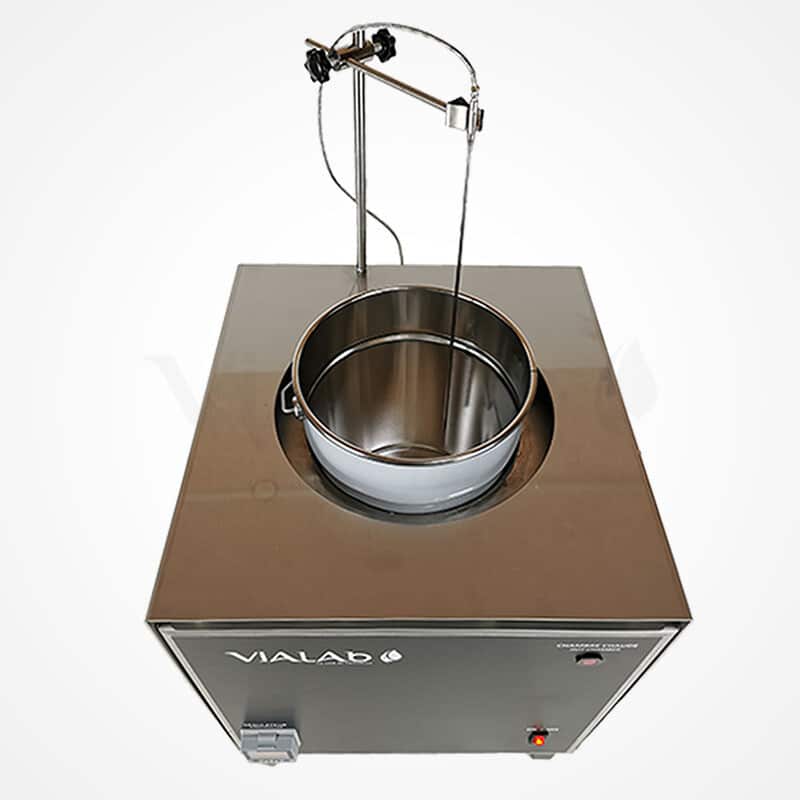

Bitumen heater

Use & Benefits

For heating or maintaining temperature from 50 to 200°C (± 0.5°C after stabilisation), 5-Liter metal buckets of Ø 180mm (optimal product volume of 3 Liters, but usable from 1.5 to 4 L).

  • Robust and durable device
  • Designed for heating or temperature maintenance of high-viscosity products from 50 to 200°C
  • From 130 to 150°C in 25 min
  • From 150 to 180°C in 35 min
  • Regulation accuracy of ± 0.5°C after stabilisation
  • 3L useful bitumen volume

Expertise from VIALAB

The high-viscosity product heater | 3L equips our laboratories. It makes it possible to heat or maintain bitumen at temperature for carrying out modification tests with polymers, plastomers and / or elastomers via a high speed dispersor.

Thanks to its performances, this device will help you mastering your formulation step of PMB’s and then to improve the quality of your products, in the road construction sector as well as in the waterproofing industry.

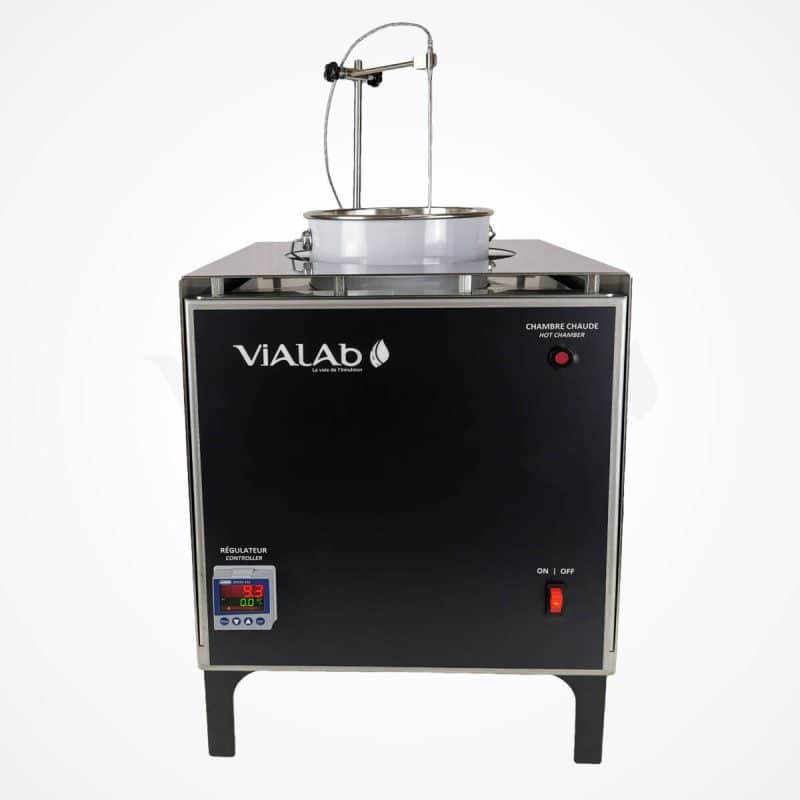

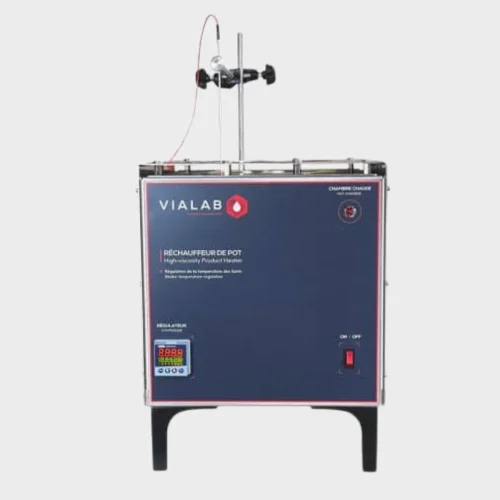

Bitumen Heater VIALAB

Ideal for modifying bitumens with polymers using a high speed disperser.

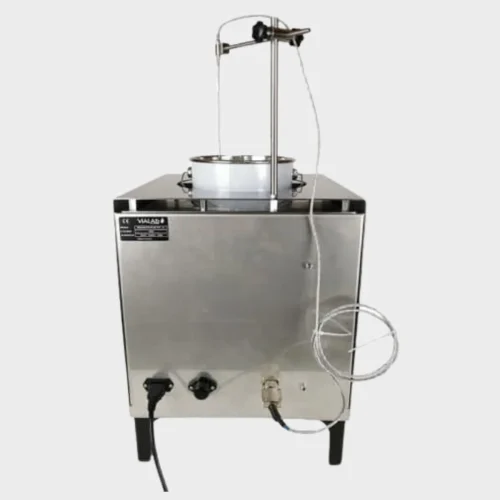

Bitumen heater bottom

Specifications

  • Heated test chamber Ø 184mm
  • 1.15 kW heating resistance collar
  • PID electronic temperature controller / display
  • External temperature probe PT100 Ø 3mm | Length 300mm
  • 304L stainless steel frame
  • Four feet for the passage of the stands
  • Integrated probe holder
  • Safety against overheating
  • Hot parts indicator light via bi-metallic thermostat
  • 10A safety fuse
  • Dimensions: 37 * 45 * 60 (LxWxH; cm)
  • Power supply: 220/230V | 50/60Hz | 16A

Accessories & Options

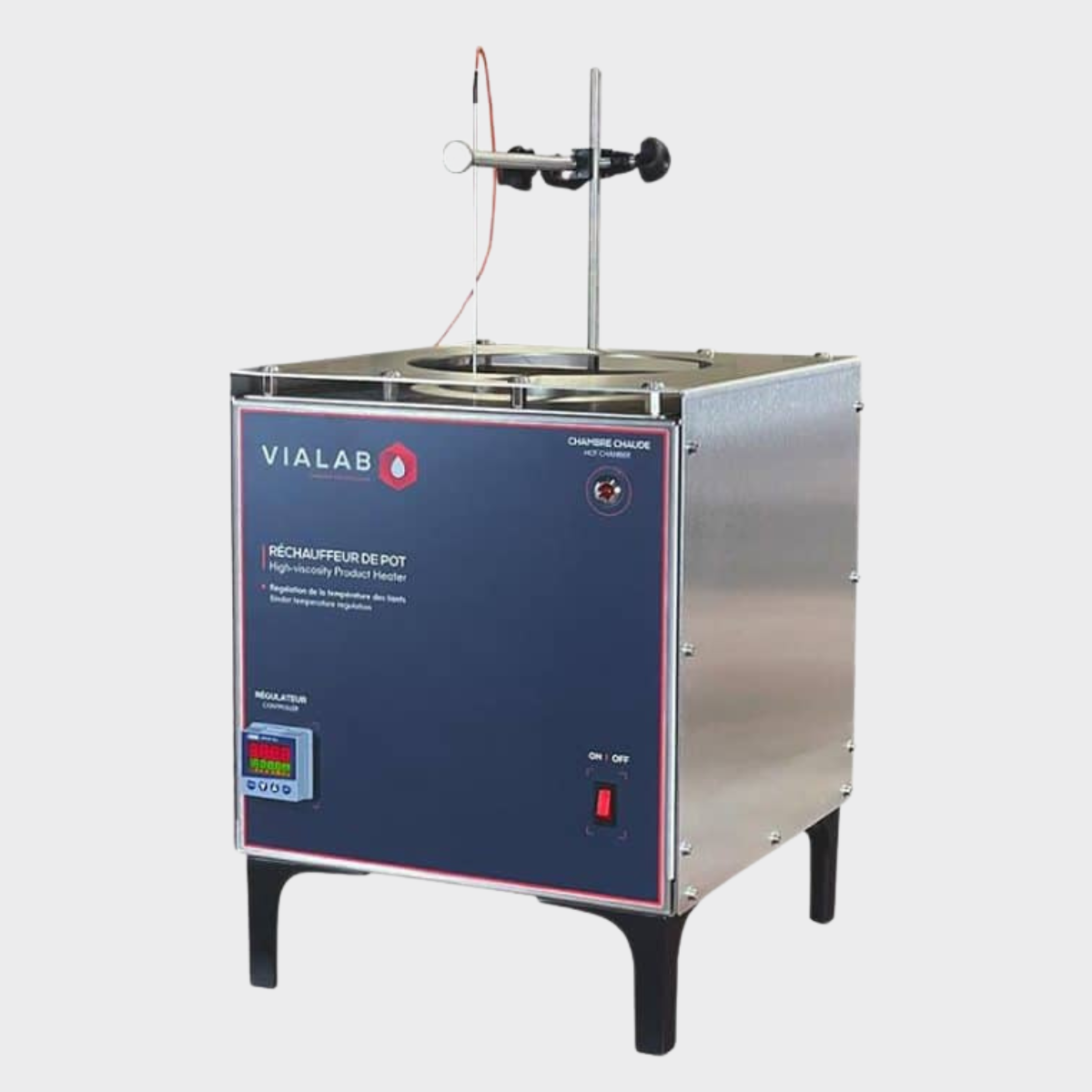

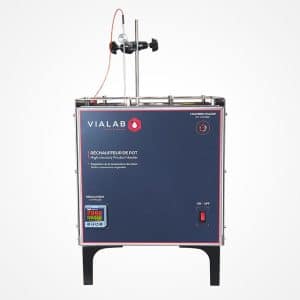

Réchauffeur de pot 1 L VIALAB

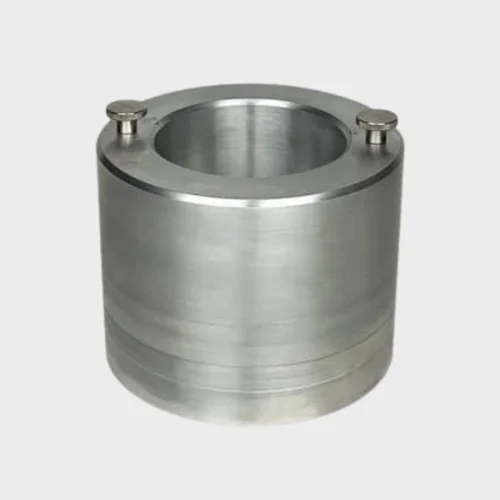

Adapter 1L

Specifications

Adapter to quickly switch between 3L and 1L capacities without any tool

  • Designed for 1L beakers (150 mm x ∅ 110 mm) and 1L steel containers (132 mm x ∅ 110 mm)
  • Aluminum alloy body optimized for thermal diffusion
  • Equipped with two knurled screws for easy handling

5980.00VB0318

Consumables

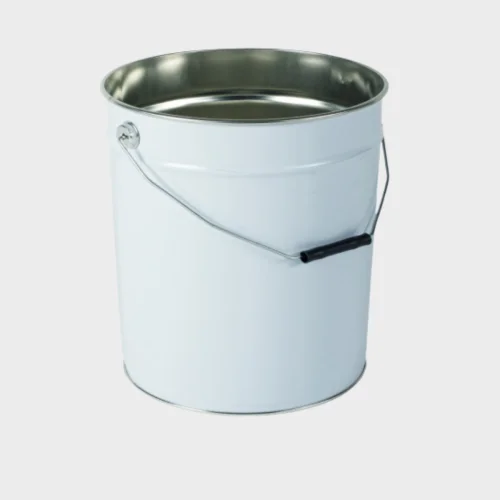

METALLIC BUCKETS | 5 Liters (x50)

Specifications

Ideal for collecting, storing / reheating and modifying bitumens

  • With cover and strapping to secure during storage or transport
  • Dimensions: Ø 180/168 H 235 mm
  • Sold by 50 units

F073.405.0012
