Complete Set

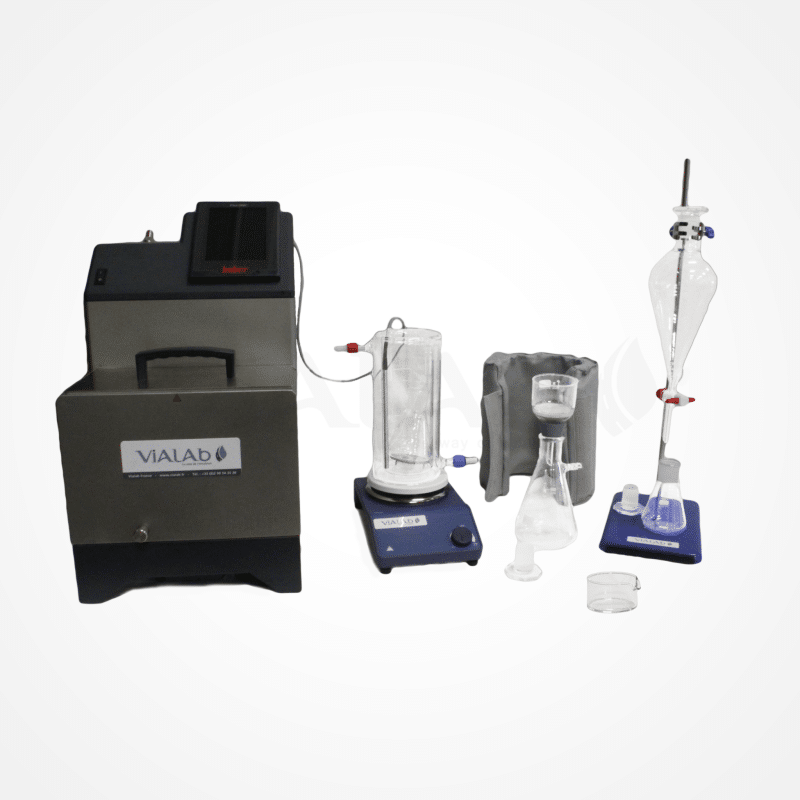

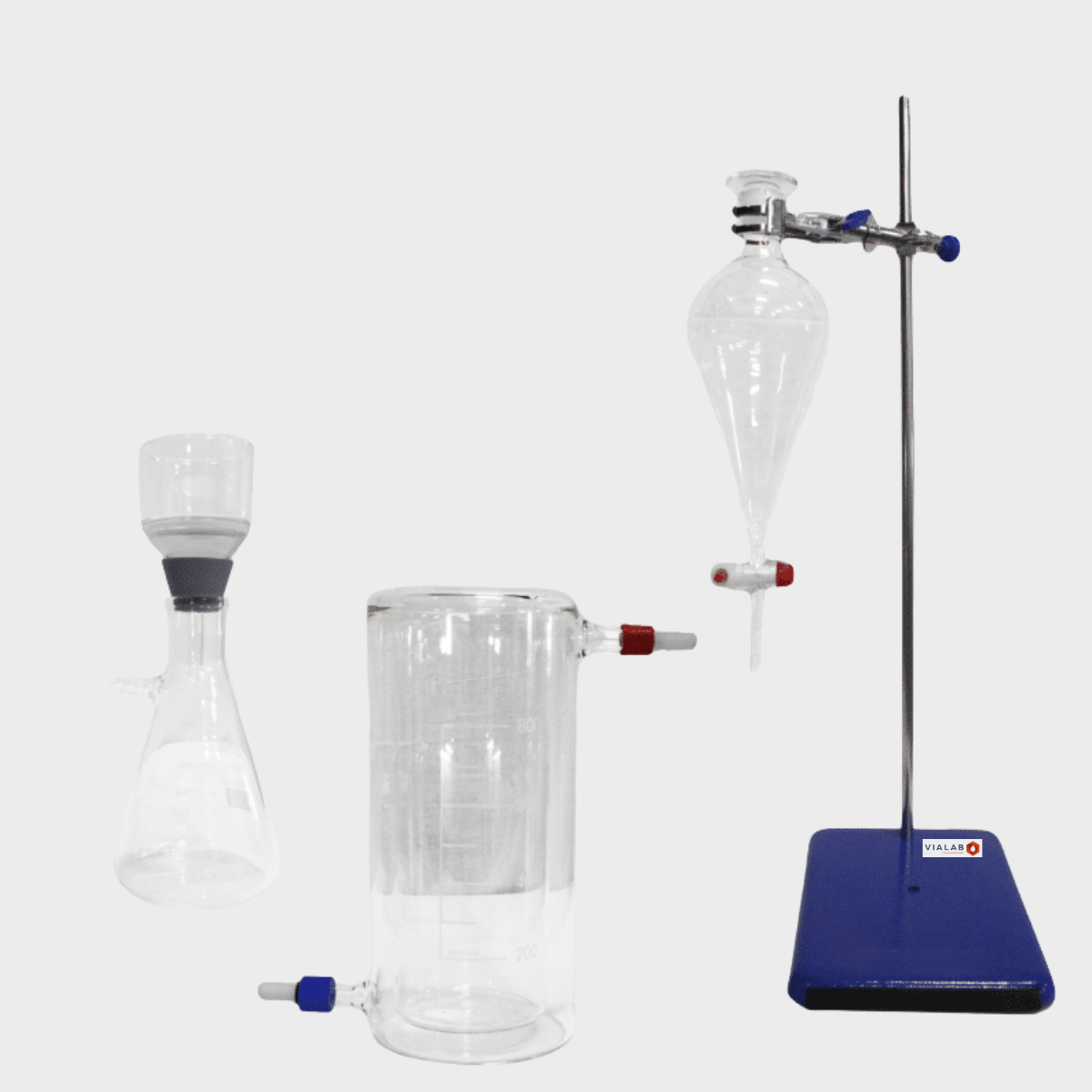

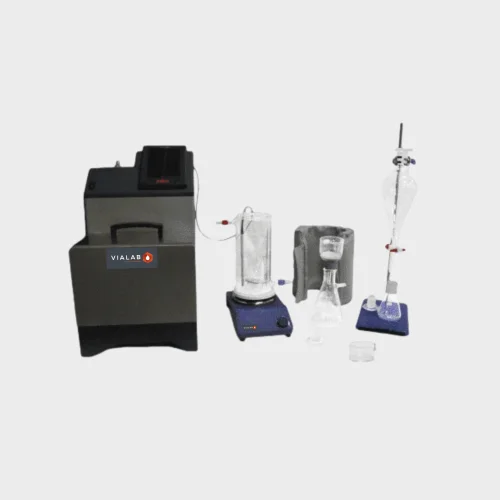

COMPLETE SET | PARAFFIN CONTENT
The standard EN 12606-2 describes a method for determining the paraffin content by extraction.
Complete set including the following products:
- 2 Erlenmeyers ground glass 29/32 | External Ø 70 mm
- Duran filter funnel | 125 ml P4-17D

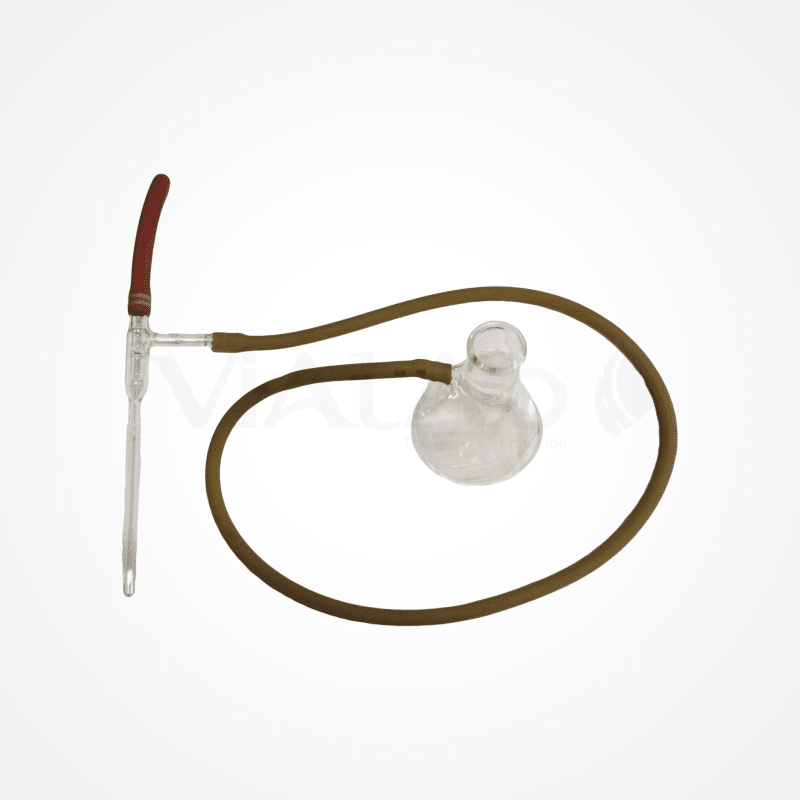

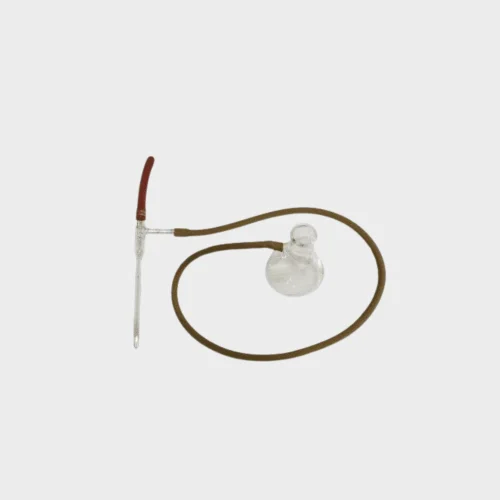

- Duran water pump with non-return valve
- 2 meters of rubber hose Ø 8 mm
- Pyrex filter flask with glass olive | 500 ml
- Guko EPDM seal Ø 44/27 mm Height 30 mm
- Conical separating funnel 500 ml with 4 mm PTFE stopcock and glass stopper
- Beak crystallizer (glass recipient) | 40 ml
- Thermostatic double walled beaker 1000 ml | Internal Ø 80 mm
- Custom Cryogel insulation
- Full stand
- Universal clamp with clamping nut to support the separating funnel
- Magnetic stirrer without heating high adhesion ceramic plate
- Stainless steel support for placing the Erlenmeyer flask in the thermostatically controlled beaker

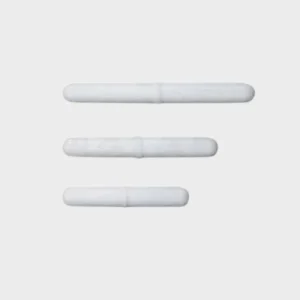

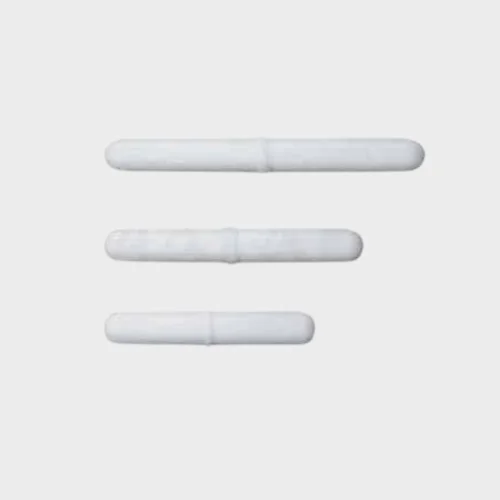

- Magnetic rod for stirring the liquid in the beaker
* Ministat Cryothermostat bath with accessories to be ordered separately
F044.145.2606
Products

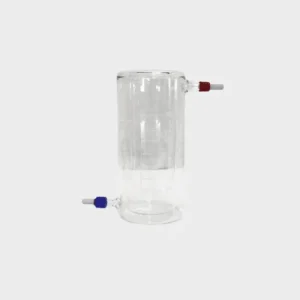

THERMOSTATIC BEAKER | 1000 ml
Specifications
- Double walled
- Volume 1000 ml
- Ø Internal 80 mm
F109.310.1025

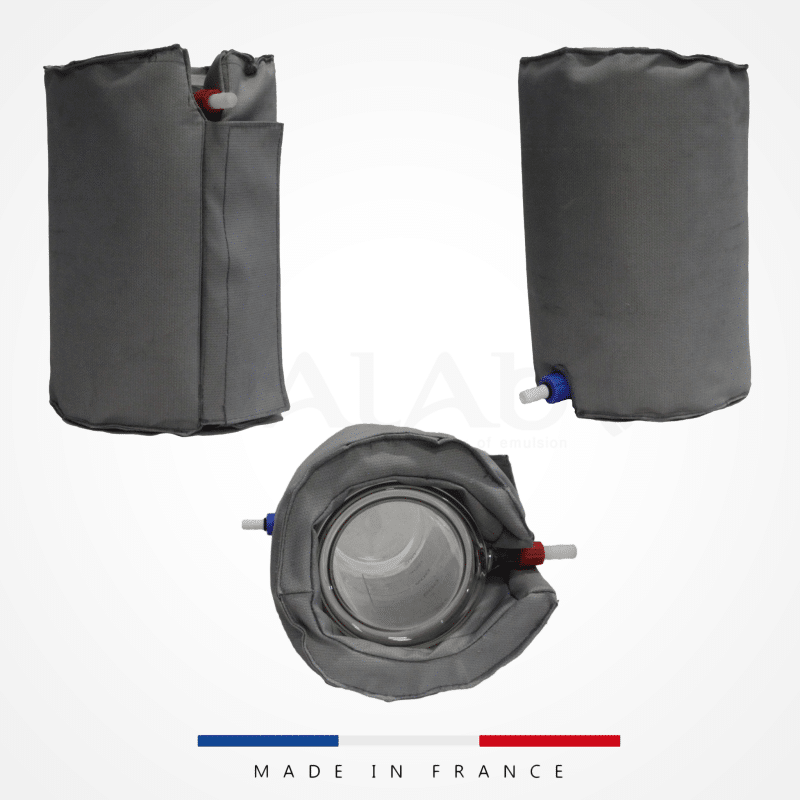

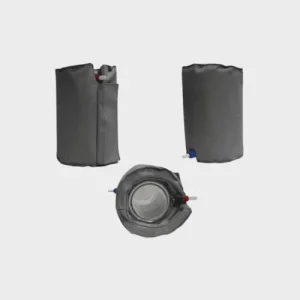

CRYOGEL INSULATION | 1000 ml
Specifications
- Insulation Cryogel
- For double walled beaker
- Volume 1000 ml
- Paraffin content
F168.310.C

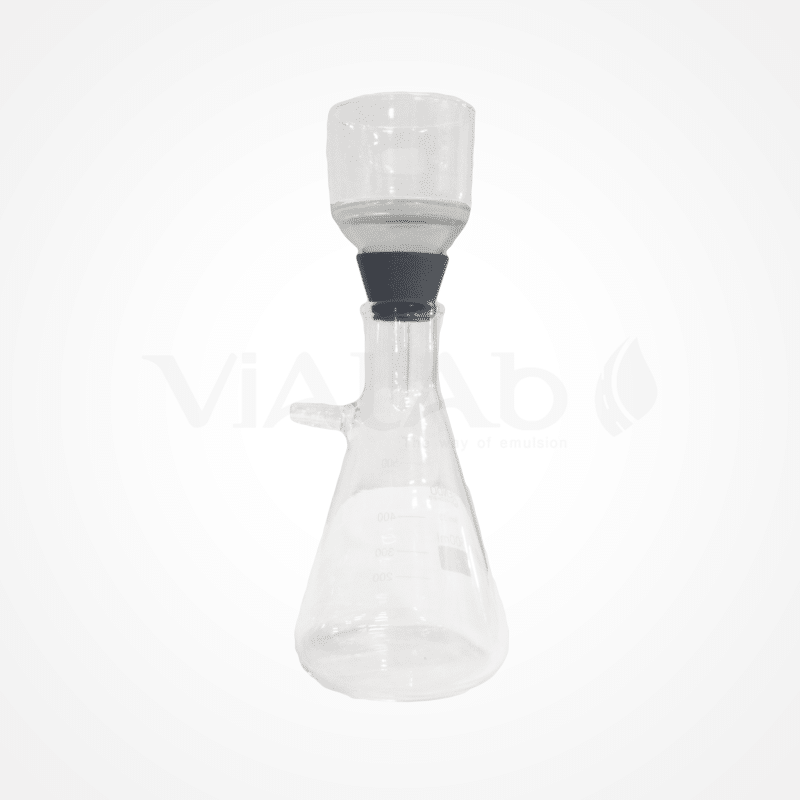

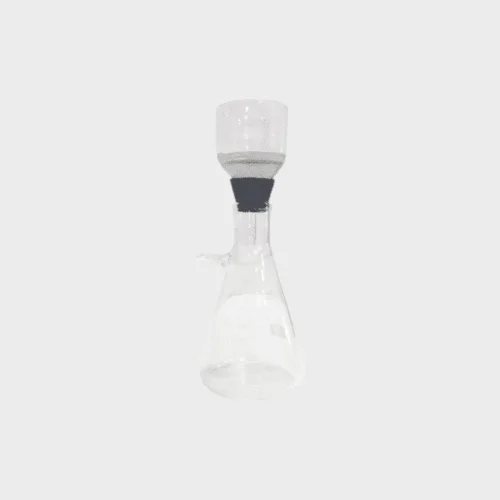

FILTER FLASK | 500 ml
Specifications
- Filter flask
- Volume 500 ml
- Borosilicate glass
- Welded glass olive
F109.360.1170
GUKO SEAL | Ø 44/27 mm
Specifications
- GUKO Seal
- EPDM
- Ø Superior 44 mm
- Ø Inferior 27 mm
- Height 30 mm
F109.360.2705

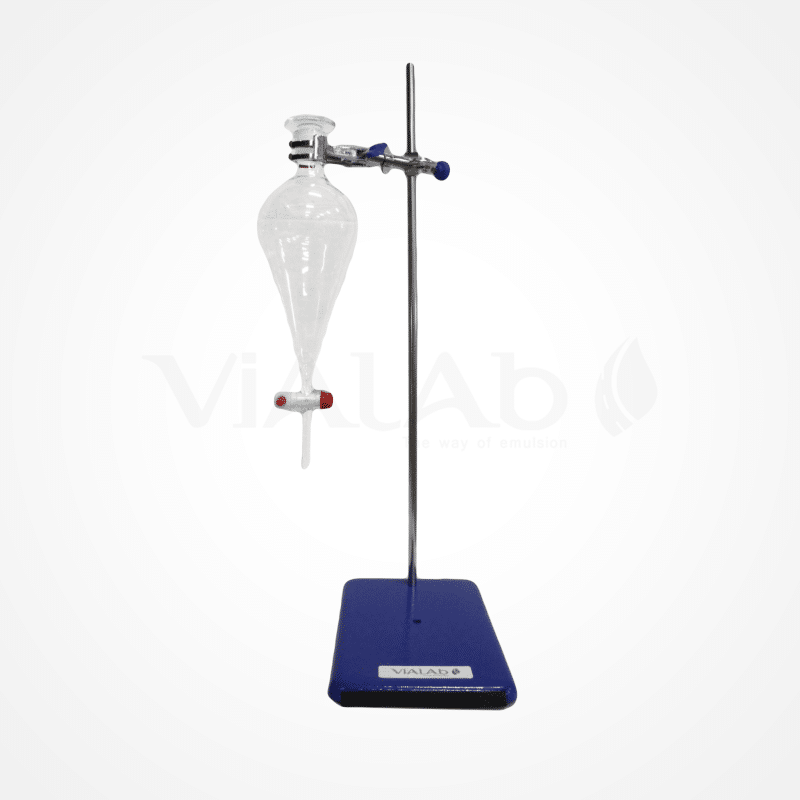

DECANTATION FLASK | 500 ml
Specifications
- Conical decantation flask
- Volume 500 ml
- PTFE faucet Ø 4 mm
- Glass ground cap
F109.321.4158

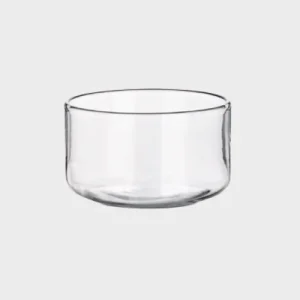

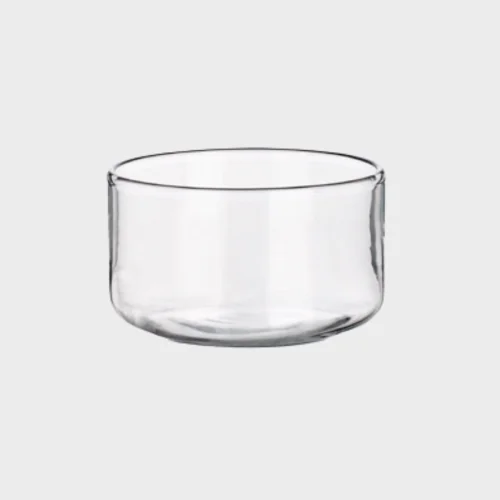

GLASS RECIPIENT | 40 ml
Specifications
- Capacity : 40 ml
- Diameter : 50 mm
- Height : 30 mm
F109.330.3209

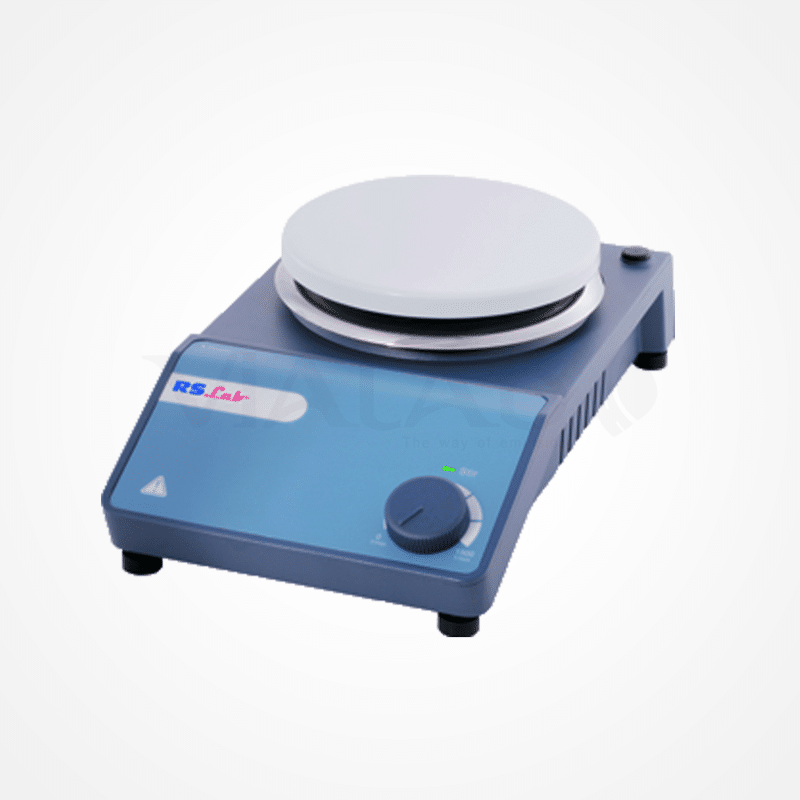

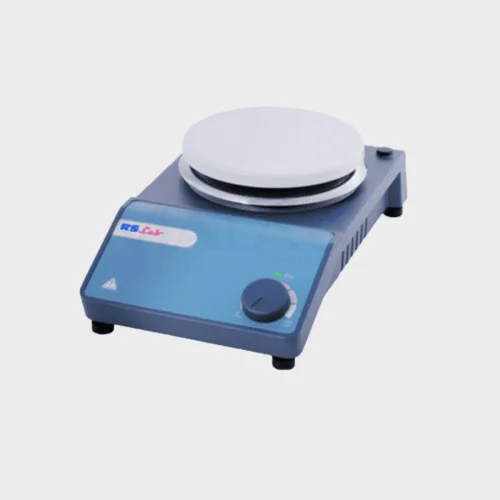

MAGNETIC STIRRER
Specifications
- Magnetic stirrer with ceramic coating
- Not heating
- Stainless steel plate coated with ceramic
- High magnetic adhesion
- Stirring speed from 0 to 1500 rpm
- Max volume agitation: 20 L
- Plate Ø 135 mm
- Power: 30 W
F039.115.0002

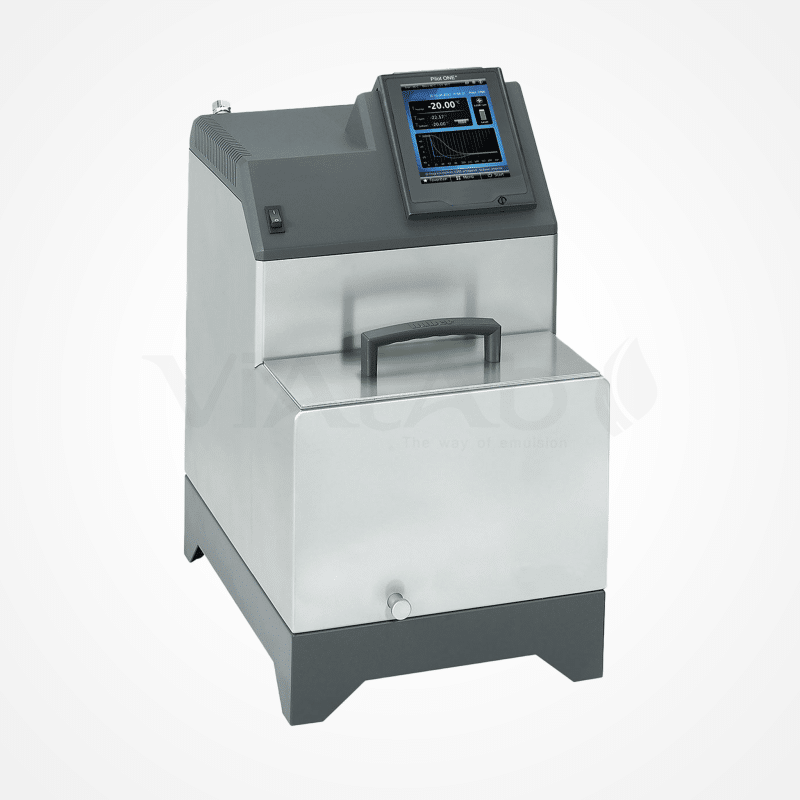

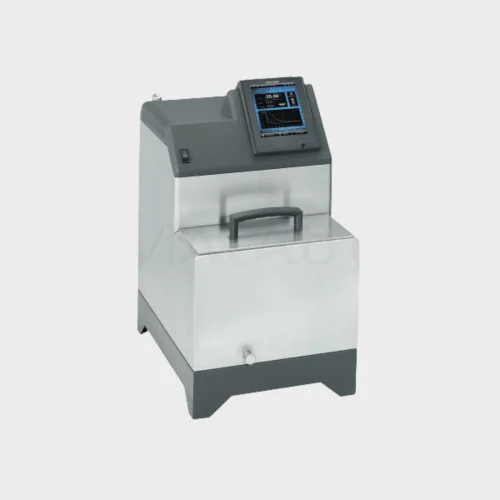

COOLING BATH | MINISTAT
Specifications
- Ministat cooling / heating circulation bath
- Pilot-one controller
- 5.7 inch color touch screen
- PT100 internal temperature sensor
- Bath volume: 4.9 L (minimum volume of 4.5 L)
- Temperature range: -40 to + 200°C
- Cooling power
- 20 | 0 | -10 | -20 | -30 | – 40°C
- 0.6 | 0.55 | 0.42 | 0.35 | 0.125 | 0.05 kW
- Heating power: 2 kW
- Discharge pump pressure: 22 l / min / 0.7 bar
- Suction pump: 16 l / min / 0.4 bar
- Pump connection: M16x1
- Ethernet, USB, RS232 output port
- Air-cooled machine (allow space around the device for good ventilation)
- Bath dimensions: 205 x 85 x 157 mm
To be ordered separately:
- Connector for Ministat F077.125.6087
- E-grade evolution | External application F077.125.9495
- PT100 external probe | Evolution E-grade F077.125.6138
F077.125.0501

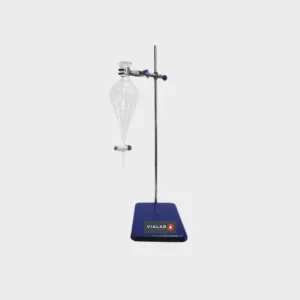

STAND | 250 x 160 x 600 mm
Specifications
- Blue painted cast iron base 250 x 160 mm
- Stainless steel rod Ø 12 x 600 mm
- M10 thread + clamping nut
F039.205.0271

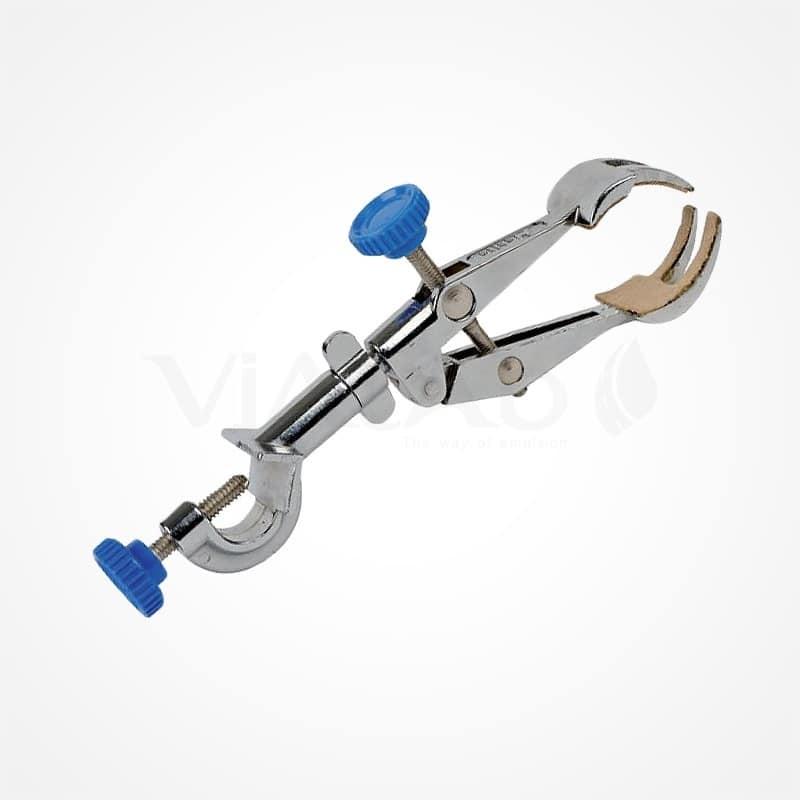

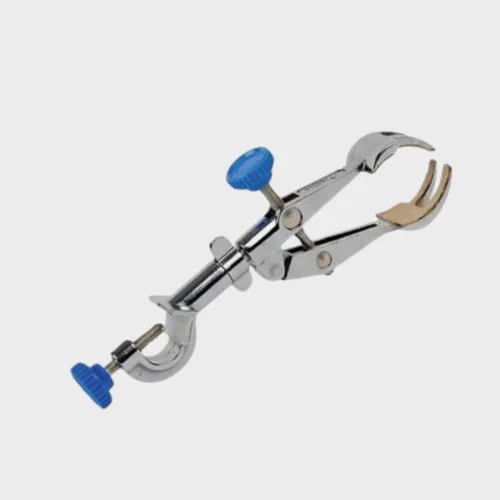

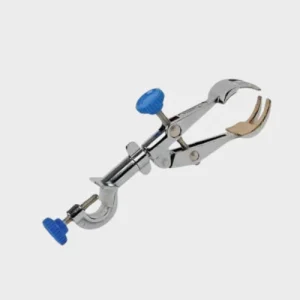

CORK CLAMP & NUTS
Specifications
- Chromed metal body
- Jaws with cork coating
- Nut integrated into the body
- Clamp tilt adjustment
- Distance from 0 to 100 mm
F039.205.0240

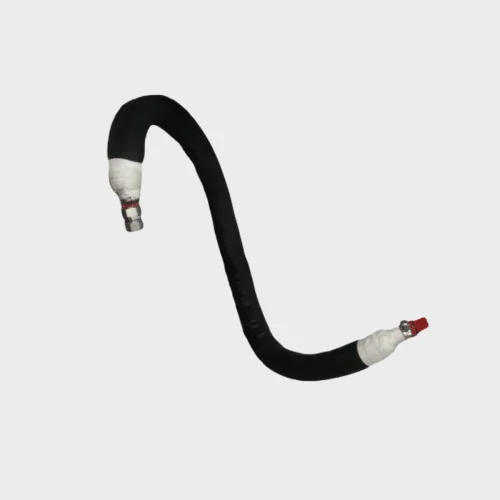

SOFT RUBBER HOSE
Specifications
- Ø Internal : 8 mm
- Ø External : 12 mm
- Thickness : 2 mm
- Sold by 10 m
F039.240.2510

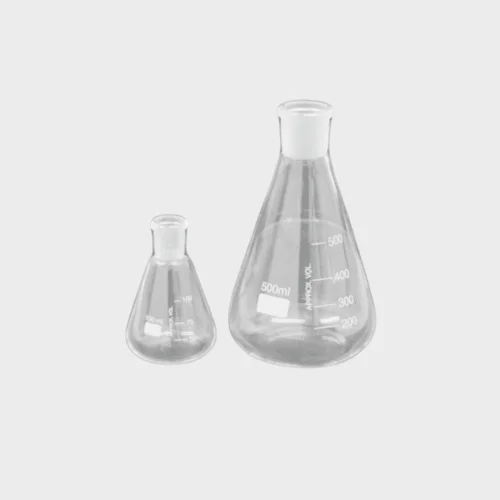

ERLENMEYER | 150 ml
Specifications
- Glass ground 29/32
- Volume 150 ml
- Borosilicate glass
F109.309.2943
