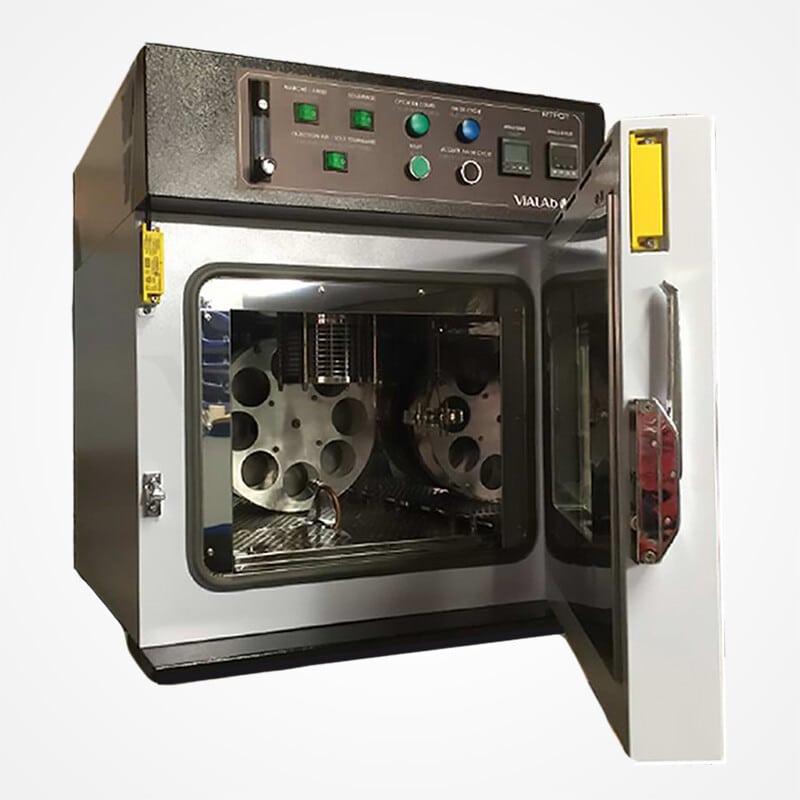

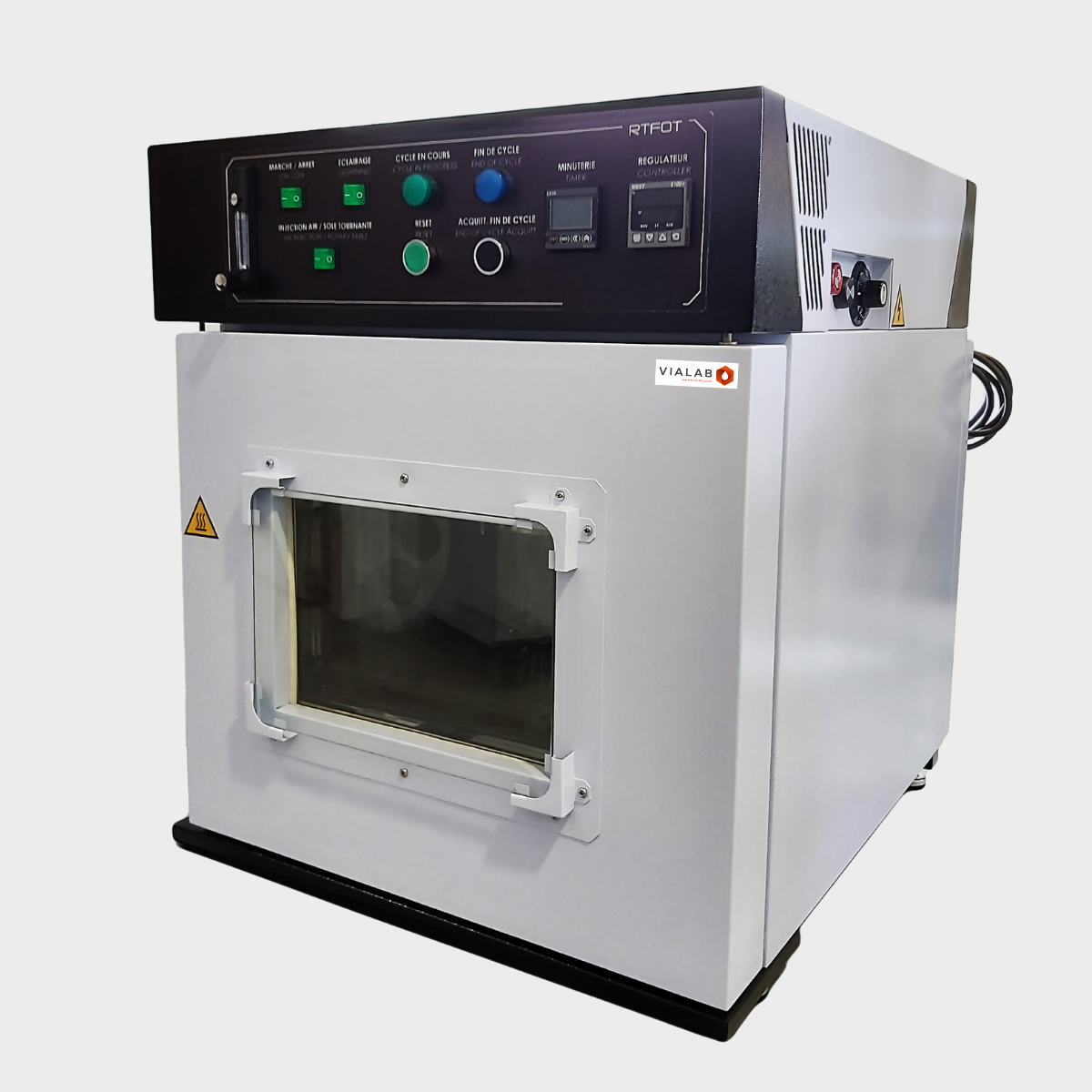

RTFOT | Rolling Thin Film Oven Test

Made in France

Determination of resistance to hardening under the effect of heat and air according to EN 12607-1

Performances

• Ambient temperature + 10 ° C to 200 ° C

• Test reference temperature 163 ° C +/- 1 ° C (according to FDX 15-140)

• Display accuracy of the electronic controller 0.1 ° C

• Regulation stability over time: ± 0.2 ° C

• Rotation of the rotating floor
  → Geared motor with frequency converter to guarantee the rotation speed of 15 rpm

• Air squirrel cage type
  → Geared motor with frequency converter to guarantee the mixing speed of the standard

• Feet adjustable in height to ensure the flatness of the support

• Warning buzzer at end of cycle

Specifications

• Painted steel outer casing, baked epoxy paint
• 430 stainless steel inner box: width 405 mm, depth 445 mm

• Height 340 mm with clip for thermometer

• W6100+ Temperature controller

• Dual display: setpoint and measured temperature

• 1 porthole centered L320 x H215 on the door

• 1 Hot air injection line via copper coil Ø8mm L ~ 7.6m

• Coil with Ø1mm nozzle blowing in the axis of the vial in the low position

• 1 Flow meter with setting range from 1 to 10 L / min

• 1 Ø8 push-in instant rear connection for connection to the compressed air circuit

• Make sure you have an air treatment system:
  Dried, deoiled, dusted and pressure regulated air

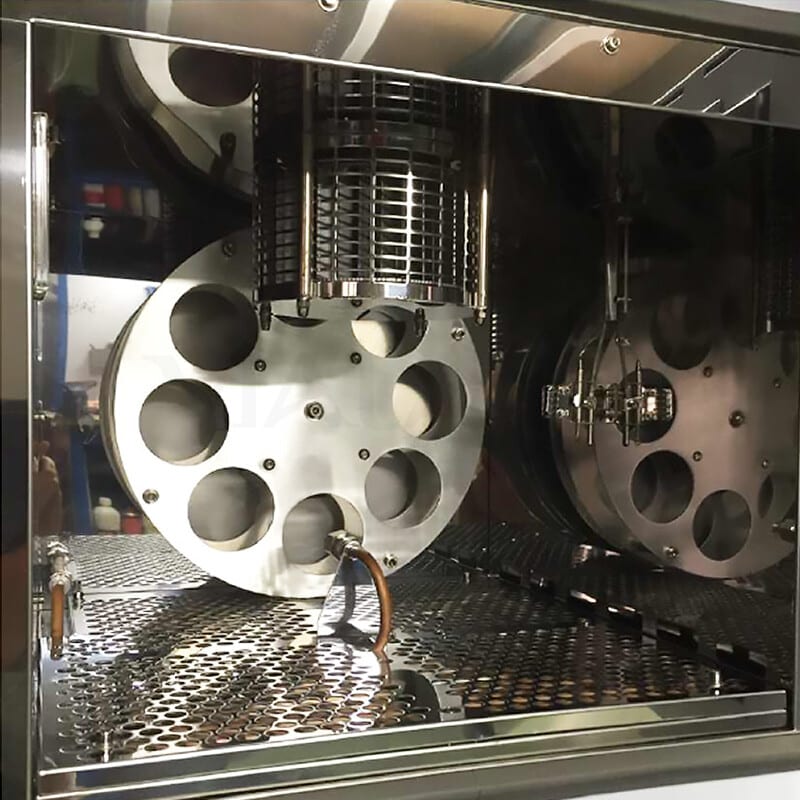

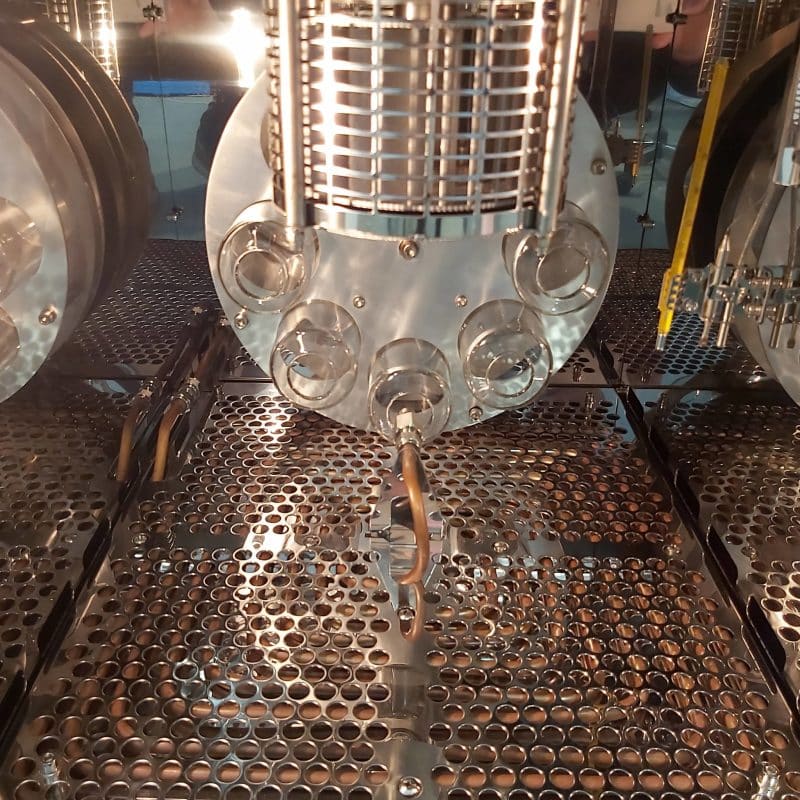

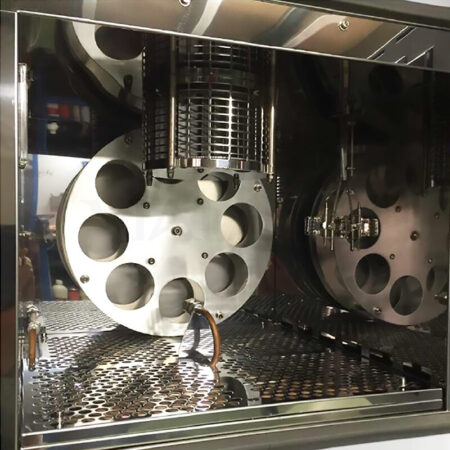

• 1 Ø300 mm rotating floor motorized and arranged vertically

• 8 Locations for vials with spring clips

• Insulated door, stainless steel door, silicone seal in a groove

• 1 automatic safety catch for closing

• Door closing on the left, hinges on the right, perfect sealing

Accessories to be ordered separately

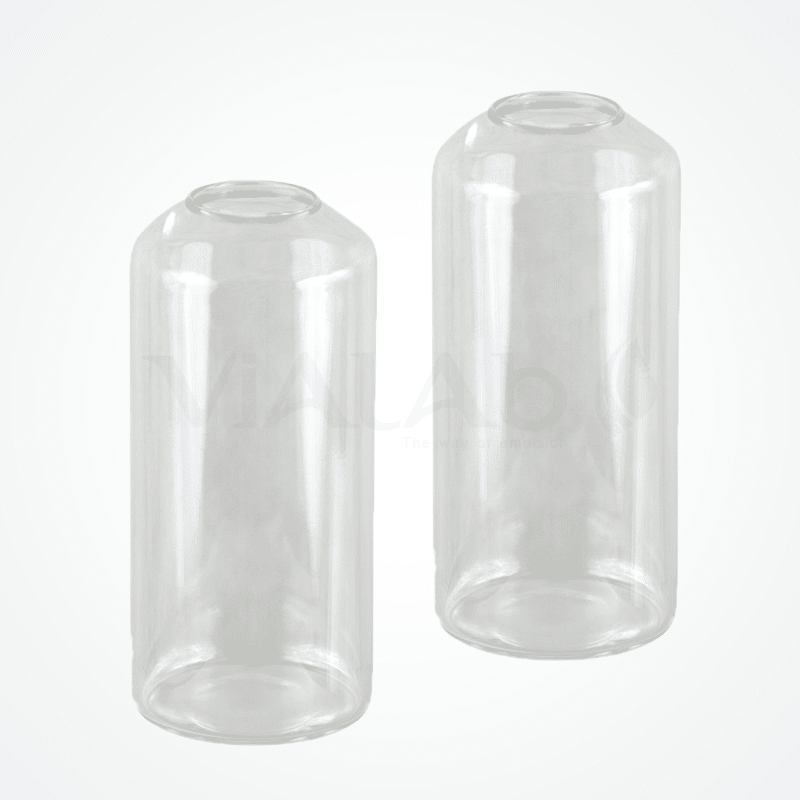

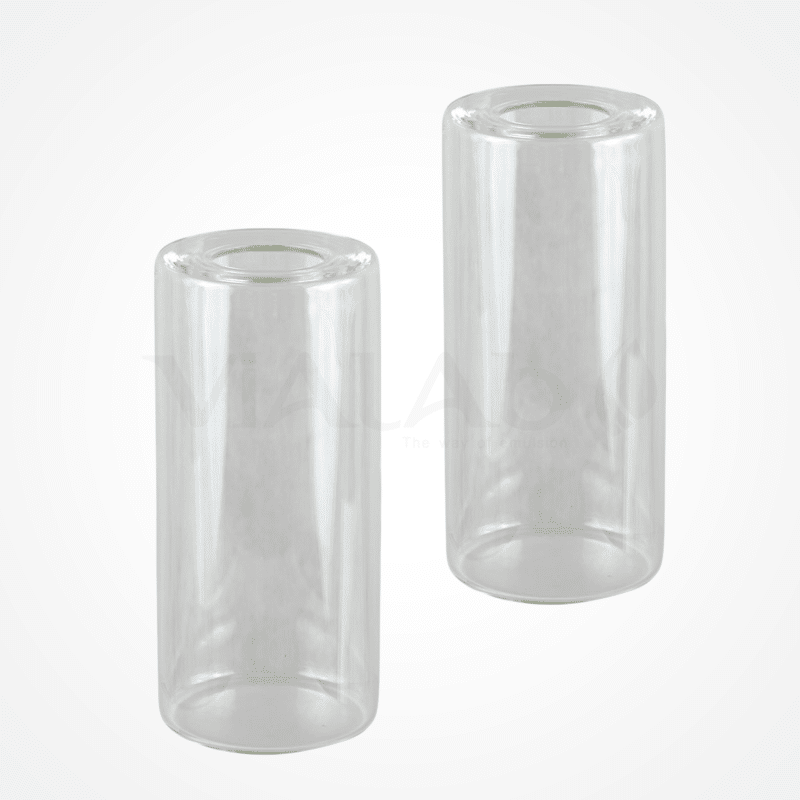

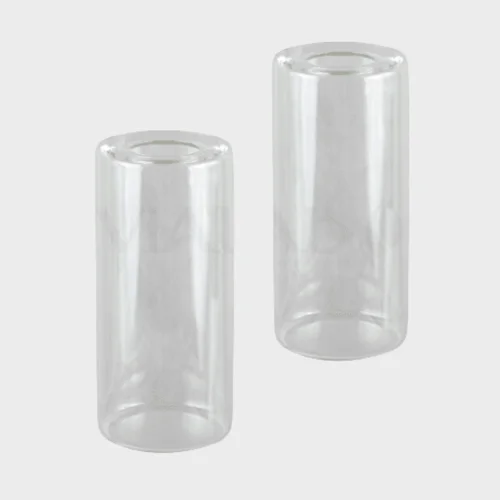

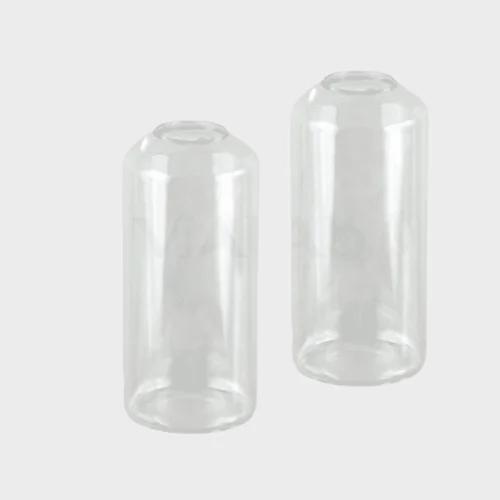

• 8 x glass vials with convex or concave opening

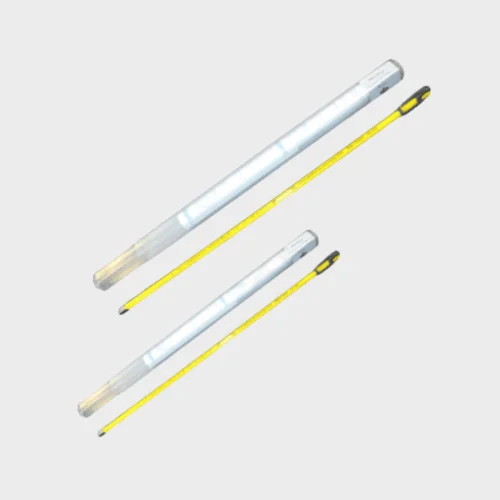

• 1 x ASTM 13C thermometer, perfect alcohol equivalent
