Ventilated universal ovens

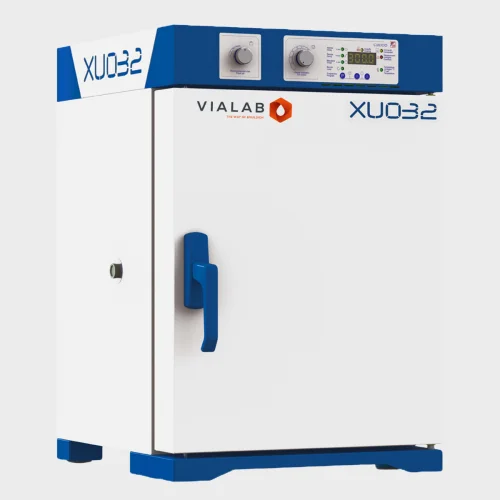

Performances

• Maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 ° C
• Temperature stability: <± 0.2 ° C
• Maximum air change rate: 12 m³ / h

Dimensions

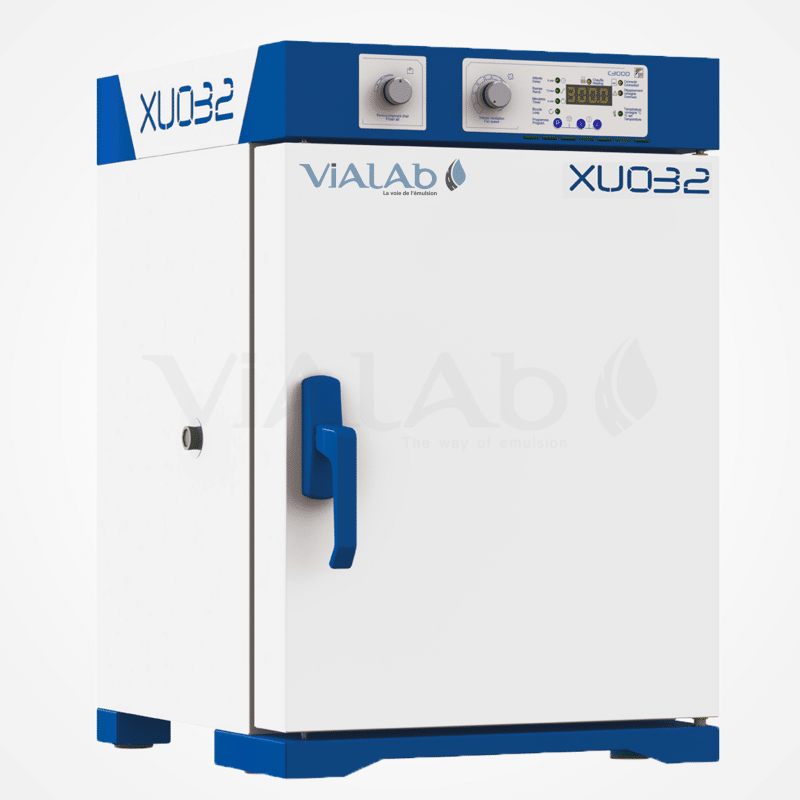

• Interior volume: 32 liters
• Internal dimensions (W x D x H): 300 x 270 x 400 mm
• External dimensions (W x D x H): 464 x 566 x 694 mm

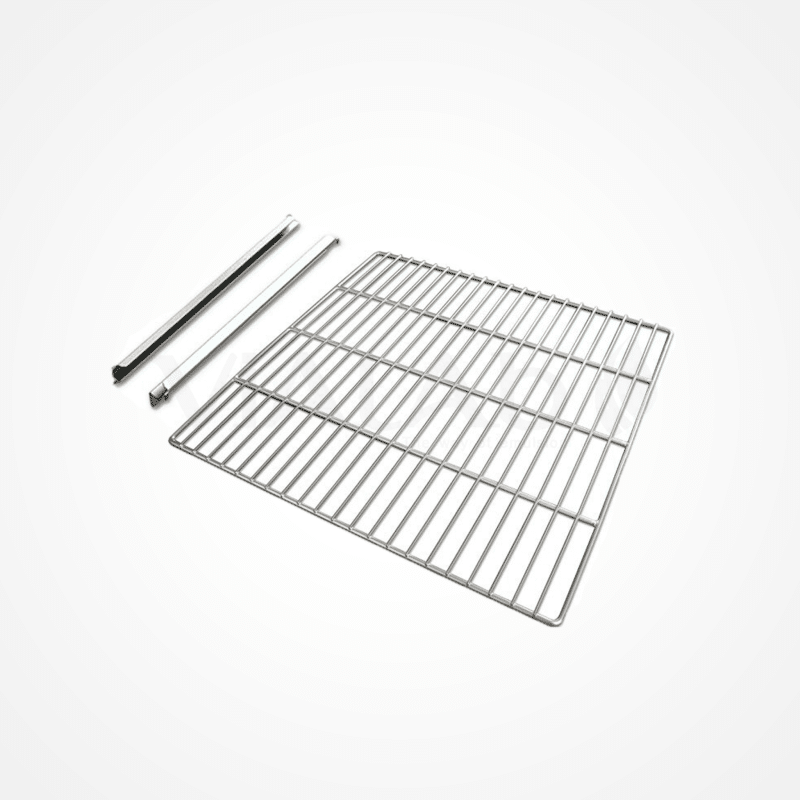

• Chrome steel loading shelves
• Number of shelves: 2 delivered / 6 maximum in the oven
• Shelf dimensions (WxD): 270 x 240 mm
• Spacing between the wires of the shelf: 24mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in oven: 60 kg (weight of shelves not included)


Power Supply & Miscellaneous

• Voltage: 230V ~ 1P 50 / 60Hz, 10A
• Heating power: 1000 W
• Number of doors: 1
• Weight: 39 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

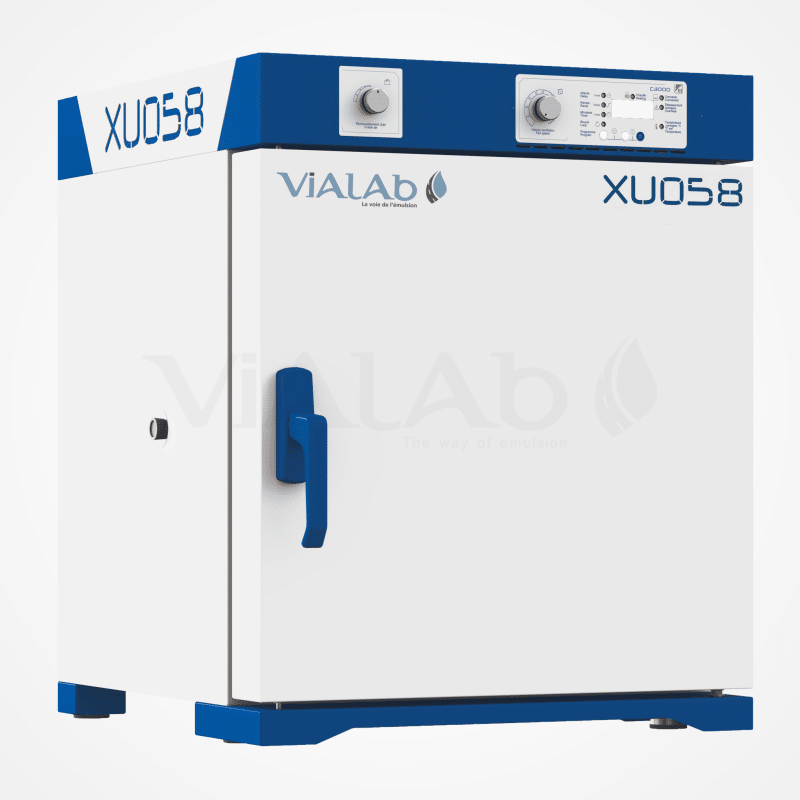

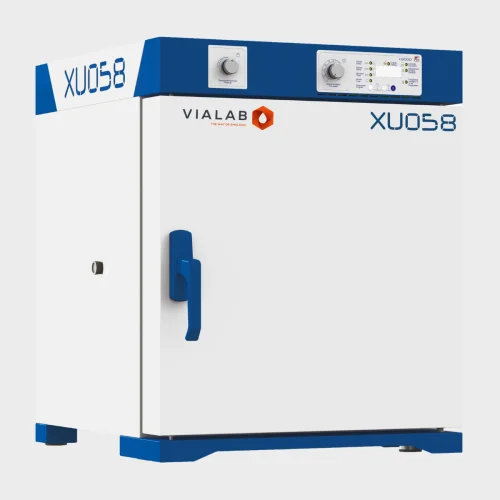

Performances

• Maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 ° C
• Maximum air change rate: 10 m³ / h
• Temperature stability: <± 0.2 ° C

Dimensions

• Internal volume: 58 liters
• Internal dimensions (W x D x H): 400 x 360 x 400 mm
• External dimensions (W x D x H): 564 x 656 x 694 mm
• Chrome steel loading shelves
• Number of shelves: 2 delivered / 6 maximum in the oven
• Shelf dimensions: 370 x 330 mm
• Spacing between the wires of the shelf: 23 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in oven: 60 kg (weight of shelves not included)

Power Supply & Miscellaneous

• Voltage: 230V ~ 1P 50 / 60Hz, 10A
• Heating power: 1500 W
• Number of doors: 1
• Weight: 50 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

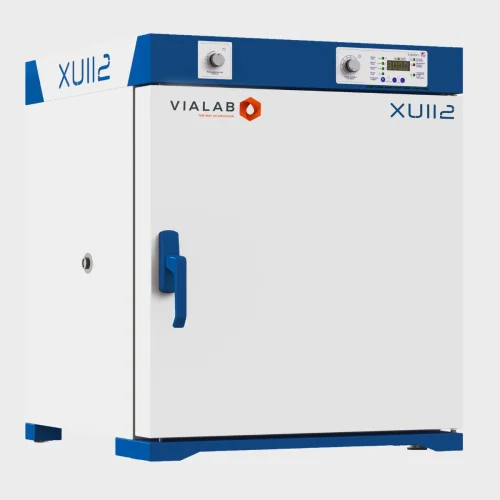

Performances

• Maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 ° C
• Airflow rate max. : 9 m³ / h
• Temperature stability: <± 0.2 ° C

Dimensions

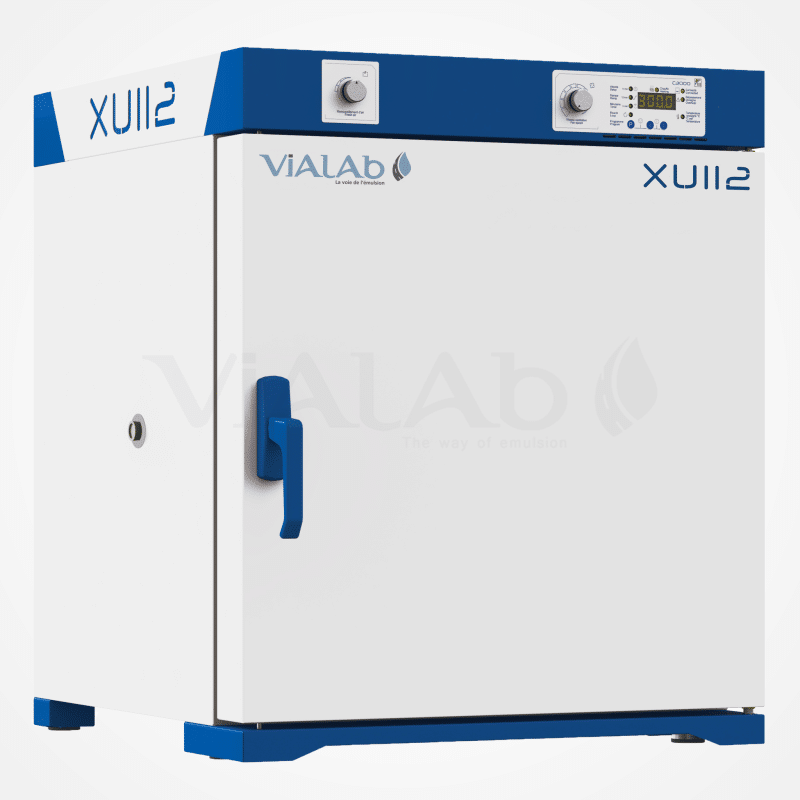

• Internal volume: 112 liters
• Internal dimensions (W x D x H): 500 x 450 x 500 mm
• External dimensions (W x D x H): 664 x 746 x 794 mm
• Chrome steel loading shelves
• Number of shelves: 2 delivered / 8 maximum in the oven
• Shelf dimensions: 470 x 420 mm
• Spacing between the wires of the shelf: 20 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in oven: 60 kg (weight of shelves not included)

Power Supply & Miscellaneous

• Voltage: 230V ~ 1P 50 / 60Hz, 10A
• Heating power: 1500 W
• Number of doors: 1
• Weight: 65 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

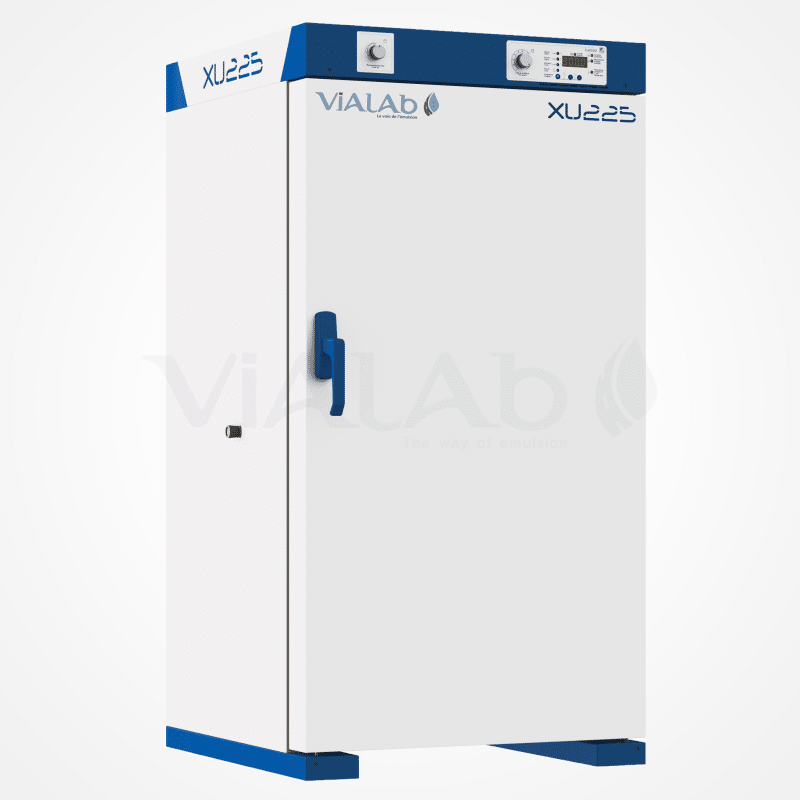

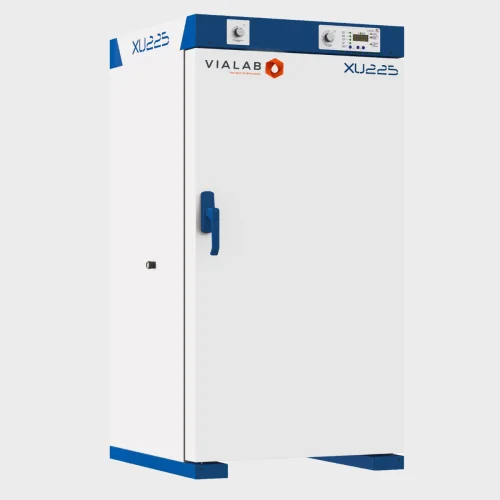

Performances

• Standard maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 ° C
• Maximum air change rate: 11 m³ / h
• Temperature stability: <± 0.2 ° C

Dimensions

• Internal volume: 225 liters
• Internal dimensions (W x D x H): 500 x 450 x 1000 mm
• External dimensions (W x D x H): 664 x 746 x 1294 mm
• Chrome steel loading shelves
• Number of shelves: 2 delivered / 17 maximum in the oven
• Shelf dimensions (W x D): 470 x 420 mm
• Spacing between the wires of the shelf: 20 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in Oven: 120 kg (weight of shelves not included)

Power Supply & Miscellaneous

• Voltage: 230V ~ 1P 50 / 60Hz, 10A
• Heating power: 2000 W
• Number of doors: 1
• Weight: 84 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

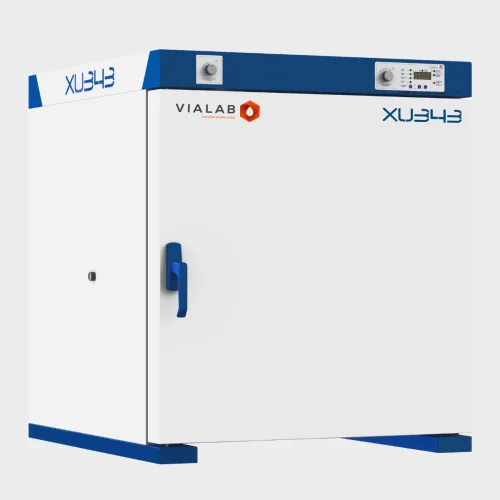

Performances

• Standard maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 °C
• Maximum air change rate: 14 m³ / h
• Temperature stability: <± 0.2 ° C

Dimensions

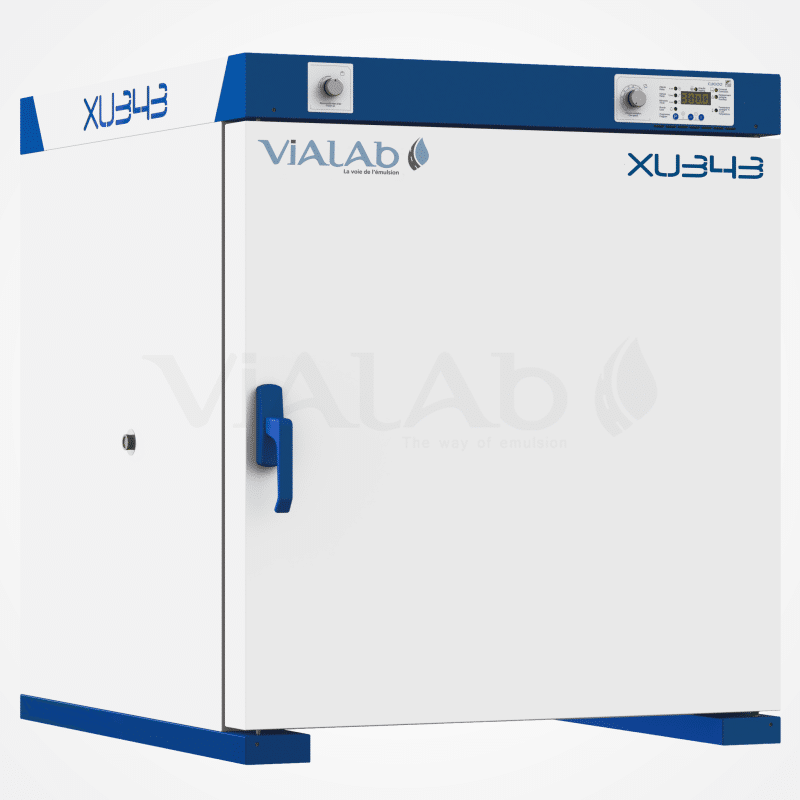

• Internal volume: 343 liters
• Internal dimensions (W x D x H): 700 x 700 x 700 mm
• External dimensions (W x D x H): 864 x 1092 x 994 mm
• Chrome steel loading shelves
• Number of shelves: 2 delivered / 11 maximum in the oven
• Dimensions Shelf (WxD): 670 x 670 mm
• Spacing between the wires of the shelf: 26 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in oven: 100 kg (weight of shelves not included)

Powe Supply & Miscellaneous

• Voltage: 230V ~ 1P 50Hz, 16A
• Heating power: 3000 W
• Number of doors: 1
• Weight: 123 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

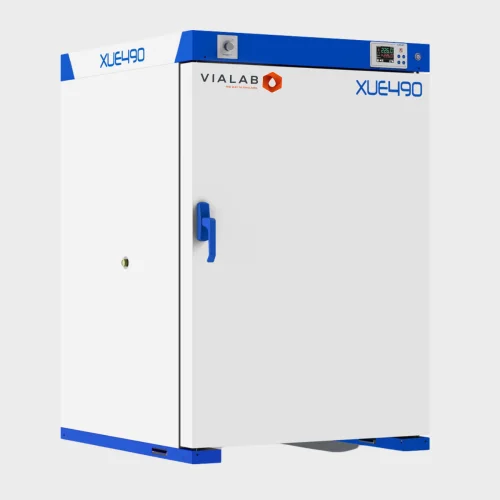

Performances

• Maximum temperature: 300 °
• Minimum temperature: Ambient temperature + 10 ° C
• Maximum air change rate: 15 m³ / h
• Temperature stability: <± 0.2 ° C

Dimensions

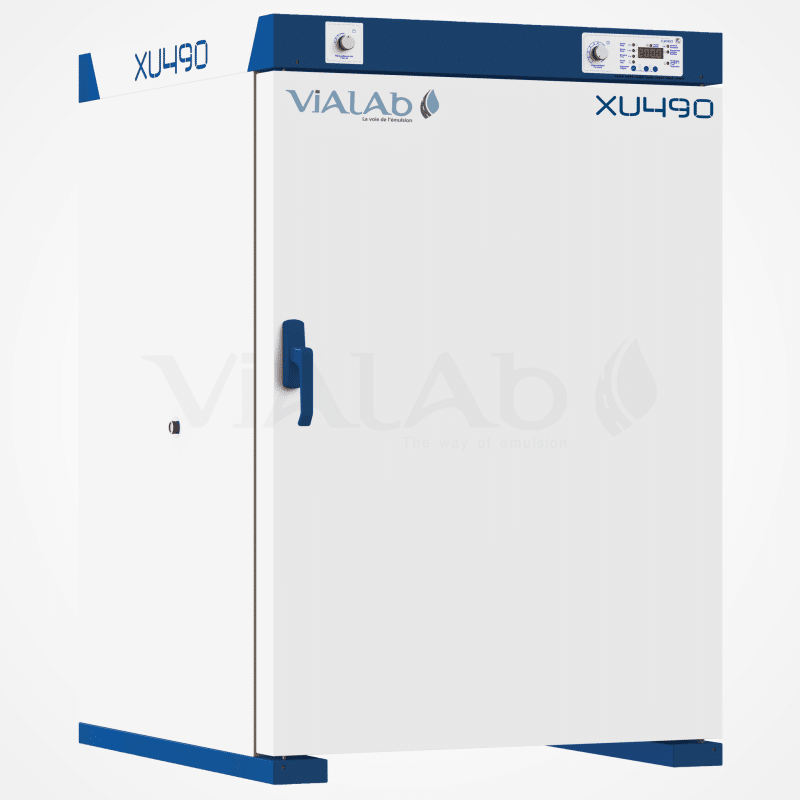

• Internal volume: 490 liters
• Internal dimensions (W x D x H): 700 x 700 x 1000 mm
• External dimensions (W x D x H): 864 x 1092 x 1294 mm
• Chrome steel loading shelves
• Number of shelves: 2 delivered / 17 maximum in the oven
• Shelf dimensions (WxD): 670 x 670 mm
• Spacing between the wires of the shelf: 26 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in Oven: 160 kg (weight of shelves not included)

Power Supply & Miscellaneous

• Voltage: 230V ~ 1P 50Hz, 16A
• Heating power: 3000 W
• Number of doors: 1
• Weight: 148 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes

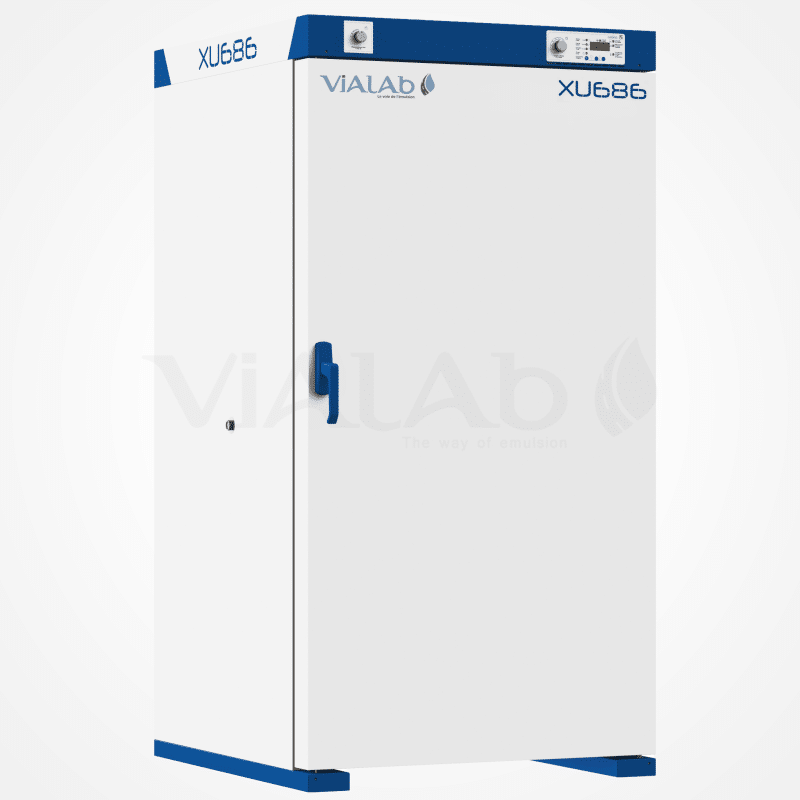

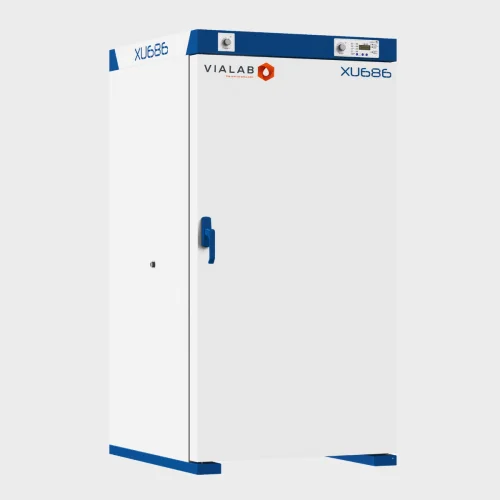

• Standard maximum temperature: 300 ° C
• Minimum temperature: Ambient temperature + 10 ° C
• Temperature stability: <± 0.2 ° C
• Maximum air change rate: 13 m³ / h

• Internal volume: 686 liters
• Internal dimensions (W x D x H): 700 x 700 x 1400 mm
• External dimensions (W x D x H): 864 x 1092 x 1694 mm
• Number of shelves: 2 delivered / 25 maximum in the oven
• Dimensions Shelf (WxD): 670 x 670 mm
• Spacing between the wires of the shelf: 26 mm
• Maximum weight per shelf: 30 kg
• Total Max Weight in Oven: 160 kg (weight of shelves not included)


• Voltage: 230V ~ 1P 50Hz, 20A
• Heating power: 4000 W
• Number of doors: 1
• Weight: 178 kg
• Interior lighting of the oven: yes
• Internal ventilation speed controller: yes
