Epi-Fluorescence Microscope

The modification of bitumen with elastomers and/or plastomers (PMB) improves their mechanical characteristics. In the laboratory, it is possible to analyze the homogeneity of the polymer dispersion in the binder using an epi-fluorescence microscope.

A light beam emitted by a mercury lamp is projected onto the sample through the objectives, after selection of the excitation wavelengths by the set of dichroic mirrors and excitation filters. Polymer molecules, which are fluorescent, are excited and emit light which gets filtered to select specific wavelengths so that the operator can visualize them. Photos and videos are then recorded to document the observation. Our microscope offers six (6) optical combinations to generate incident beams from 330 to 560 nm and to select fluorescent waves from 400 to 590 nm.

The set consists of the following elements:

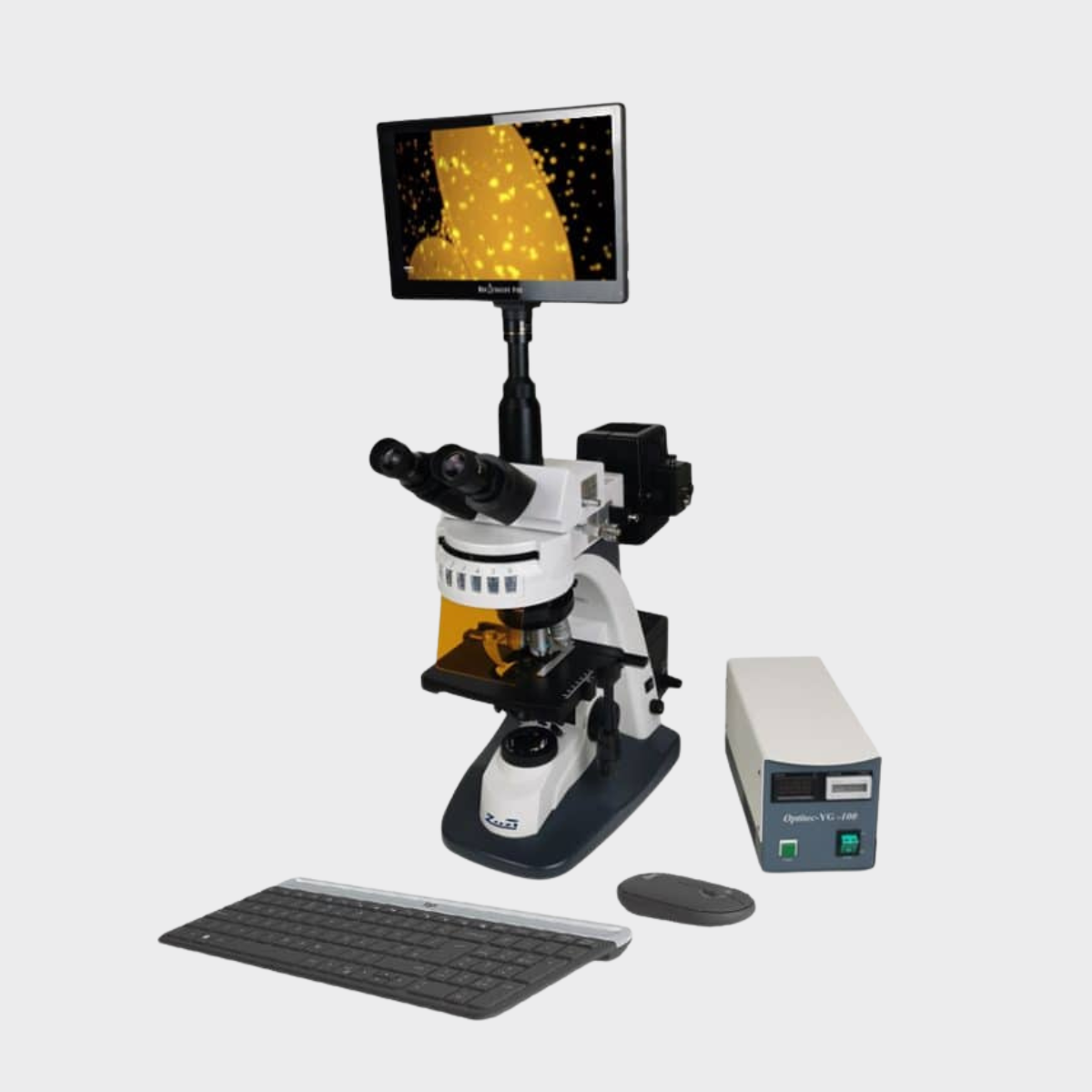

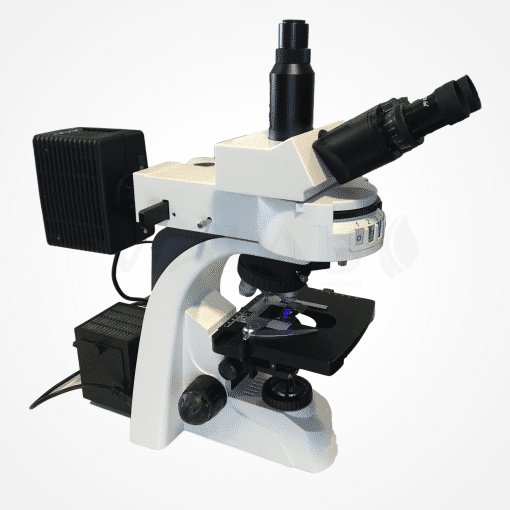

Epi-fluorescence microscope with different optical filters
A current generator powering the Mercury lamp

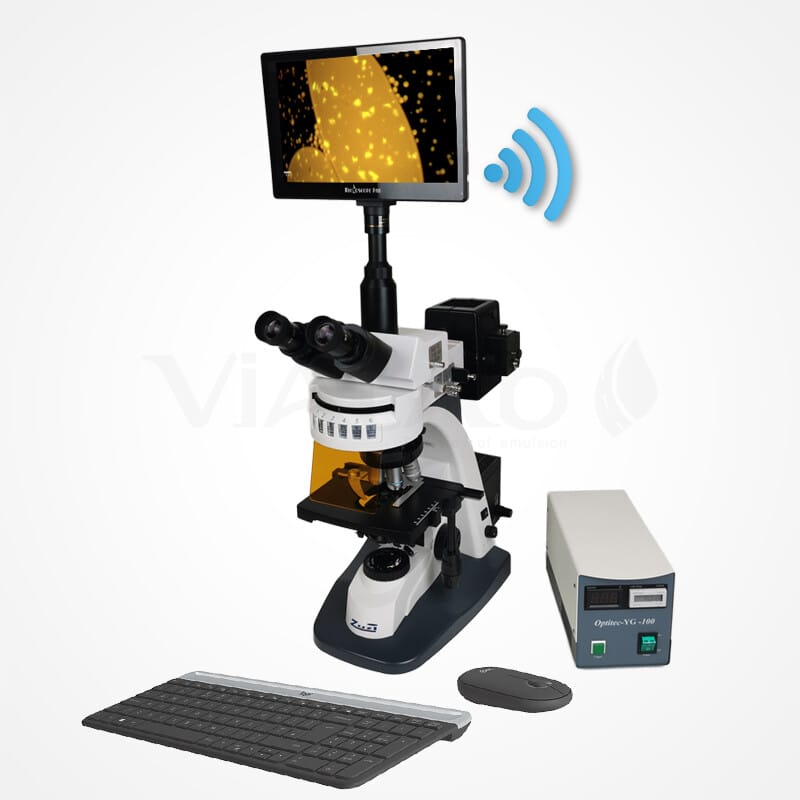

An 11.8″ touchscreen tablet equipped with a 16 MP camera and a keyboard/mouse set
Acquisition and measurement software

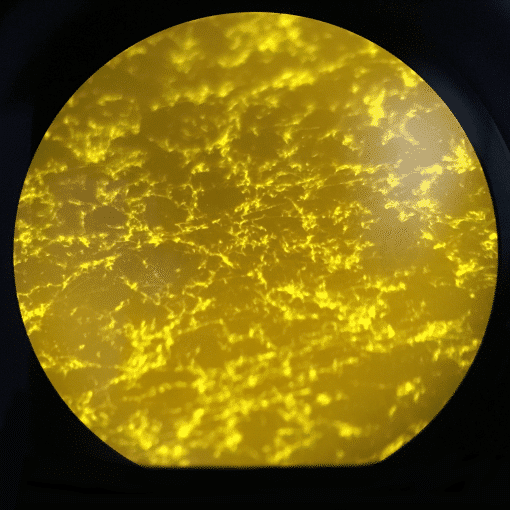

The set makes it possible to visualize the dispersion of polymers in bitumen for the purposes of formulation and production control, but also to observe emulsions of pure bitumen, PMB and bi-phasic (latex).

EN 13632

Category: Polymer Modified Bitumen - PMB

Description
Video

Products

Epi-fluorescence Microscope | Touchscreen Tablet 11.8" | 16MP Integrated Camera

Technical features

Tip: Triocular, 0-40-degree inclination with adjustment of inter-pupil distance: 50-75 mm and dioptric correction
Eyepiece WF 10x/20
Sextuple barrel with apochromatic fluorescence plane lenses 4x (0.15); 10x (0.35); 40x (0.75); 100x (0.90)
Double platinum 180 x 160 mm mechanical displacement 80 x 50 mm
Transmission: Halogen lamp 12V, 50W
Epi-fluorescence: High-pressure mercury lamp 20V, 100W
Illumination type Köehler with field diaphragm and aperture
5 Excitement Filters (EX) / Emission (EM):
- Green EX 510-560 – EM 590 nm,
- Blue EX 450-490 – EM 520 nm,
- Blue/Violet EX 400-440 – EM 470 nm,
- Violet EX 380-420 – EM 450 nm,
- Ultra-Violet EX 330-380 – EM 420 nm
Touch tablet with built-in camera and image acquisition software:
- Touch screen 11.8″
- Resolution 4032×3024 pixels
- 16-megapixel camera
- Pre-installed image acquisition software (photos and videos) and analysis (measures of lengths, surfaces,…)
- Inlay of scales in photos
- Windows 10 operating system
- Wifi
- Intel Atom 1.44 GHz processor
- 4GB Ram
- 60GB storage space

More information

Mice and wireless keyboard via USB 2.0 port provided
Food: 3×230 VAC, 50 Hz
- Epifluorescence feeding
- General power for the microscope and its halogen lamp
- Tablet power with DC 12V transformer
Spare part:

Mercury high-pressure lamp 20 V 100 W. (Limited lifespan 200h)

F044.136.2030
