LUM Products
LUMiSizer®
Information
Specifications
- Accelerated stability analysis : 6 to 2300 g
- Particle size : 20 nm to 100 µm
- Sample volume : 400 µl to 2.0 ml
- Concentration binder : 0.00015% vol. to 90% vol
- Duration of analysis : 1 s to 99 h
- Density : up to 22 g/cm3
- Viscosity : 0.8 to 10^8 mPas
- Temperature control : 4 °C to 60 °C, ± 1 °C
- Measurement cells (consumable) : Polycarbonate, Polyamide, glass
- Light source : LED multi-wavelength (bleu, NIR)
- Up to 12 samples
Powering : 230 V | 50-60 Hz
Dimensions (LxHxP) : 37 x 27 x 60
Weight : 40 kg
Comes with : Software SEPView + 2 licences
Required :
- Computer
- Training on site
- Consumables
651-00000

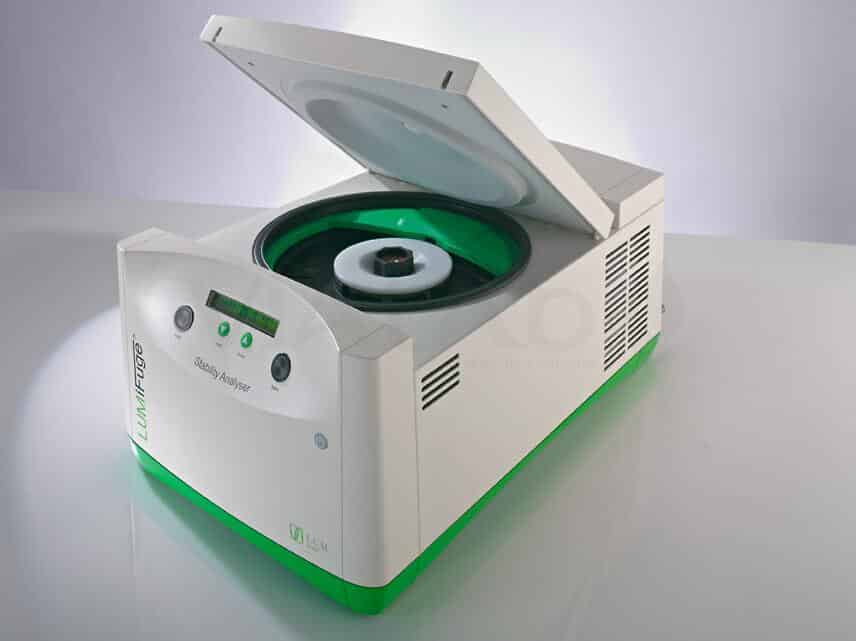

LUMiFuge®
Information
Specifications
- Accelerated stability analysis : 6 to 2300 g
- Particle size : 20 nm to 100 µm
- Sample volume : 400 µl to 2.0 ml
- Concentration binder : 0.00015% vol. to 90% vol
- Duration of analysis : 1 s to 99 h
- Density : up to 22 g/cm3
- Viscosity : 0.8 to 10^8 mPas
- Temperature control : 4 °C to 60 °C, ± 1 °C
- Measurement cells (consumable) : Polycarbonate, Polyamide, glass
- Light source : LED multi-wavelength (NIR)
- Up to 8 samples
Powering : 230 V | 50-60 Hz
Dimensions (LxHxP) : 37 x 27 x 60 cm
Weight : 40 kg
Comes with : Software SEPView + 2 licences
Required :
- Computer
- Training on site
- Consumables
111-00000

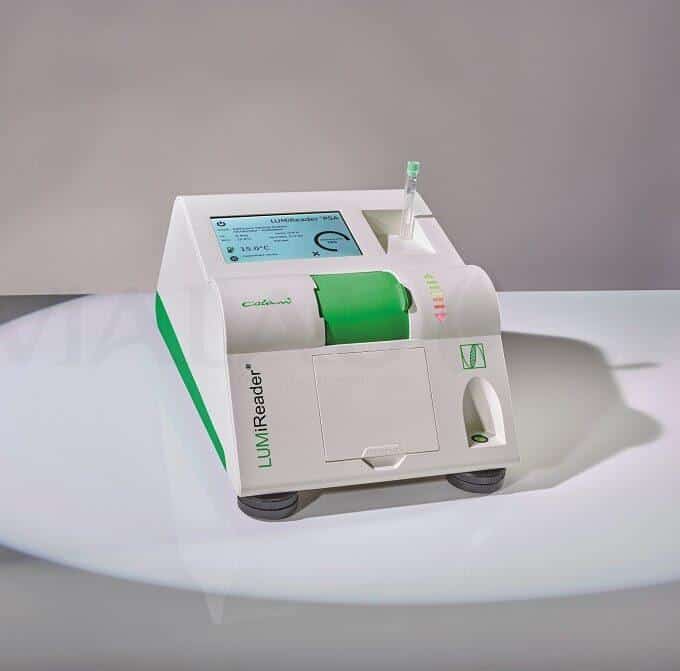

LUMiReader®
Information
Specifications
- Particle size : 500 nm to 300 µm
- Sample volume : 400 µl to 2.0 ml
- Concentration binder : 0.00015% vol. to 75% vol
- Duration of analysis : as low as 0.5 sec
- Density : up to 22 g/cm3
- Viscosity : 0.8 to 10^8 mPas
- Temperature control : 4 °C to 80 °C, ± 1 °C
- Measurement cells (consumable) : Polycarbonate, Polyamide, glass
- Light source : LED multi-wavelength (bleu, red, NIR)
Powering : 24 V | (Adaptor 100 to 240 V included)
Dimensions (LxHxP) : 29 x 24 x 44 cm
Weight : 11 kg
Comes with : Software SEPView + 2 licences
Required :
- Computer
- Training on site
- Consumables
- External temperature regulation device
452-10000
Comparasion chart

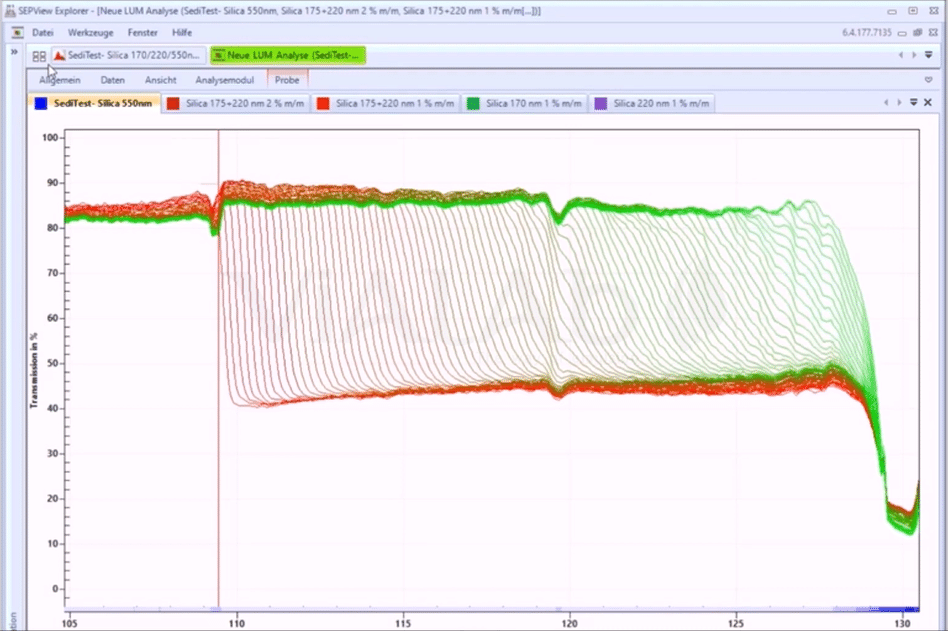

Logiciel SEPView
SEPView ® | USER LICENCE
Information
Required software to analyse the data produced by LUM equipments
610-50601
LONG-TIME ANALYSIS
Information
Required to conduct long-time analysis
610-50603
FAST ANALYSIS
Information
Required to conduct fast analysis
610-50605
FULL TRANSMISSION DERIVATIVE
Information
Required for the Quality Control of the measurements
610-50606
ANALYSIS MODELS
Information
- Standard measurement and analysis procedures
- For R&D and Quality Control
610-50607
TEMPERATURE RAMP
Information
For LUMiSizer ®
- Required to conduct analysis with variable temperature
610-50608
A-CSV SAVING
Information
Required to save the acquired data in A-CSV
610-50610
Consumables & Accessories
PC TUBES 2 mm (x600)
Information
- Polycarbonate tubes
- With cap
- 2 mm optical path
110-13105
PC TUBES 10 mm (x600)
Information
- Polycarbonate tubes
- With cap
- Optical path
110-13205
PA TUBES 2 mm (x600)
Information
- Polyamide tubes
- With cap
- 2 mm optical path
110-13405
PA TUBES 10 mm (x600)
Information
- Polyamide tubes
- With cap
- 10 mm optical path
110-13505
FILTER INTENSITY 2 | Source 870 nm
Information
For the calibration of the light source 870 nm at an intensity equaling 2 times the reference intensity.
- Necessary for the analysis of samples with moderate turbidity
610-45012
FILTER INTENSITY 4 | Source 870 nm
Information
For the calibration of the light source 870 nm at an intensity equaling 4 times the reference intensity.
- Necessary for the analysis of samples with high turbidity
610-45013
FILTER INTENSITY 6 | Source 870 nm
Information
For the calibration of the light source 870 nm at an intensity equaling 6 times the reference intensity.
- Necessary for the analysis of samples with very high turbidity
610-45014
CANNULA SYRINGE 2.1 mm (x1000)
Information
- For LuerLock syringes
- Length 75 mm
- Diameter 2.1 mm
110-13829
CALIBRATION REFERENCE 4 mL
Information
- SiO2/H2O dispersion for calibration
- Nominal diameter 500 nm
1600-61051
