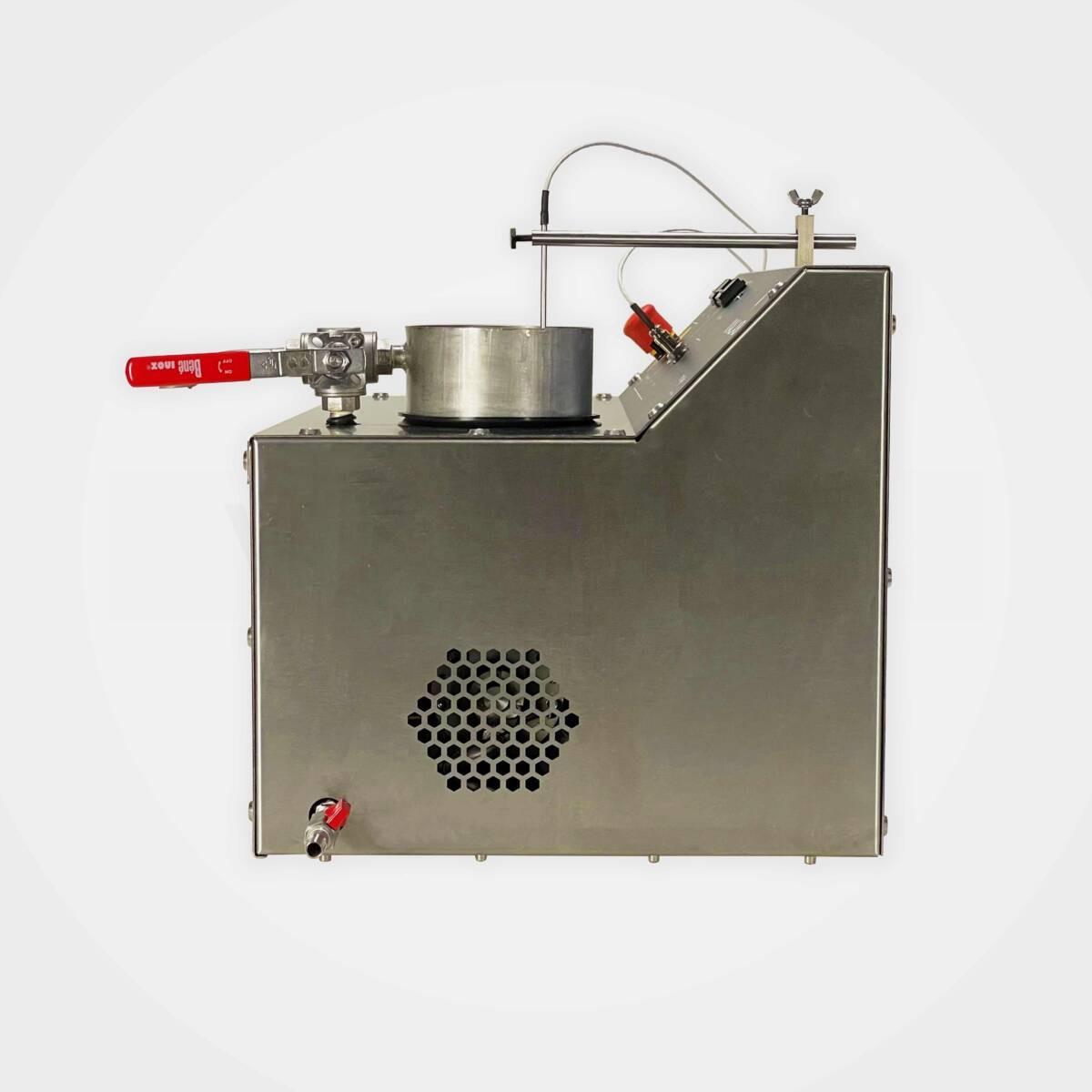

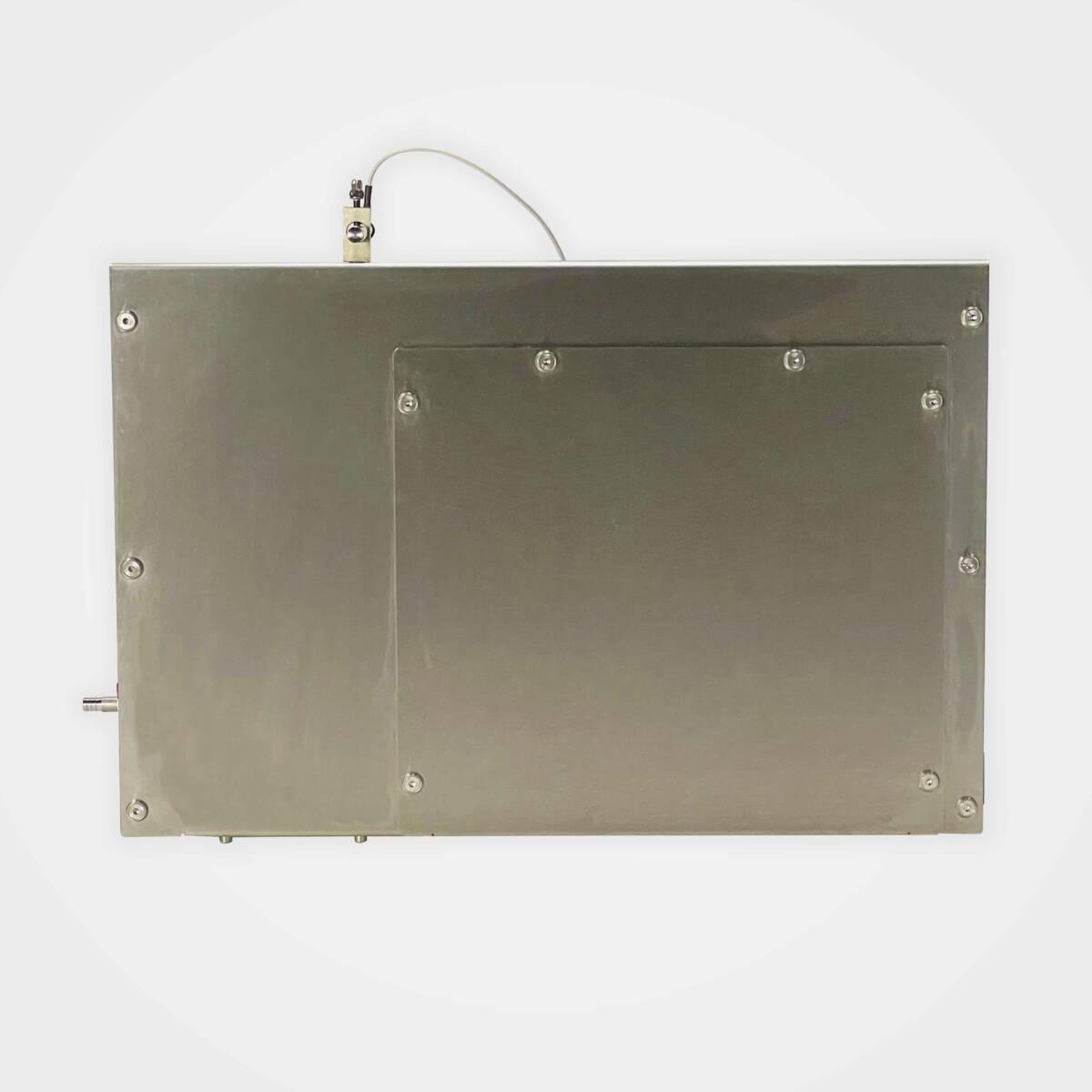

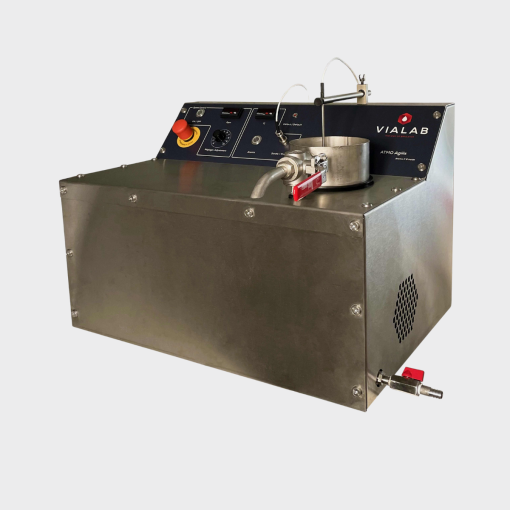

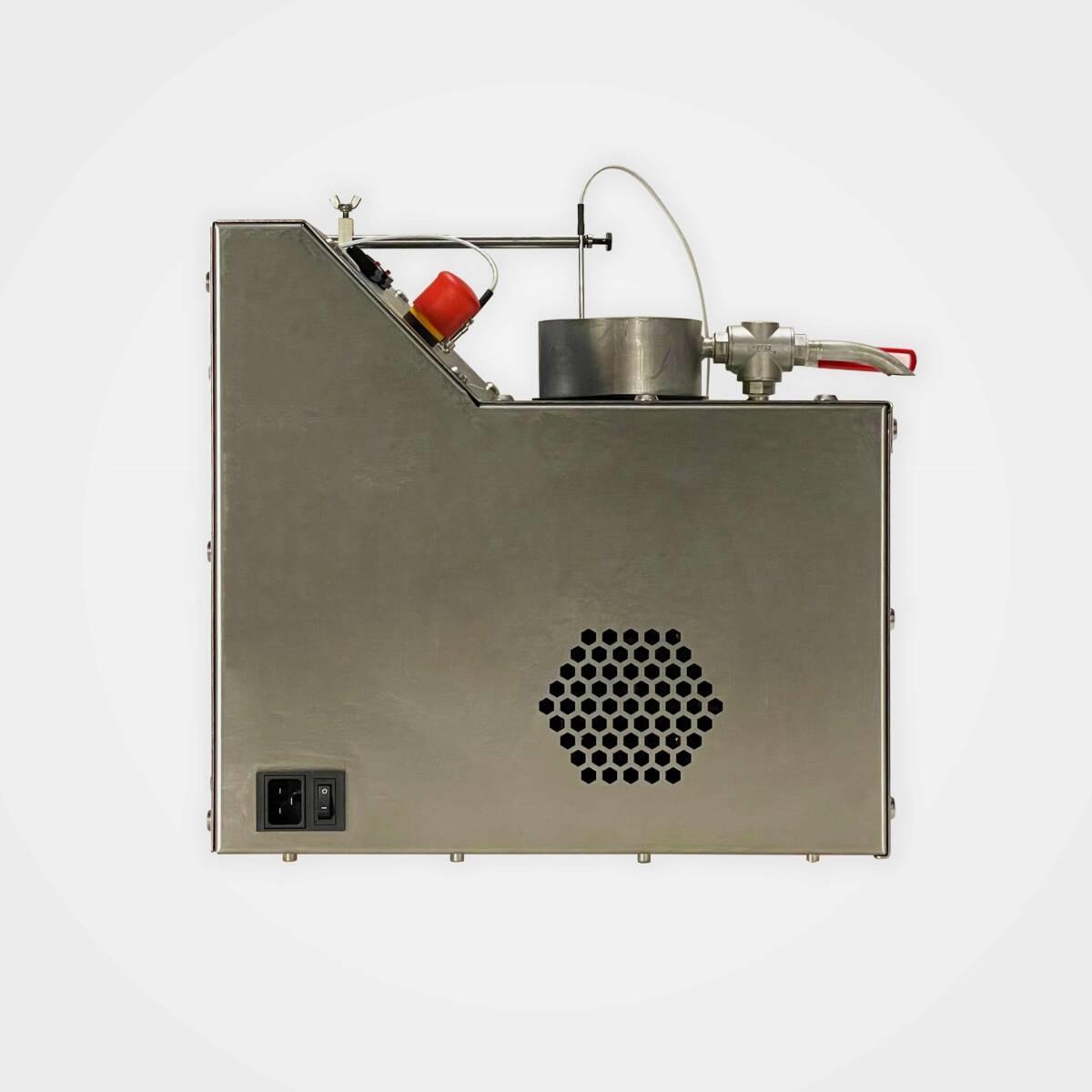

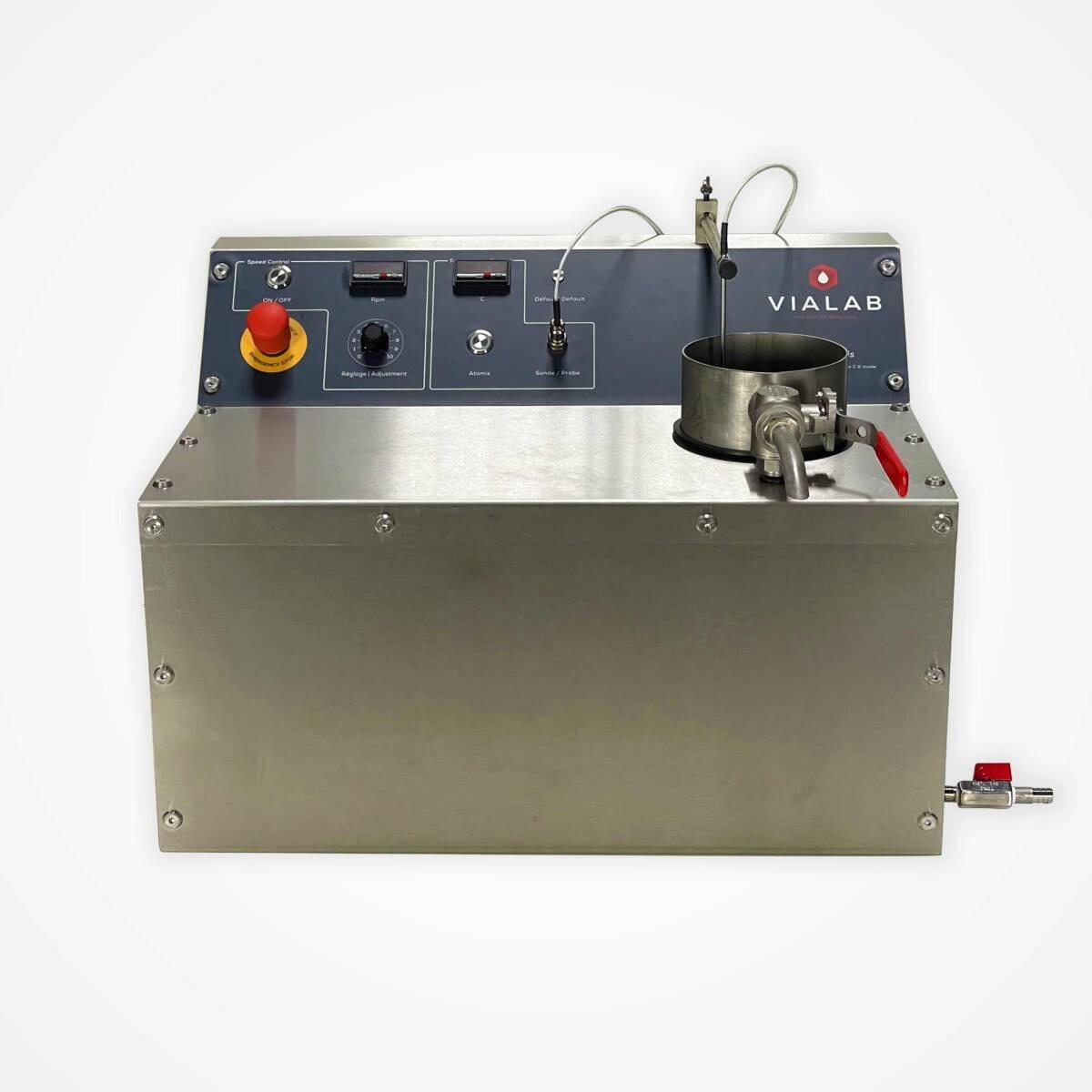

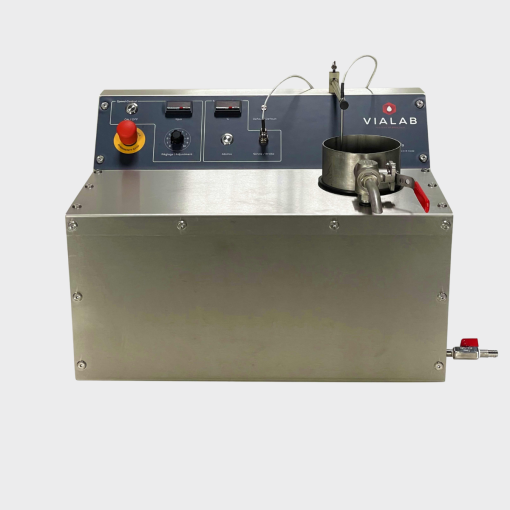

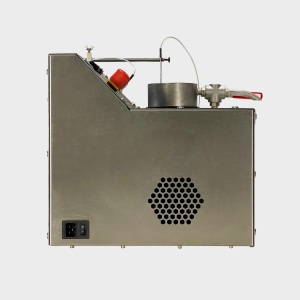

ATMO Agilis – SIMPLIFIED LABORATORY PILOT
Use & Benefits
Very easy to use, it allows to produce emulsions of pure or fluxed bitumens, with or without latex, in atmospheric conditions. In a binder factory, its use leads to a saving of time and savings in considerable materials, and offers the possibility of adapting the productions to the needs of the sites and to the specificity of the materials.
For the quick production of bitumen emulsions in the laboratory
- Integral carter and High-position outlet Valve
- Temperature display + PT100 Probe
- Low-position emptying Valve
- Optimized command Board
- ATOMIX C® Inside
Based on ATOMIX® technology
The homogenizer ATOMIX® C equips the laboratories of the main companies in the road sector. The lab pilots are small-size units made to produce bitumen emulsion (or other) on a small scale in order to test the quality and compatibility of the products used (bitumen, emulsifier, latex, etc.).
All over the world, our machines produce all types of emulsions, thus meeting the highest standards.
The production of bitumen emulsions requires a prior search for formulas suitable for the use and application of these emulsions.
The best for preformulation studies or for rapid testing of pure, fluidized and / or fluxed bitumens.
Specifications
- ATOMIX® Homogenizer | The benchmark
- Production of 500 g- to 1 kg-batches of emulsion (atmospheric < 100°C)
- Works with latex and bentonite (max. 2-3% according to Bentonite used)
- Heating resistor on the homogenizer
- High-speed motor 1500W (1000 to 11000rpm)
- Optimized funnel with stainless steel piping and valve
- General switch
- Frequency converter with potentiometer for rotation speed adjustment
- Switch for heat resistence
- Temperature and Rotation speed displays
- Emergency stop punch button
Video tutorial
Accessories – Options

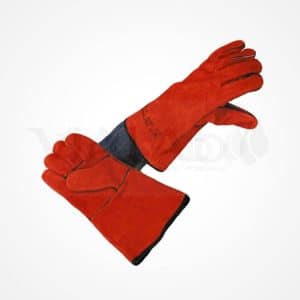

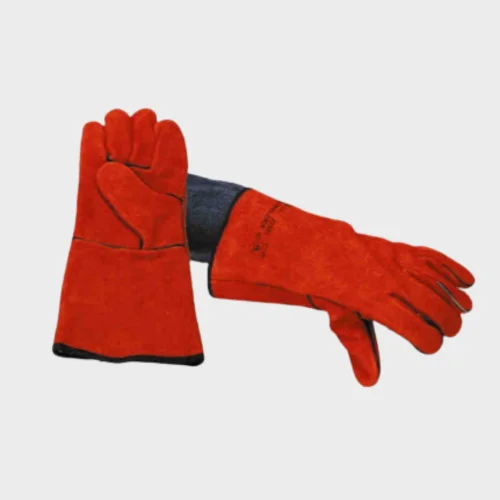

LONG HEAT RESISTANT GLOVES | 250°C
Specifications
- Cow split leather
- Fully lined fleece palm
- 35 cm cuff fully lined with cotton canvas
- Reinforced seams
F003.505.0150

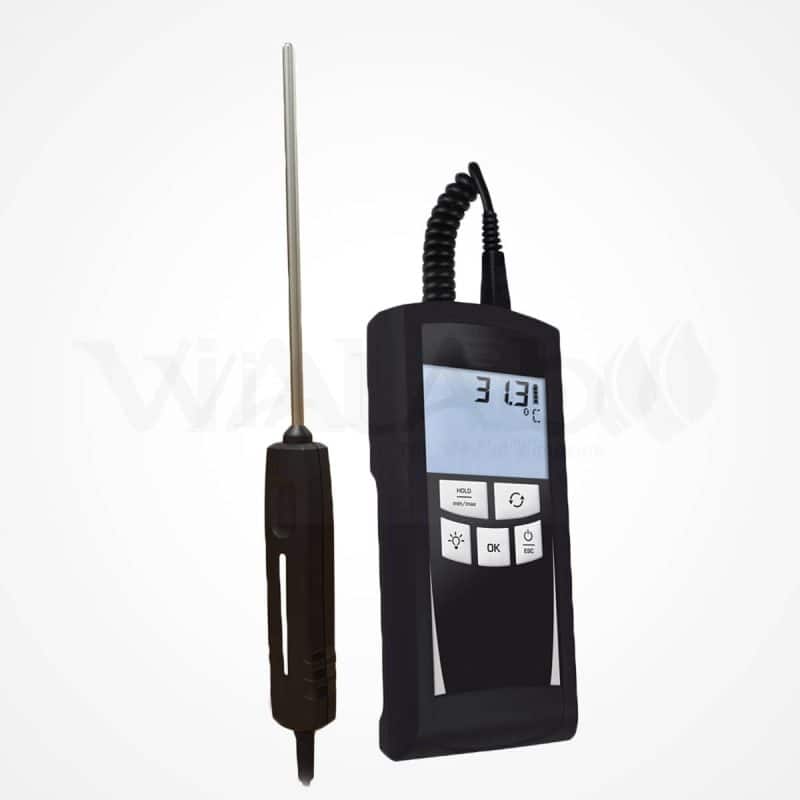

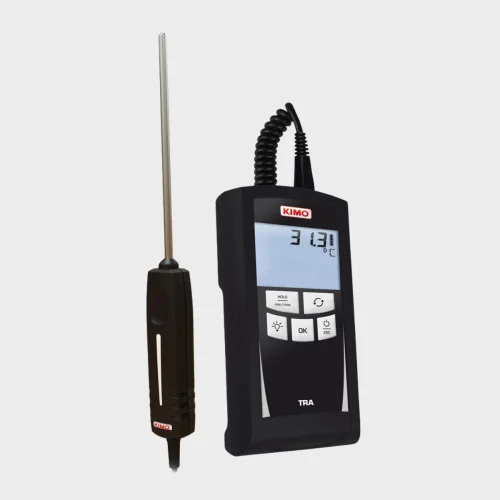

THERMOMETER | -50/250°C
Specifications
Robust and rapid
- Large backlit digital display
- Range: -100 to 400°C ± 0.3°C (depending on the probe)
- Resolution: 0.1°C
- With PT100 stainless steel probe -50 +250°C – 150 mm (Ref. F007.253.4229)
- Function Hold, mini, maxi
- IP 54
Supplied with:
Alkaline battery 9V
Carrying case
F007.253.4214
THERMOMETER | -50/250°C
Specifications
Digital electronic thermometer
Robust and rapid
- Large backlit digital display
- Range: -100 to 400°C ± 0.3°C (depending on the probe)
- Resolution: 0.1°C
- With PT100 stainless steel probe -50 +250°C – 250 mm (Ref. F007.253.4230)
- Function Hold, mini, maxi
- IP 54
Supplied with:
Alkaline battery 9V
Carrying case
F007.253.4216

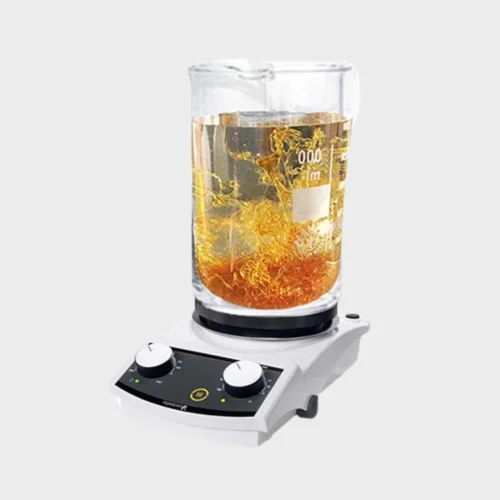

SOAP SOLUTION KIT | 2L | BASIC
Specifications
BASIC kit for the preparation of soap solutions for simplified lab pilot (volume 2L)
Specifications:
- Heating magnetic stirrer Heidolph-Analogic (800W, 100 to 1400 rpm, 20 to 300°C)
- 2 x Glass beaker 2L
- 1 x Magnetic bar 55×8 mm
- 1 x magnetic bar extractor
- 2 x 10-ml glass pipettes with safety bulb
- 2 x 20-ml glass pipettes with safety bulb
- 1 x Manual pipetor
Needed:
Precision balance (minimum 3000 g / 0.1 g)
pH-meter and accessories
F044.122.0012

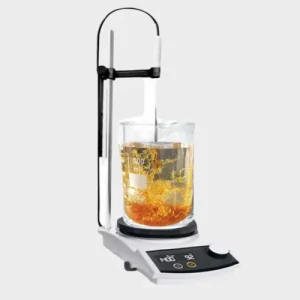

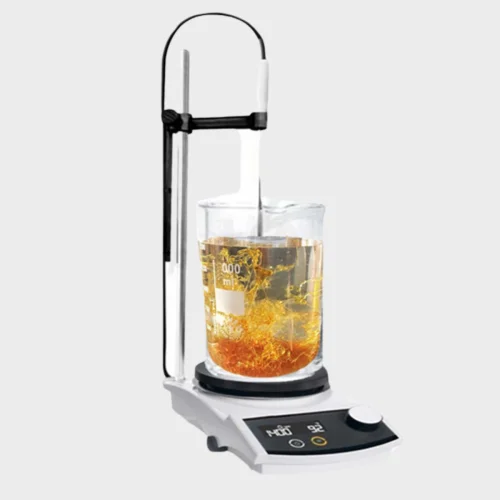

SOAP SOLUTION KIT | 2L | ADVANCED
Specifications
ADVANCED kit for the preparation of soap solutions for simplified lab pilot (volume 2L)
The Digital heating magnetic stirrer equipped with a PT1000 temperature probe allows regulating the temperature directly inside the beaker, thus facilitating emulsifier dissolution and avoiding any damage due to heating. The electronic pipetor allows sampling liquids (emulsifiers, acids, additives) efficiently, in safety conditions.
Specifications:
- Heating magnetic stirrer Heidolph-Digital (800W, 100 to 1400 rpm, 20 to 300°C) + PT1000 temperature probe (with holder) for an accurate control of soap solution temperature
- 2 x Glass beaker 2L
- 1 x Magnetic bar 55×8 mm
- 1 x Magnetic bar extractor
- 2 x 10-ml glass pipettes with safety bulb
- 2 x 20-ml glass pipettes with safety bulb
- 1 x Electronic pipetor
Needed:
Precision balance (minimum 3000 g / 0.1 g)
pH-meter and accessories
F044.122.0022
THERMOMETER | IR | -30/500°C
Specifications
Contactless thermometer to reduce risk
Facilitates the temperature control of bitumen and / or the aqueous phase
Specifications:
- Temperature range: -30°C to 500°C ± 1.5°C
- Display resolution: 0.1°C
- Response time: < 500 ms
- Repeatability of readings: ± 0.8% of readings
- Power supply AA battery
- Battery life 10 hours with laser and backlight
F098.253.0385
Consumables

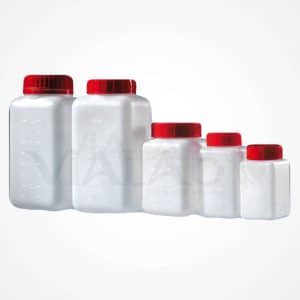

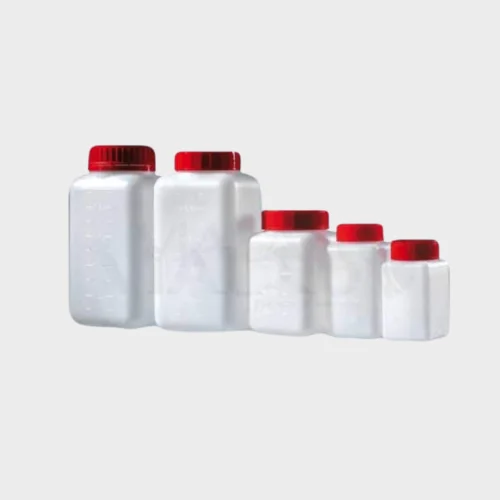

SECURED VIALS | 1000 ml
Specifications
Vials for emulsion sampling in the laboratory or plant
Their large openning together with the double enclosure system are particularly usefull during sampling, storage/archivage or shippment of emulsions.
Specifications:
- High-density polyethylen (HD-PE)
- Height: 187 mm and Ø 58 mm
- Thight and waterproof enclosure with obturator & screw cap (red)
- Sold by box of 90 units
F066.405.1000
SECURED VIALS | 2000 ml
Specifications
Vials for emulsion sampling in the laboratory or plant
Their large openning together with the double enclosure system are particularly usefull during sampling, storage/archivage or shippment of emulsions.
2L: ideal volume to perform all specified tests according to EN 13808 standard
Specifications:
- High-density polyethylen (HD-PE)
- Height: 230 mm and Ø 58 mm
- Thight and waterproof enclosure with obturator & screw cap (red)
- Sold by box of 50 units
F066.405.2000

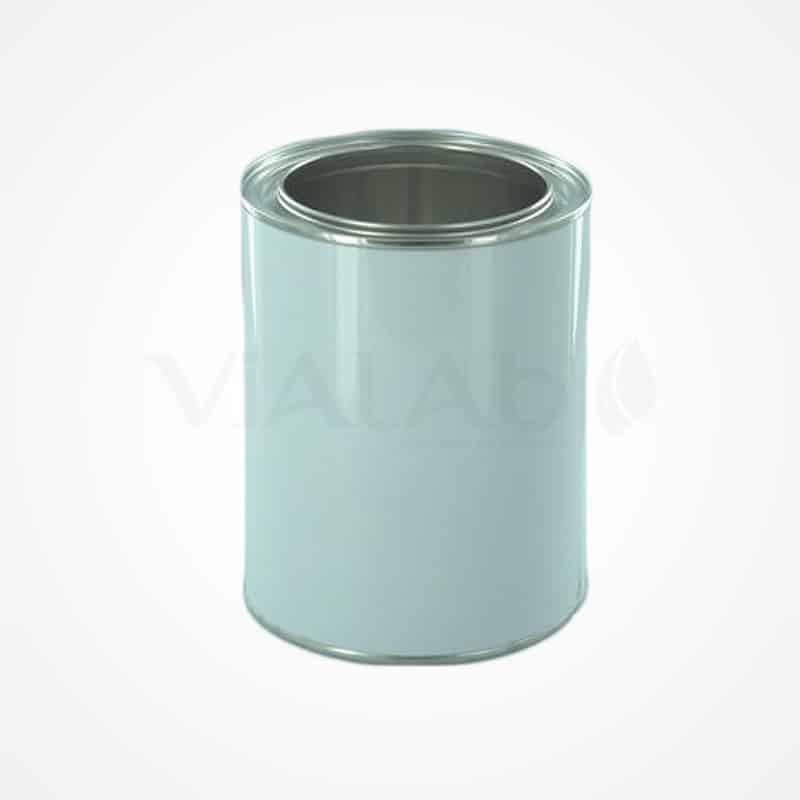

METAL BOX | 1L
Specifications
Rigid, for handling of small quantities of hot bitumen during lab testing
- Ø 109 x 132 mm
- Without varnish
- Without cap
- Pack of 100
F102.405.6410
METAL BOX + COVER | 1L
Specifications
Rigid, for handling of small quantities of hot bitumen during lab testing
Its cap allows storing bitumen samples protected from dust.
- Ø 109 x 132 mm
- Without varnish
- With cap Ø 95 mm
- Pack of 10
F102.405.6411
METAL BOX | 0.75L
Specifications
Rigid, for handling of small quantities of hot bitumen during lab testing
- Ø 99 x 119 mm
- Without varnish
- Without cap
- Pack of 120
F102.405.6407
METAL BOX + COVER | 0.75L
Specifications
Rigid, for handling of small quantities of hot bitumen during lab testing
Its cap allows storing bitumen samples protected from dust.
- Ø 99 x 119 mm
- Without varnish
- With cap Ø 90 mm
- Pack of 120
F102.405.6408

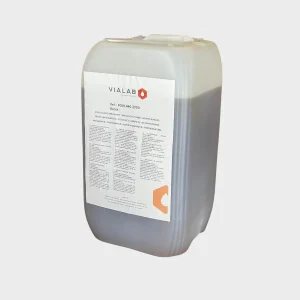

CLEANING AGENT | BIODEGRADABLE | 20 L
Specifications
Completely biodegradable – No toxicity!
Product recommended by us for the maintenance of the laboratory pilots.
A flow-through efficiency equivalent to fuel oil, ideal for:
- Metal parts with bitumen
- Metal parts with greases
- Laboratory glassware with emulsion or bitumen
- Soiled clothes
- Dirty gloves
- Soiled shoes
- Bitumen filter
- Glassware and other laboratory equipment
Specifications:
- Based on new generation plant esters (very low odor)
- Flash point in a closed cup: 185 ° C
- Auto-ignition point:> 300 ° C
- Freezing point: <-18.5 ° C
- Ready to use
- Improves safety at work
- 20L can
F058.440.3900
