IATROSCAN® MK7s TLC-FID
Steps of an analysis
- Solubilization of the bitumen
- Sample spotting on the Chromarods
- Separative chromatography of the rods with the appropriate solvents
- Analysis of the Chromarods in the IATROSCAN®
- Data recovery and analysis with the Azur software

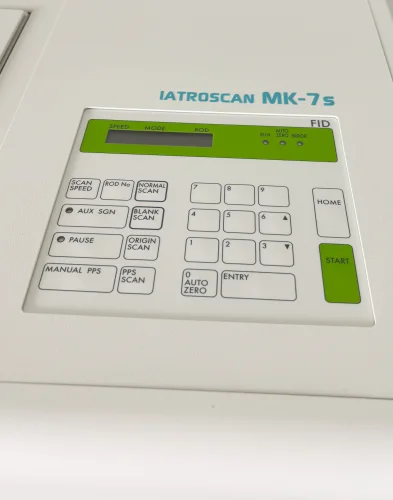

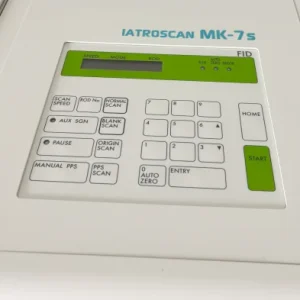

Control panel
- Configuration of the analysis (speed, mode, number of Chromarods)
- Start and Stop buttons to monitor the analysis
- Blank scan to clean the Chromarods

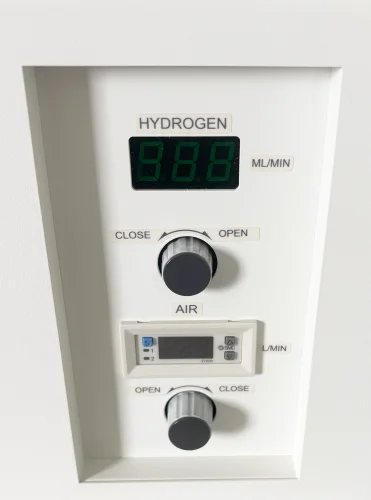

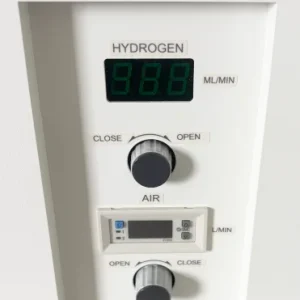

- Monitoring of the hydrogen flow from 0 to 200 mL/min
- Monitoring of the air flow from 0 to 3 L/min
Analysis chamber
- Flame Ionization Detector (FID)
- Types of pyrolysis : Normal, Partial, Origin, Blank
- Robotic system that guides the frame holding the Chromarods for selective burning
- 6 possible reading speeds (from 25 to 60 sec/rod)
- Hydrogen-flow and Air-flow meters
Specifications
- Dimensions (LxDxH) : 52x43x26.5 cm
- Weight : 25 kg
- Powering : 110/120 | 220/240 V | 50/60 Hz
Comes with :
- 1 Hydrogen supply steel hose (2 m) with coupling
- 1 signal capture cable
- 1 power cord
- 1 set of fuses
- 1 French and English user manual
F214.136.6000
Options & Accessories

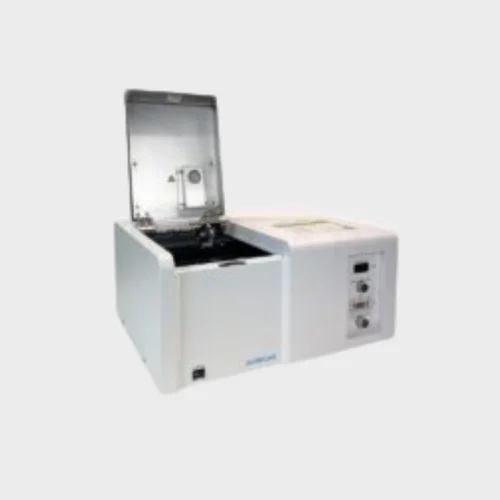

FLAME PHOTOMETRIC DETECTOR (FPD)
Specifications
Flame Photometric Detector (FPD)
Additional detection of
- Sulfur
- Phosphorus
Requires 2-port AZUR® Software licence
F214.136.6002

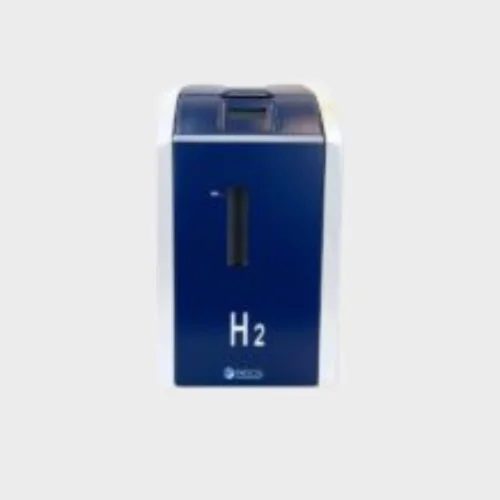

H2 GENERATOR | COSMOS MD
Specifications
Hydrogen generator for IATROSCAN®
- Uses deionized water (conductivity < 0.1 μS)
- Titanium proton exchange membrane
- Flow of 260 mL/min
- Pressure of 0 to 7 bar
- Purity > 99.99%
- Drying with dessicating capsule
- Water tank of 2.3 L
- Touch screen displaying the status and corresponding values
Specifications
- Dimensions (LxDxH) : 27x38x44 cm
- Weight : 18 kg
- Powering : 220-240V | 50 Hz
F214.136.6030
AZUR® SOFTWARE LICENCE | 1 PORT (FID)
Specifications
Functions
- Signal recording and real-time visualization
- Trigger of the recording at analysis launch
- Identification and quantification of the peaks
- Automatic or manual peak integration
- Programmable analysis methods
Comes with
- RICK Aquisition module (1 port)
- Analog-to-digital converter
- Necessary cables to connect to the IATROSCAN®
- User guide
F214.136.6010
AZUR® LICENCE | 2 PORTS (FID-FPD)
Specifications
Functions
- Signal recording and real-time visualization
- Trigger of the recording at analysis launch
- Identification and quantification of the peaks
- Automatic or manual peak integration
- Programmable analysis methods
Comes with
- RICK Aquisition module (2 ports for FPD option)
- Analog-to-digital converter
- Necessary cables to connect to the IATROSCAN®
- User guide
F214.136.6011

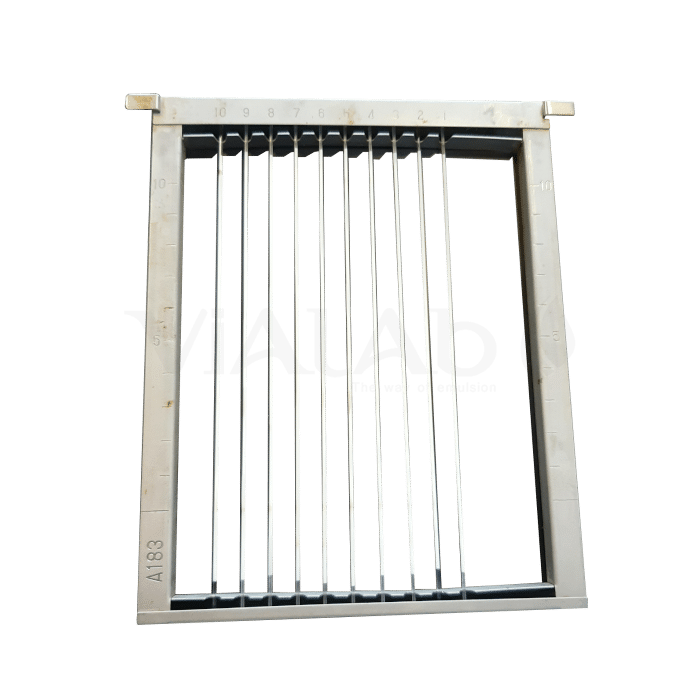

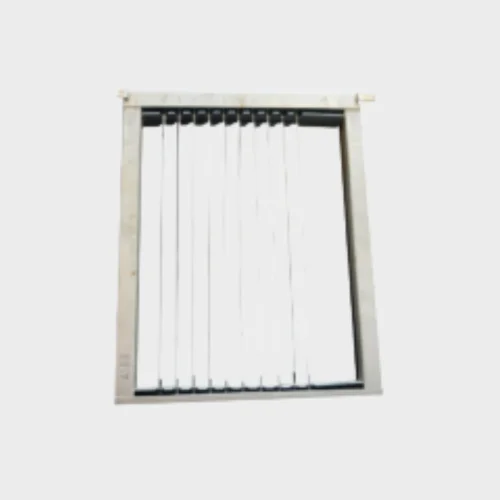

FRAME SD6 HOLDING THE RODS
Specifications
Necessary to hold the Chromarods in the chamber of the IATROSCAN®
- 10 spaces for the Chromarods
- The rods are placed carefully with the according clamp
- A clip secures the roads and holds them in place
F214.136.6014

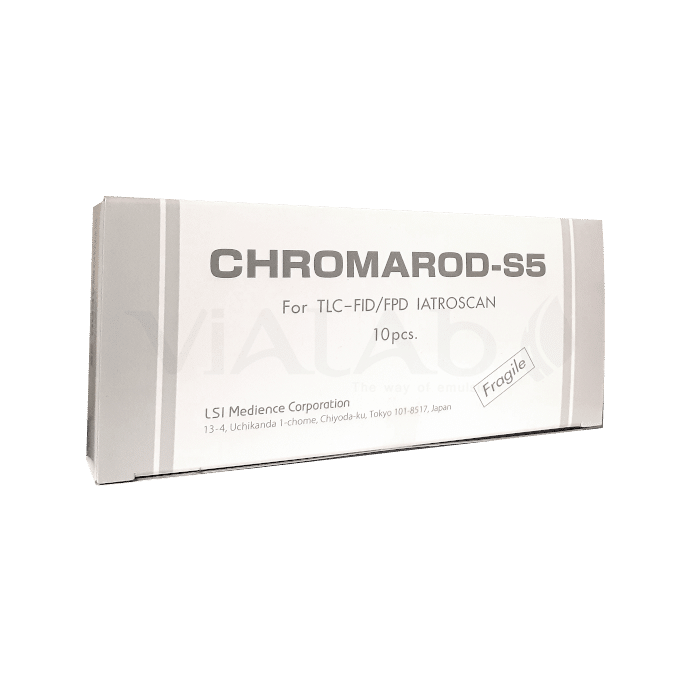

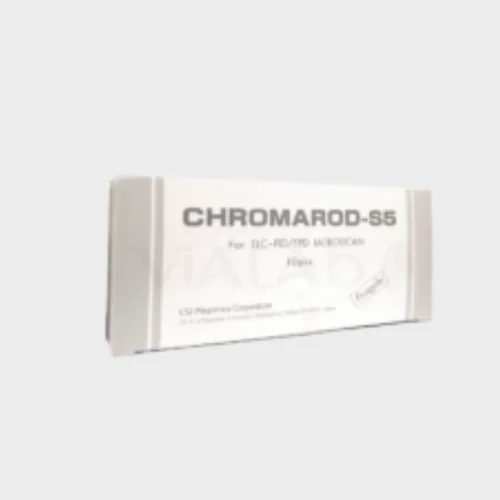

CHROMARODS S5 | 10 RODS
Specifications
Necessary to conduct an analysis with the IATROSCAN®
- Quartz rods coated with silica
- 10 rods per box
- Reusable after blank burning scan
- Resist weak bases and acids
F214.136.6015

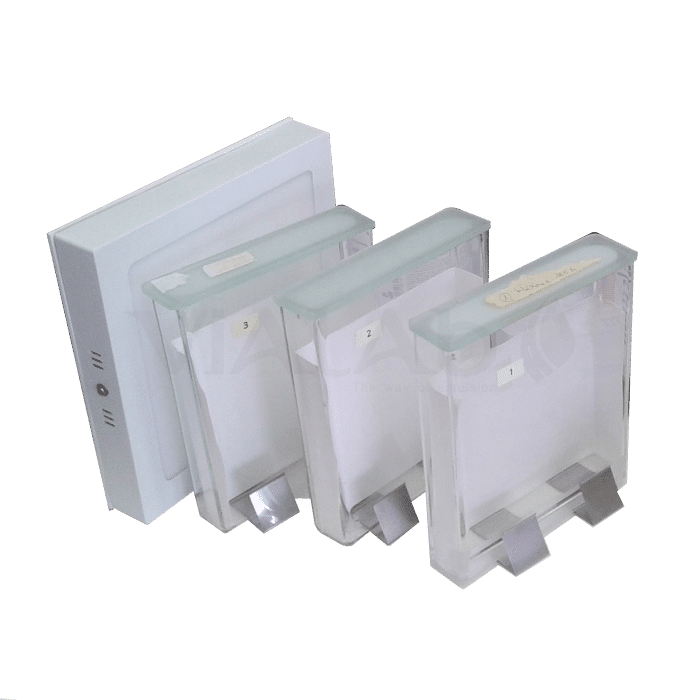

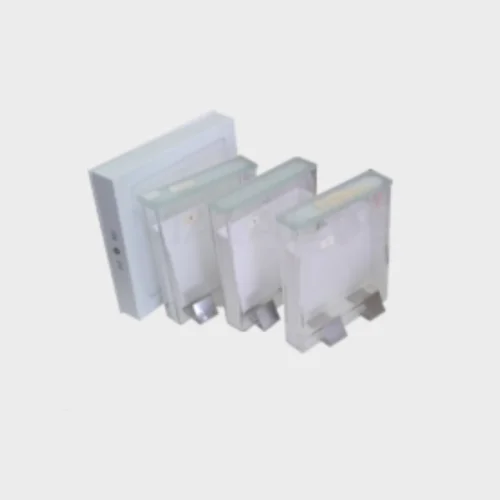

ELUTION TANK DT150
Specifications
Necessary to conduct the elution of the samples on the rods
- Glass tank with lid and metal stems
- Dimensions (LxDxH) : 14×2.5×17
- 70 mL of solvent recommended for the elution
- Filter paper needed for homogenous elutions
F214.136.6021

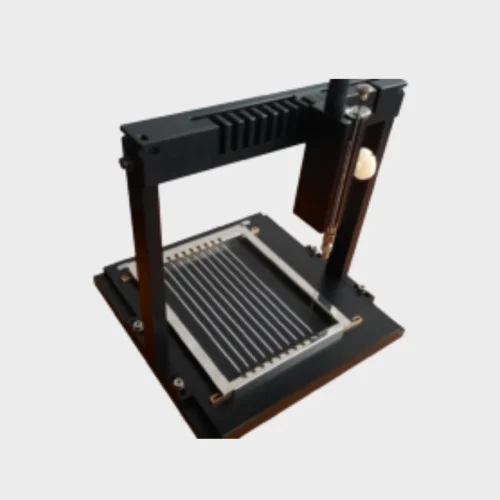

SPOTTING GUIDE | MANUAL
Specifications
Recommended for precise spotting on the rods
- Secures the SD6 frame and holds it in place
- Designed to allow for repeatable spots
F214.136.6020

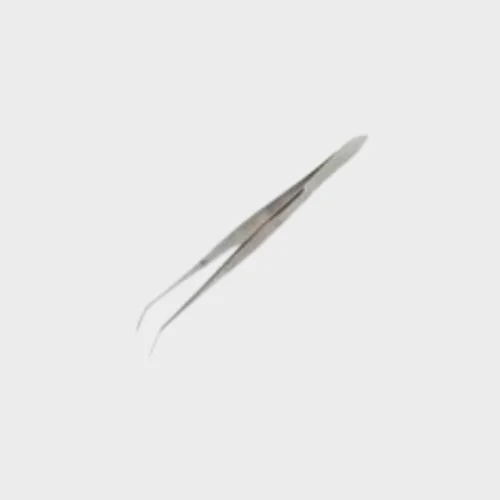

CLAMP FOR ROD HANDLING
Specifications
Recommended to carefully handle the rods and preserve their silica coating
F214.136.6016

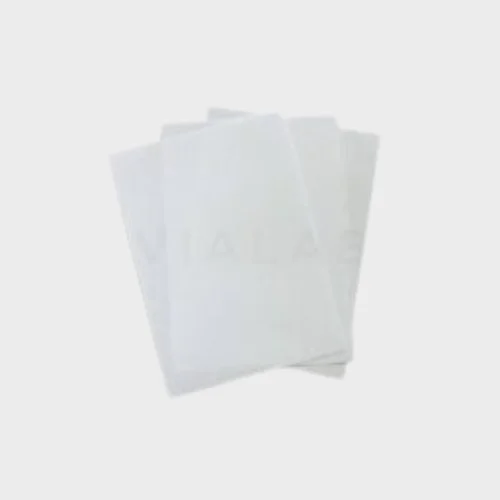

FILTER PAPER FOR ELUTION TANK
Specifications
Necessary to allow for homogenous elutions in the DT150 tank
- Pre-cut to the dimensions of the DT150 tank
F214.136.6022

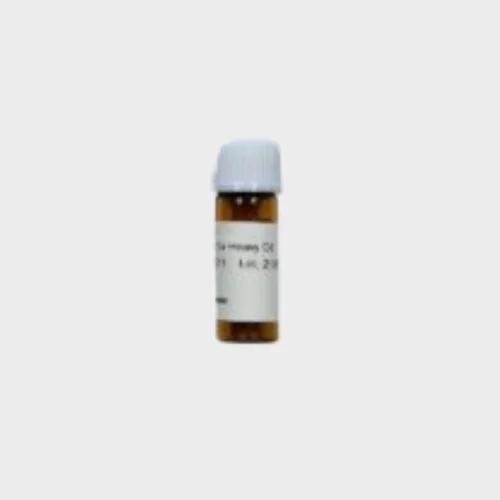

SULFUR POSITIVE CONTROL
Specifications
Necessary to assess sulfur presence in combination with FPD option
- 1 mL heavy oil
F214.136.6024

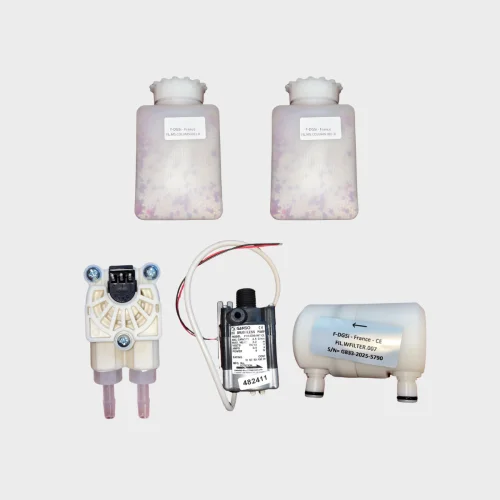

Year Maintenance Kit | Hydrogen Generator | 260 mL/min
Specifications
Annual Maintenance Kit for Hydrogen Generator
- Water filter x2
- Refill kit for 3 desiccant cartridges
F214.136.6028.KIT1AN
Year Maintenance Kit | Hydrogen Generator | 260 mL/min
Specifications
Biannual Maintenance Kit for Hydrogen Generator
- Water filter x2
- Refill kit for 3 desiccant cartridges
F214.136.6028.KIT2AN
