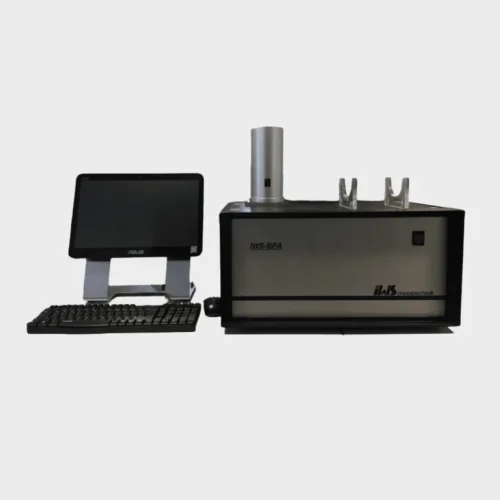

FRAASS DEVICE | AUTOMATIC
For automatic determination of the breaking point of bitumen
EN 12593 | DIN 52012 | IP 80 | JIS K2207
Specifications (Without cryostat)
- Sample cooling by Peltier elements + hydraulic circuit
- Configurable flex system
- Automatic rupture detection
- Control of the procedure by microprocessor
- Camera for operating the instrument and viewing parameters
- Recording and saving of test curves to analyze
- Connected to mains water at 17 ° C, the device can reach -20 ° C.
- Note: for extreme temperatures (reduced to -20 ° C), provide a cryostat.
- CE standards
Included accessories
- ASUS control tablet
- Control and operating software
- Internal viewing camera
Accessories not included
- Electric melter

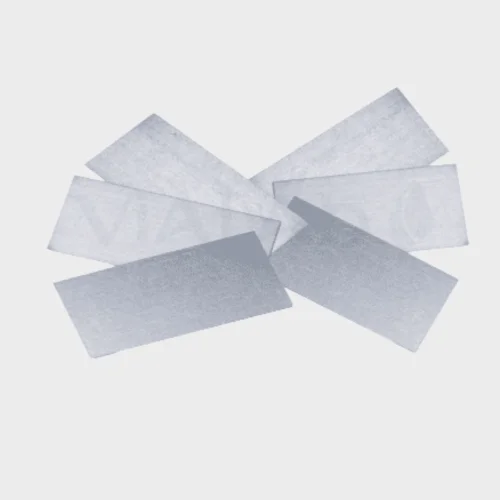

- Sample test blades
- Gripper
- Calibration kit
- Additional glass test chamber
- Glycol (for low temperatures)
F075.138.0460
Accessories & Options

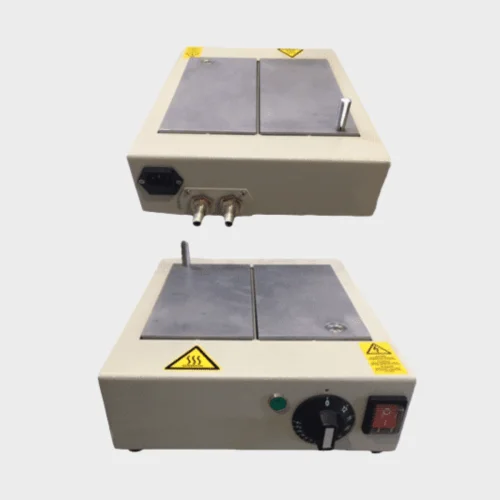

BLADE PREPARATION MELTER
Specifications
- Device for making binder plates for Fraass test
- Enclosure with 2 aluminum plates 140 x 100 mm
- One plate has connecting pipes for water cooling and is used to cool the binder plates.
- A second heating plate includes an electrical resistance for heating the test slides
F047.138.22800

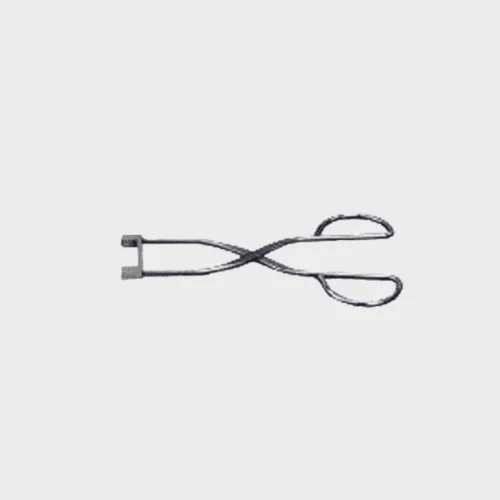

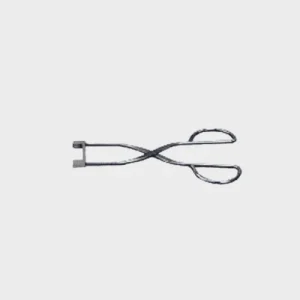

GRIPPER
Specifications
- For placing Fraass test plates in the rupture test device
- Opening of grippers specific to handling
F047.138.22750

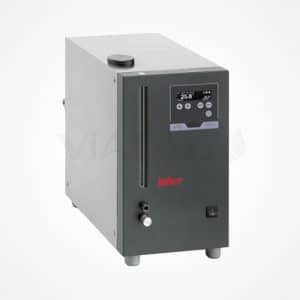

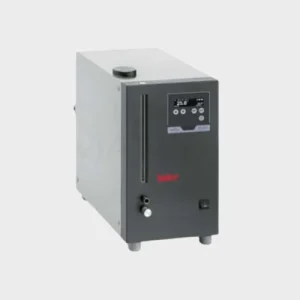

CRYOSTAT
Specifications
High efficiency closed circuit cooler
- Connect to the automatic Fraass device to reach temperatures below -40°C.
- 200 W cooling power at 0°C
- Regulation accuracy at +/- 0.05°C
- Air cooling
- Simplified configuration by integrated LED screen
- Stainless steel structure
- Delivery power: 14 l / min and 0.25 bars
- Suction power: 10.5 l / min and 0.17 bars
- Max. Capacity : 2.6 L (min. 1.4 L)
- Dimensions: 225 x 360 mm
- Power supply: 230 VAC 50/60 Hz
- Provide suitable heat transfer fluid
F077.125.0300

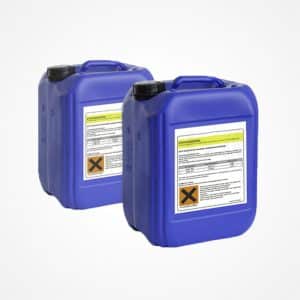

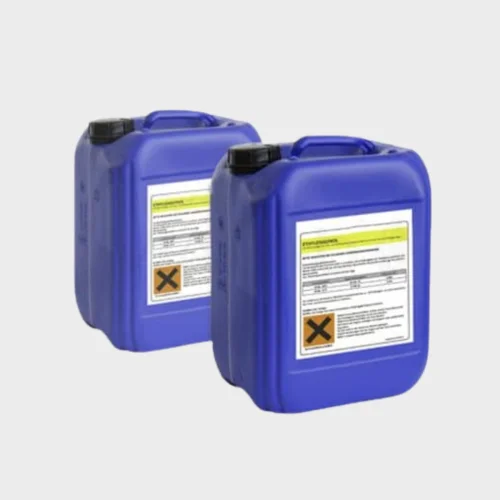

GLYCOL | 5 Litres
Specifications
- Drum of Monoethylene Glycol
- Much less hygroscopic than silicone oils.
- Volume 5 L
- Antifreeze mixed with water
- 40/60 (Glycol: water; v / v) for -20 ° C
- Recommended for cryostat F077.125.0300
F077.125.0310
TEST CHAMBER TUBE | FRAASS
Specifications
- FRAASS Automatic Test Chamber Tubes
- Replacement glass tubes
F075.138.0462
