A COMMON PHILOSOPHY
With RHEOTEST, we share the same philosophy : provide our industries with the best solutions and keep close contact with our customers to best suit their needs. Just like VIALAB, RHEOTEST is a team of experts that perpatuates a know-how based on more than 90 years of experience.
Today, we combine our forces to provide you with a complete range of rheometers to evaluate the viscoelastic properties of your binders.
- Functions : DSR, MSCR, BTSV, Superpave grade determination, Dynamic viscosity, Non-Newtonien behavior, Thixotropy ;
- Robustness : Ball-bearing system, a reliable technology that only requires little maintenance ;
- Easy to use : only 2 electrical plugs and distilled water are needed to use the device immediatly ;
- Polyvalence : Measuring devices can be easily switched to run various tests.

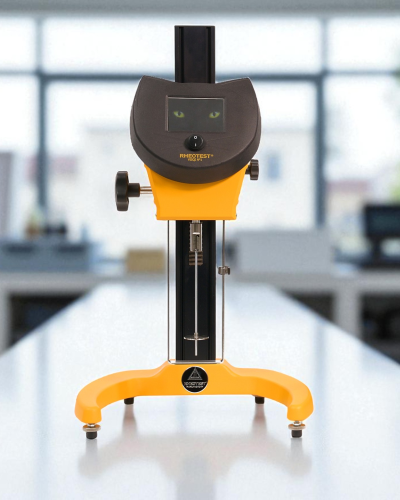

RHEOTEST® Devices
Rheometer RN 5.3 advanced
Characteristics
Rheometer with automatic adjustment of sample thickness and applied normal force.
Compatible with the following standards :
- EN 13302
- EN 13702
- EN 14896
- EN 14770
- EN 16659
- FGSV AL 723 / 722 / 721 / 720
- BTSV (Bitumen typing Fast procedure)
- AASHTO M320
- ASHTO T350
- AASHTO M332
- AASHTO R29
- ASTM D7405 / D4402 / D7175
- AASHTO TP 101
Spécifications :
Specifications:
- Torque: 0.1 to 150 mNm
- Torque resolution: 0.001 mNm
- Rotation speed: 0 to 2000 rpm
- Speed resolution: 0.015 rpm
- Frequency: 0.001 to 100 Hz
- Normal force range: -30 N to 30 N
- Normal force resolution: 0.01 N
- Automatic adjustment of the gap between device and plate
- Gap resolution: 1 μm
- Connection to PC via USB 2.0
- Temperature range, Peltier: – 15°C to 180°C
- Depending on the cooling fluid, contact us for more details
- Total temperature range: – 60°C to +300°C
- External cryostat required for low temperatures
Dimensions and Weight:
- Rheometer: 235 x 240 x 570 mm (WxDxH) | 13.5kg
- General control unit: 130 x 295 x 350 mm (WxDxH) | 9.6kg
- Peltier control unit: 180 x 300 x 460 mm (WxDxH) | 11.5kg
Comes with :
- 1 plate-plate measurement system, tempered by Peltier device
- 2 interchangeable plates, exchange handle, measuring plate P3 (∅ 25 mm), measuring plate P4 (∅ 8 mm)
- 1 set of deburring tools
- 1 set of 10 rubber molds for each diameter (25 mm & 8 mm)
- RHEOTEST RN 5 Manager software
To expect :
- Computer for test management
F429.137.0001
Rheometer RN 5.3 advanced +
Characteristics
Version completed with a kit of cylindrical devices for measuring dynamic viscosity according to standards NF EN 13302, ASTM D4402 and AASHTO T316.
In addition to the RN 5.3 advanced:
- Cylinder Peltier Temperature Control System (PCS)
- Temperature range: -15°C to 180°C
- Depending on the cooling fluid, contact us for more details
- 1 SD1 cylindrical measuring system (∅ 38 mm)
- 1 SD2 cylindrical measuring system (∅ 18 mm)
- 1 G1 measuring cup for SD1
- 1 M2 measuring cup for SD2
Compatible with the following standards :
- EN 13302
- EN 13702
- EN 14896
- EN 14770
- EN 16659
- FGSV AL 723 / 722 / 721 / 720
- BTSV (Bitumen typing Fast procedure)
- AASHTO M320
- ASHTO T350
- AASHTO M332
- AASHTO R29
- ASTM D7405 / D4402 / D7175
- AASHTO TP 101
- With the cylindrical measuring system :
- EN 13302
- GOST 33137
- ASTM D4402
- ASTM D2493
- AASHTO T316
- AASHTO TP4
F429.137.0002
Rheometer RN 4.3
Characteristics
Rheometer with manual adjustment of sample thickness and applied normal force.
Compatible with the following standards :
- EN 13302
- EN 13702
- EN 14770
- EN 16659
- FGSV AL 723 / 722 / 721 / 720
- BTSV (Bitumen typing Fast procedure)
- AASHTO M320
- ASHTO T350
- AASHTO M332
- AASHTO R29
- ASTM D7405 / D4402 / D7175
- Avec le dispositif cylindrique (à commander séparément) :
- EN 13302
- GOST 33137
- ASTM D4402
- ASTM D2493
- AASHTO T316
- AASHTO TP4
Specifications:
- Torque: 0.1 to 150 mNm
- Torque resolution: 0.001 mNm
- Rotation speed: 0 to 2000 rpm
- Speed resolution: 0.015 rpm
- Frequency: 0.001 to 100 Hz
- Manual adjustment of the applied normal force
- Manual adjustment of the gap between device and plate
- Connection to PC via USB 2.0
- Temperature range, Peltier: – 15°C to 180°C
- Depending on the cooling fluid, contact us for more details
- Total temperature range: – 60°C to +300°C
- External cryostat required for low temperatures
Dimensions and Weight:
- Rheometer: 235 x 240 x 570 mm (WxDxH) | 13.5kg
- General control unit: 130 x 295 x 350 mm (WxDxH) | 9.6kg
- Peltier control unit: 180 x 300 x 460 mm (WxDxH) | 11.5kg
Comes with :
- 1 plate-plate measurement system, tempered by Peltier device
- 2 interchangeable plates, exchange handle, measuring plate P3 (∅ 25 mm), measuring plate P4 (∅ 8 mm)
- 1 set of deburring tools
- 1 set of 10 rubber molds for each diameter (25 mm & 8 mm)
- RHEOTEST RN 5 Manager software
To expect :
- Computer for test management
F429.137.0003
DEMONSTRATION
Cumables & Accessories
MOLDS ∅ 8 AND 25 MM
Characteristics
Pack including :
- 1 mold for the preperation of ∅ 8 mm samples
- 1 mold for the preperation of ∅ 25 mm samples
CONSULT US
