Automatic Ball & Ring | Simple

The test is about determining the softening point of bitumen and bituminous binders for temperatures ranging from 28 °C to 150 °C. Two horizontal bitumen rings, molded in shouldered brass are heated in a liquid bath with a controlled temperature rise of +5°C per minute, while each supports a stainless steel ball of defined size and weight .

The final softening point value is the average of the temperatures at which the two rings soften enough to allow each ball, wrapped in bituminous binder, to get in contact with the bottom plate (25 ± 0.4 mm below the rings).

Our advice : This device is an intermediate between the manual set and the Performance model. The Simple model facilitates the original test, whereas the Performance model is better for repeated test sessions.

EN 1427 | ASTM D36

Products

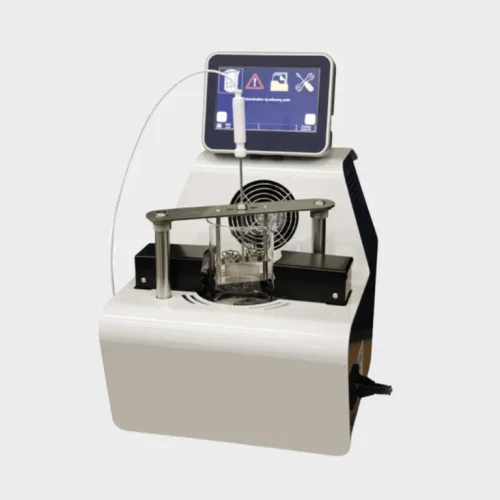

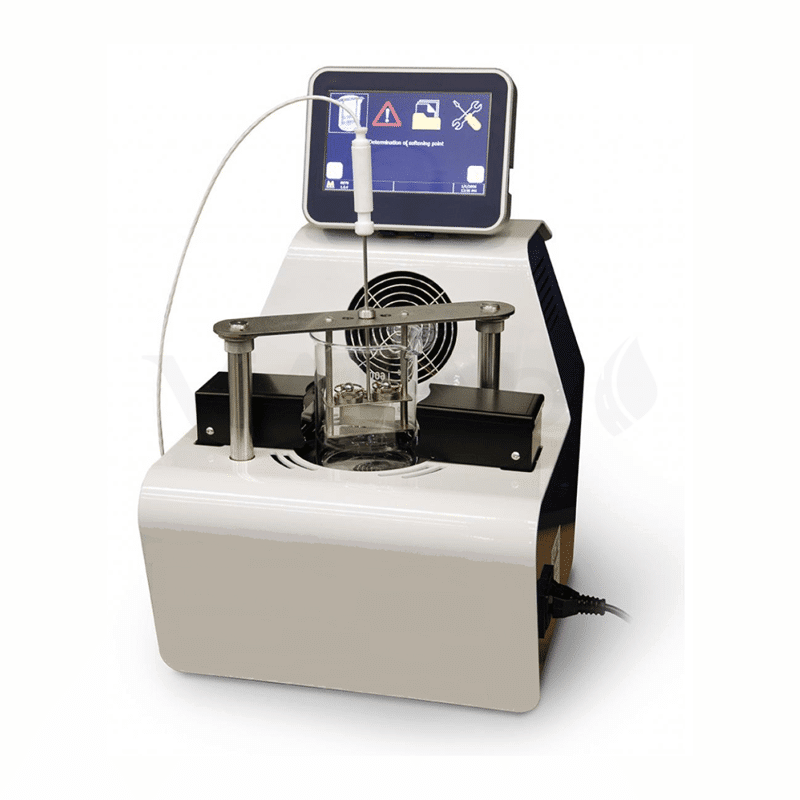

BALL & RING DEVICE | AUTOMATIC

Determination of the softening point of bitumen.

According to standards EN 1427 | ASTM D36 | AASHTO T53

Determination of R&B temperatures in distilled water (30 to 80°C) and glycerol (80 to 150°C)
Ceramic hot plate
Double laser beam for automatic ball drop detection
PT100 probe for controlling the temperature rise ramp (5°C/min)
Microprocessor control
Temperature homogenization by magnetic stirring from 0 to 160 rpm
Cooling system to chain the tests
800×480 pixel color touch screen
Graphic touch interface allowing:
- The configuration of the tests,
- Viewing during testing
- Data recording and analysis
- Export after test (usb)
