Modification of bitumen by polymers – PMB

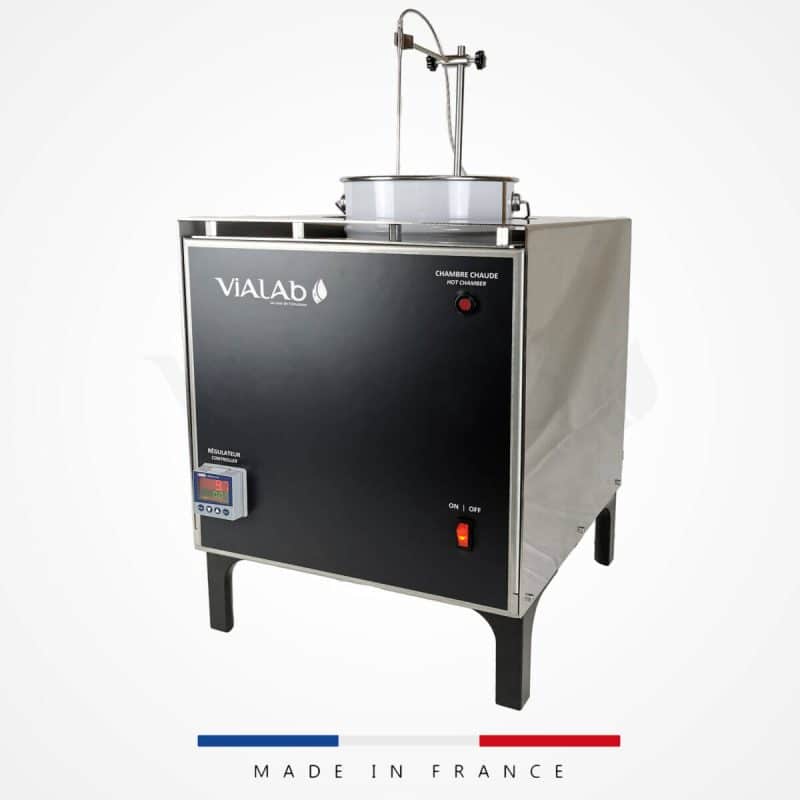

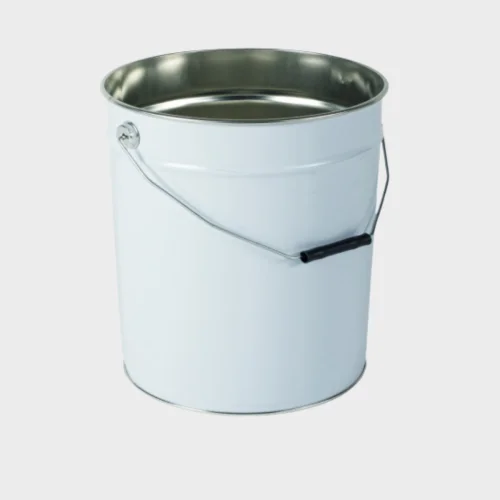

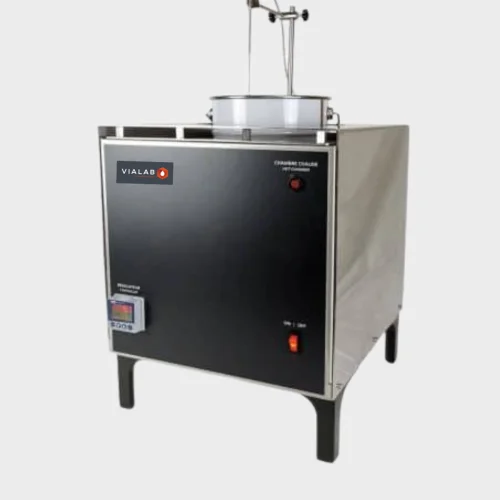

Temperature maintenance of bitumens from 100 to 200 ° C (± 2 ° C) for 3L metal buckets of Ø 180 mm.

• Stainless steel frame
• 1.15 kW heating collar
• Electronic temperature regulator
• External probe PT100 Ø 3 mm | Length 300 mm
• J thermocouple safety probe
• Hot chamber indicator light


Further information :

• Sold in custom wooden crate

• 100% French manufacturing

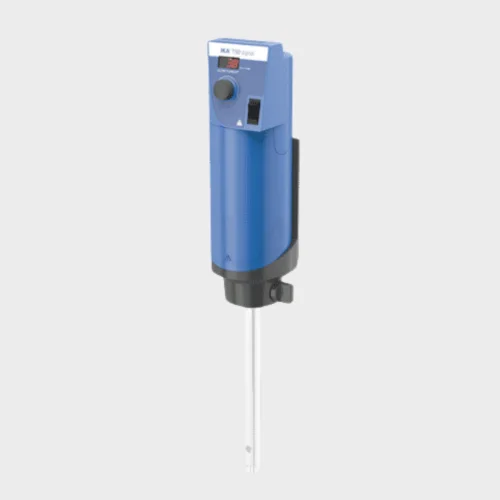

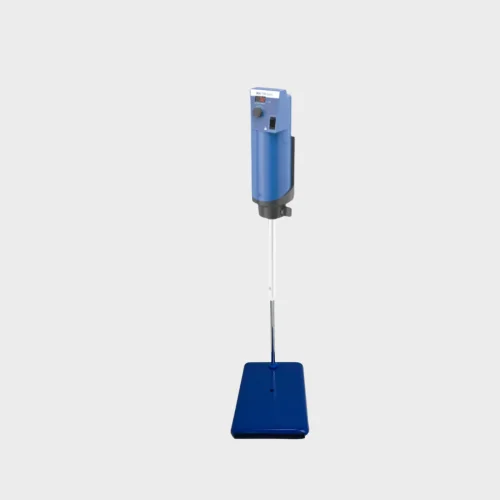

Ideal to disperse elastomers in bitumen

• Digital display of speed
• Electronic cruise control
• Electronic overload protection
• Stainless steel disperse elements can be cleaned quickly and easily
• Soft start
• Error code display
• Absorbed motor power 1100 W
• Motor power output 700 W
• Viscosity max. 5000 mPas
• Speed range 5-10000 rpm
• LED speed display
• Extension arm diameter [mm] 16
• Extension arm length [mm] 220

Especially designed for viscous products – suitable for stirring hot bitumen

• up to 40,000 mPa.s
• 2 hollow shafts for rods up to diam. 8 mm,
• 2 speeds modes according to the axis: from 35 to 2200 rpm
• Deported motor for good tolerance to a warm environment

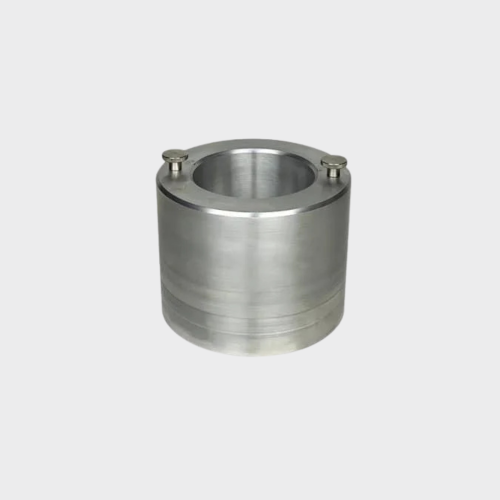

Adapter to quickly switch between 3L and 1L capacities without any tool

• Designed for 1L beakers (150 mm x ∅ 110 mm) and 1L steel containers (132 mm x ∅ 110 mm)
• Aluminum alloy body optimized for thermal diffusion
• Equipped with two knurled screws for easy handling

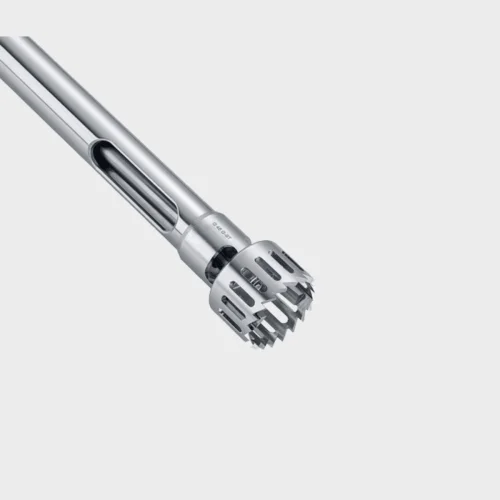

To be used with the low volume dispersing tools for the production of PMB.

• Final fineness of the suspension : 1 to 5 μm
• Stator diameter : 25 mm
• Immersion depth : 40 to 165 mm
• Total length : 194 mm
• Solvent resistant
• Maximum temperature : 180 °C

Recommanded to use the 1 L Adapter.
