Products

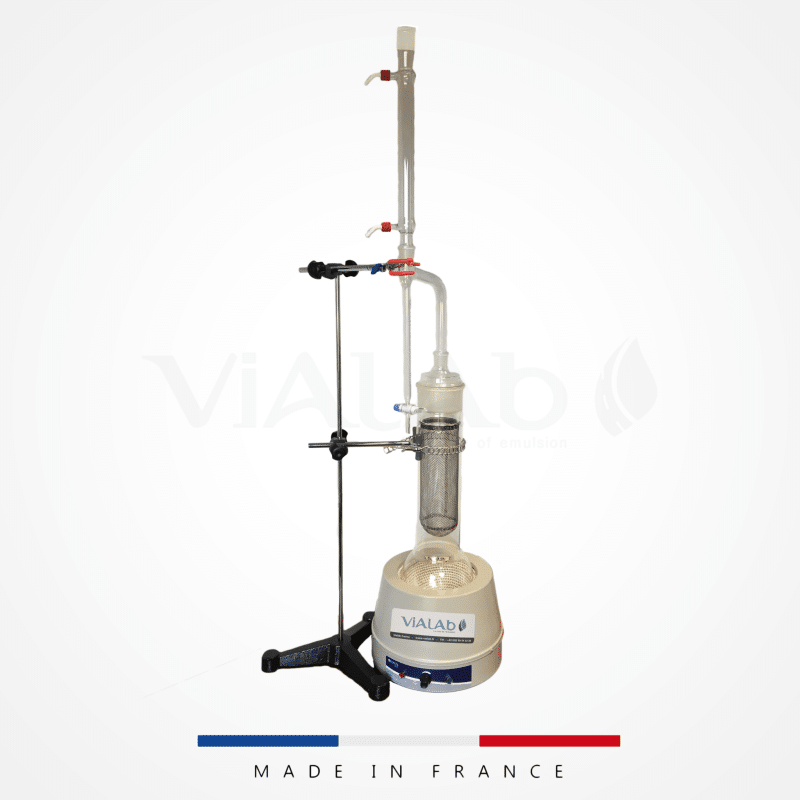

Set KUMAGAWA 2L LCPC | Round bottom
Complete set including:
- Kumagawa extractor 2L DIN 100 (F109.145.2016D)
- Standard (right) cooling tube with GL14 connectors (F109.145.2016D)
- Cover 60/46 (F109.145.2016D)
- 1 2L-balloon heater without agitation (F039.145.5320)
- 1 blue tripod stand with rod 900×10 mm (F039.205.6514)
- 2 Clamping nuts (F039.205.0010)
- 1 BL 3-finger forceps with fixation rod (F039.145.0013)
- 1 stainless steel clamp with fastening pin (F039.205.0145)
- 1 metal basket for cartridges diam. 80 x 250 mm
- 1 Dean Stark collector 25/0.1 ml | Round Bottom (F109.145.0022)
- 1 Curly Stainless steel rod 50 cm (F044.145.1428A.001)
F044.145.2017

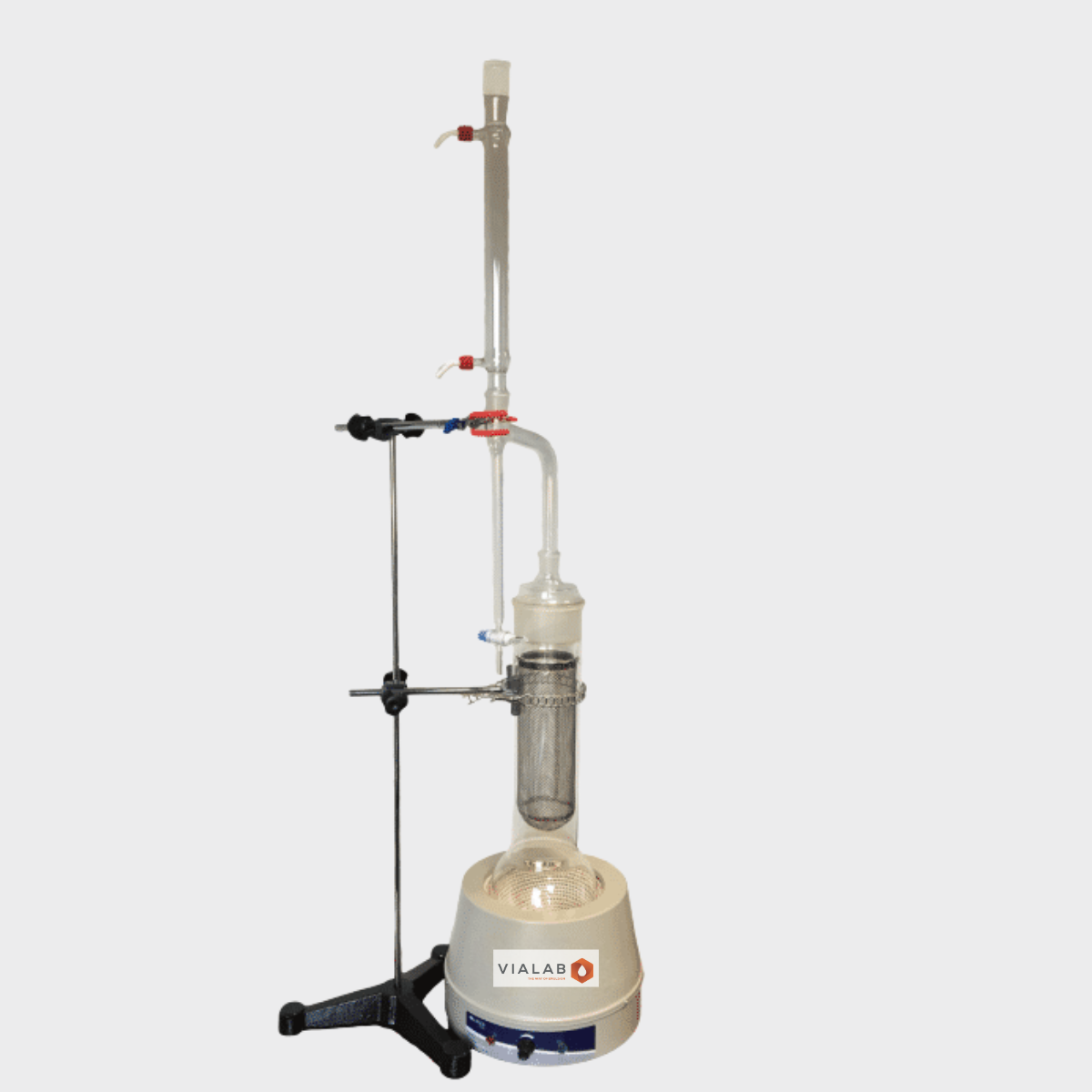

Set KUMAGAWA 2L | LCPC | With tap
Complete set including:
- Kumagawa extractor 2L DIN 100 (F109.145.2016D)
- Standard (right) cooling tube with GL14 connectors (F109.145.2016D)
- Cover 60/46 (F109.145.2016D)
- 1 2L-balloon heater without agitation (F039.145.5320)
- 1 blue tripod stand with rod 900×10 mm (F039.205.6514)
- 2 Clamping nuts (F039.205.0010)
- 1 BL 3-finger forceps with fixation rod (F039.145.0013)
- 1 stainless steel clamp with fastening pin (F039.205.0145)
- 1 metal basket for cartridges diam. 80 x 250 mm
- 1 Dean Stark collector 25/0.1 ml | Tap (F109.145.0026)
- 1 Curly Stainless steel rod 50 cm (F044.145.1428A.001)
F044.145.2020
Accessories & Options
Extractor KUMAGAWA 2L | Standard cooling tube
- Extractor KUMAGAWA 2L DN 100
- Top 60/46
- Cooling tube GL 14 (for ref. F044.145.2017 and .2020; LCPC models)
F109.145.2016D
Dean Stark collector 25 / 0.1 ml round bottom (0 at the bottom)
Dean Stark collector tube conform to the EN 1428 standard:
- Glass tube with Rin 29/32
- Round-bottomed collector tube 25 ml
- Graduation every 0.1 ml (0 at the bottom)
F109.145.0026

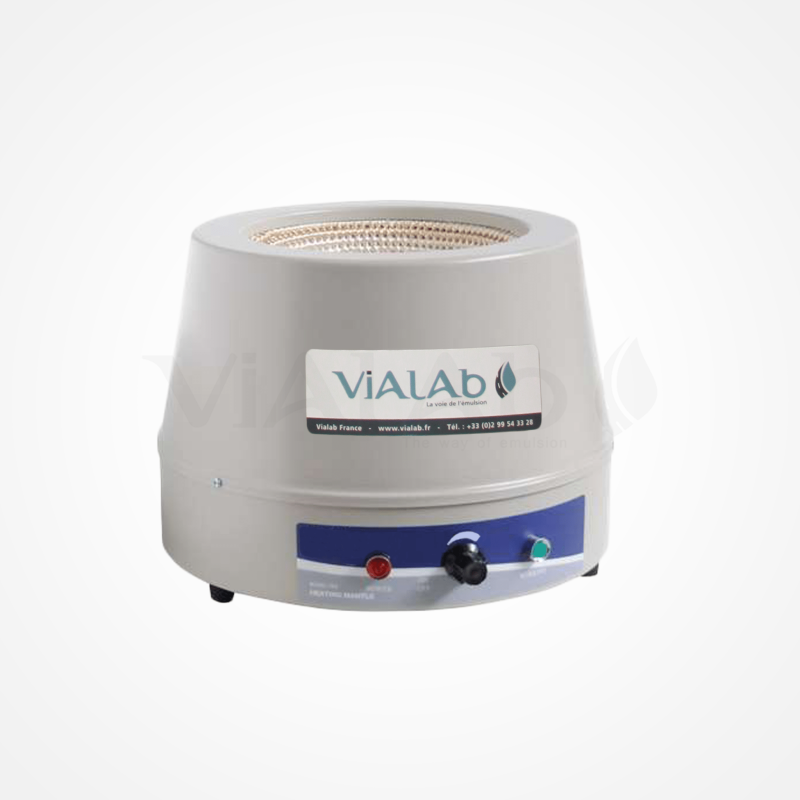

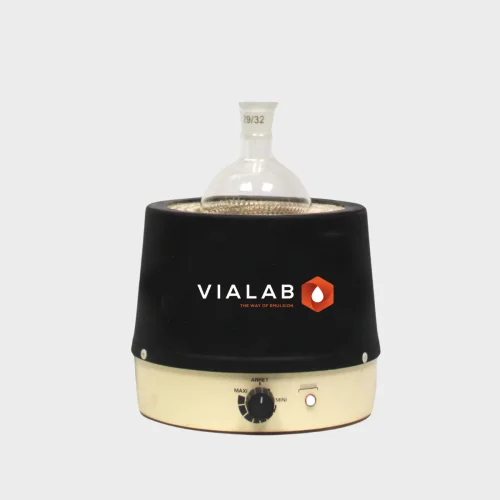

Heater for round-bottom flasks | 2000 ml | Without stirring | Analogic
- Electronic temperature control Up to 450°C at the surface
- Useful volume: 2 Liters
- Internal Ø: 175 mm
- Power: 450 W
- Power supply: 220/230 V / 50 Hz
F039.145.5320

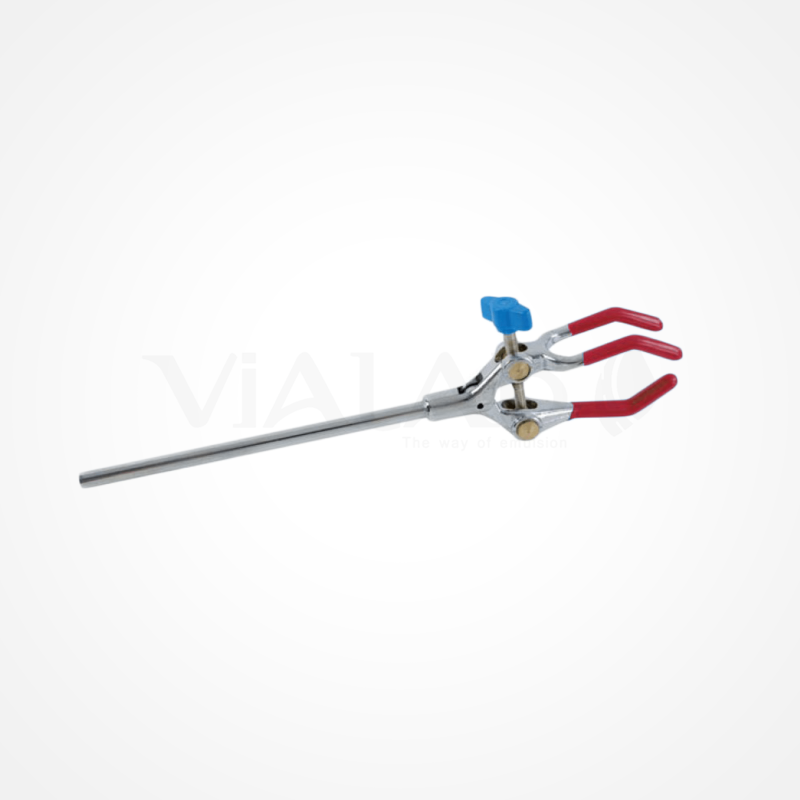

3 fingers clamp BL
- Ecart.0 to 95mm
- Rod diam. 12 mm
- Lenght 140 mm
F039.145.0013

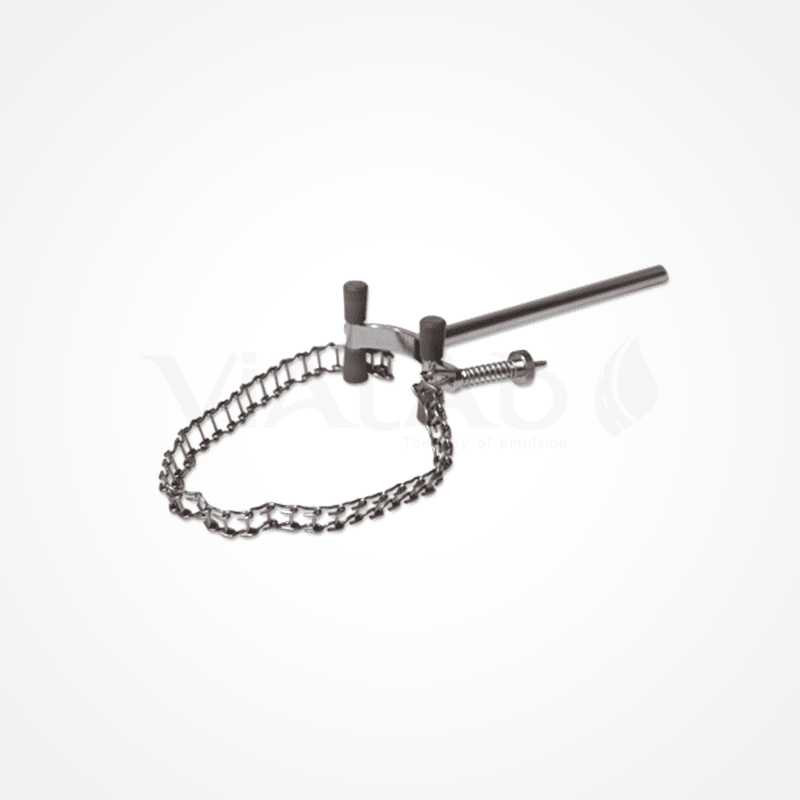

Collar clip in stainless steel (90-145 mm)
- Rod diameter 12 mm x 200 mm
- Stainless steel chain 90-145 mm
F039.205.0145
Double clamping nut
- Maximum opening diameter 16 mm
- 90° Return angle
F039.205.0010
Stainless Steel Rod 50 cm, diam. 1.5 mm for water collection
Stainless steel rod used to collect the water adsorbed within the condenser at the end of the test.
- Diameter: 1.5 mm,
- Length: 50 cm,
- Rounded end.
F044.145.1428A.001
Metallic basket KUMAGAWA for cartridge 80x250 mm
F109.145.2015

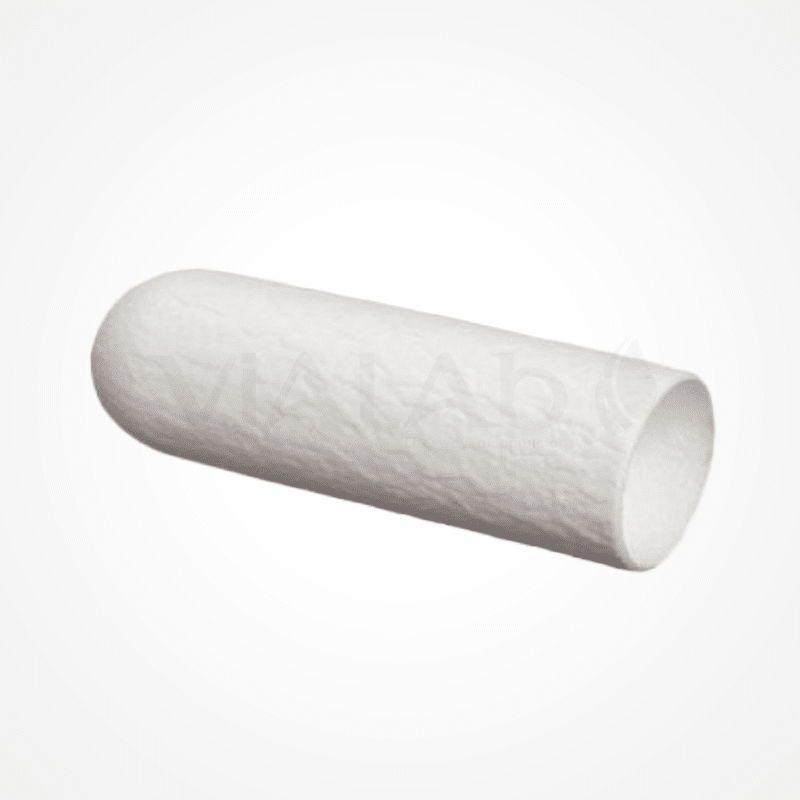

Extraction cartridge
- ø. int. 75 mm
- ø. ext. 80 mm
- Height 250 mm
- Box of 25 pieces
F039.145.8025
