Modification of bitumen by polymers – PMB

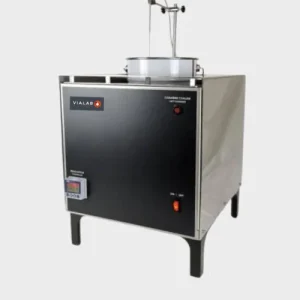

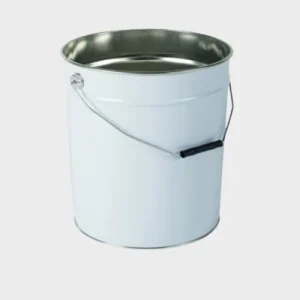

Temperature maintenance of bitumens from 100 to 200 ° C (± 2 ° C) for 3L metal buckets of Ø 180 mm.

• Stainless steel frame
• 1.15 kW heating collar
• Electronic temperature regulator
• External probe PT100 Ø 3 mm | Length 300 mm
• J thermocouple safety probe
• Hot chamber indicator light


Further information :

• Sold in custom wooden crate

• 100% French manufacturing

Ideal to disperse elastomers in bitumen

• Digital display of speed
• Electronic cruise control
• Electronic overload protection
• Stainless steel disperse elements can be cleaned quickly and easily
• Soft start
• Error code display
• Absorbed motor power 1100 W
• Motor power output 700 W
• Viscosity max. 5000 mPas
• Speed range 5-10000 rpm
• LED speed display
• Extension arm diameter [mm] 16
• Extension arm length [mm] 220

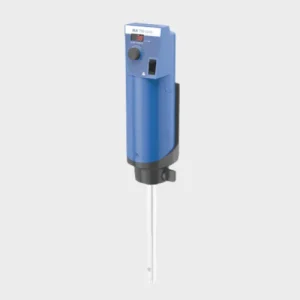

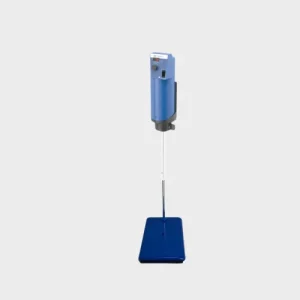

High shear digital disperser for optimal dispersion of polymers in bitumen using the 3L pot heater equipped with its 1L insert.

• Motor power: 800 W
• Min. processing capacity (H2O): 0.001 l
• Max. processing capacity (H2O): 2 l
• Max. viscosity: 5000 mPas
• Speed range: 3000 – 25000 rpm
• Speed display: LED
• Noise level without tools: 75 dB(A)
• Mounting arm diameter: 13 mm
• Mounting arm length: 160 mm
• Supplied with:
• Dispersion tool Small volume | Coarse | Ø 25 mm

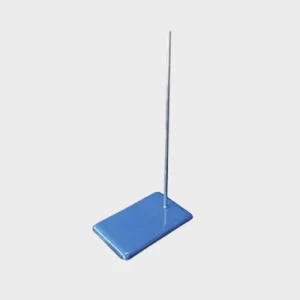

• Stand and nut

High shear disperser | Ideal for dispersing elastomers in bitumen.

• For Ø 45 mm dispersing tool
• Digital speed display
• Electronic speed control
• Electronic overload protection
• Stainless steel dispersing elements can be cleaned quickly and easily
• Soft start
• Error code display
• Motor power consumption 1100 W
• Motor power output 700 W
• Max. viscosity 5000 mPas
• Speed range 5-10000 rpm
• LED speed display
• Extension arm diameter [mm] 16
• Extension arm length [mm] 220

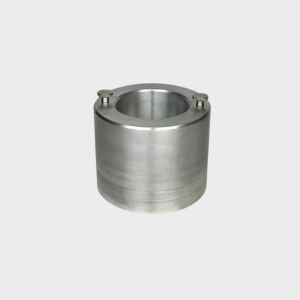

Adapter to quickly switch between 3L and 1L capacities without any tool

• Designed for 1L beakers (150 mm x ∅ 110 mm) and 1L steel containers (132 mm x ∅ 110 mm)
• Aluminum alloy body optimized for thermal diffusion
• Equipped with two knurled screws for easy handling

To be used with the low volume dispersing tools for the production of PMB.

• Final fineness of the suspension : 1 to 5 μm
• Stator diameter : 25 mm
• Immersion depth : 40 to 165 mm
• Total length : 194 mm
• Solvent resistant
• Maximum temperature : 180 °C

Recommanded to use the 1 L Adapter.
