Penetration Power of Bitumen emulsions

Penetration Power of Bitumen emulsions

Determination of penetration power of bituminous emulsions.

This test applies to impregnation emulsions whose main function is to stabilize a so-called closed support. The low viscosity and fine particle size of these emulsions are essential characteristics for the success of the technique. A specified amount of emulsion is poured onto reference fines into a sintered glass column device. The time taken for the emulsion to percolate through the fines is measured.

The reference fines can be replaced by a soil sample from the site.

The EN 12849 standard describes a procedure consisting of mixing 50g of silica sand F34 and 50g of fine siliceous 315-001 to make a single mixture of these two elements for the test with the bitumen emulsion.

EN 12849

Products

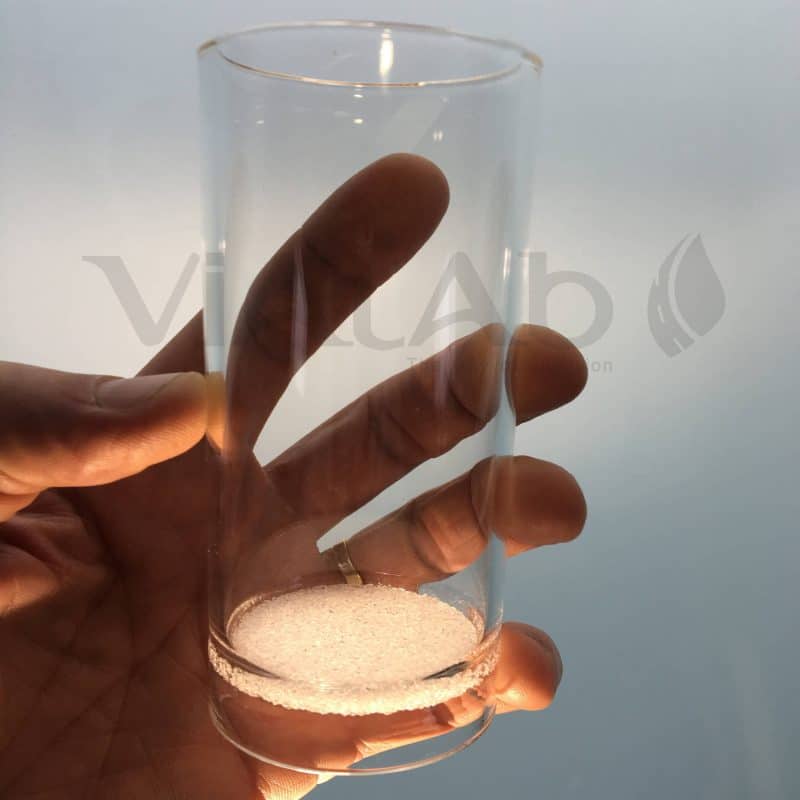

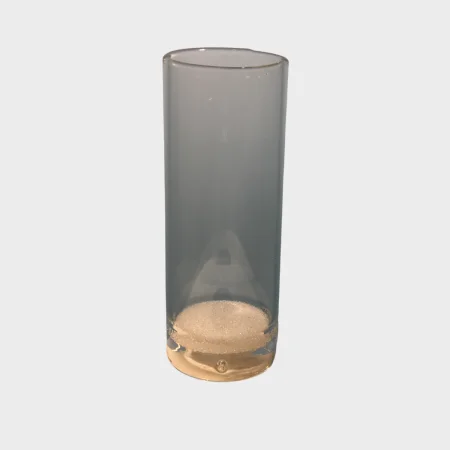

PERCOLATION OR PENETRATION COLUMN FOR BITUMEN EMULSIONS | EN 12849

  • Glass column
  • Inner Ø 41.5 mm
  • Total height about 115 mm

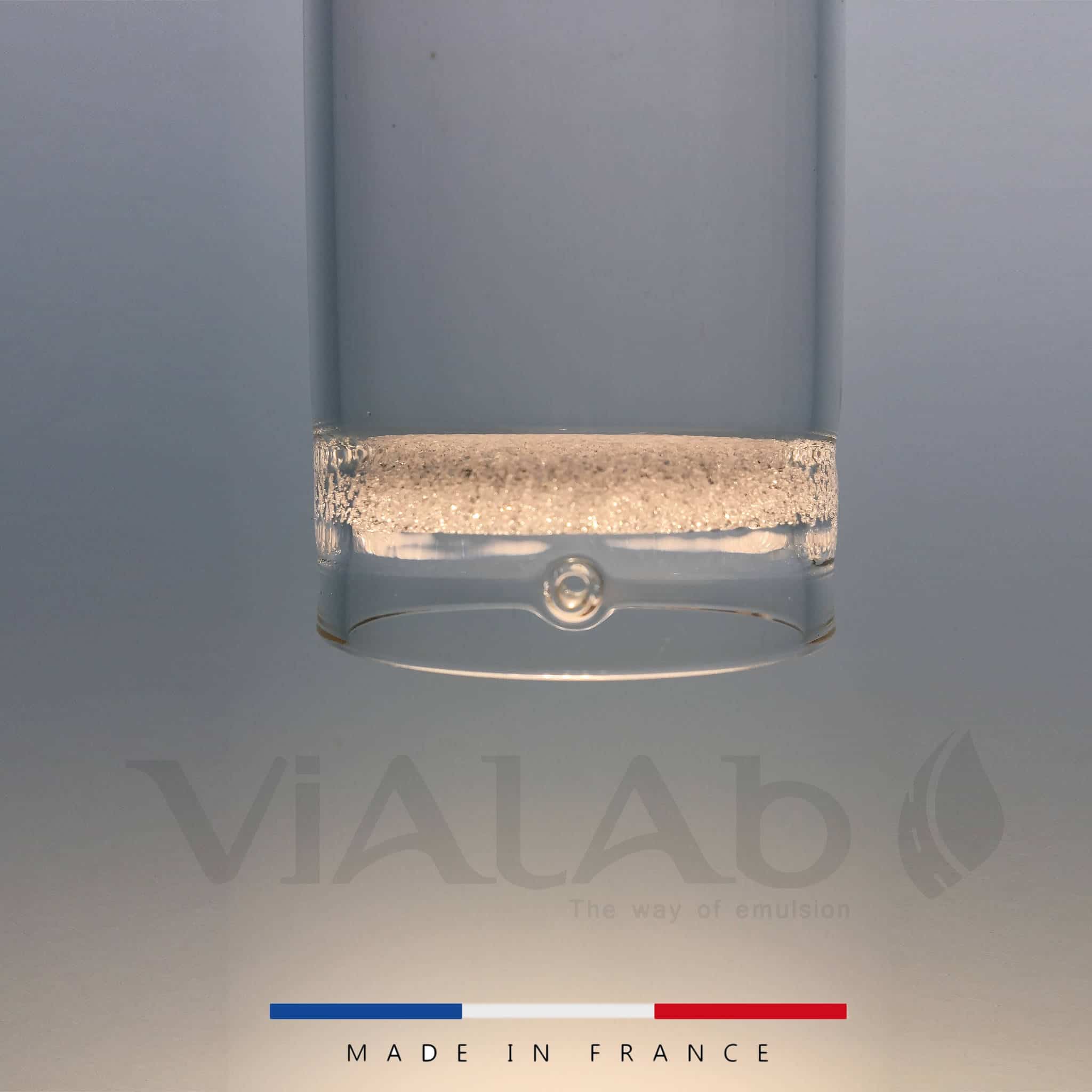

  • 3.5 mm sintered glass filter crucible
  • Sintered glass with porosity 160 to 250 µm
  • Air leakage event
  • Made to measure by a glass craftsman
  • Complies with EN 12849 test standard

To be ordered separately:

  • Fine sand TestQuarz 315-001 – 2.5 kg – EN 12849
  • Silica sand Quarzsand F34 – 2.5 kg – EN 12849
  • Make a single mixture of these two elements for the test
  • Options & accessories to make the mixture

F109.145.0849

Colonne de percolation EN 12849

Consumables

Fines de références

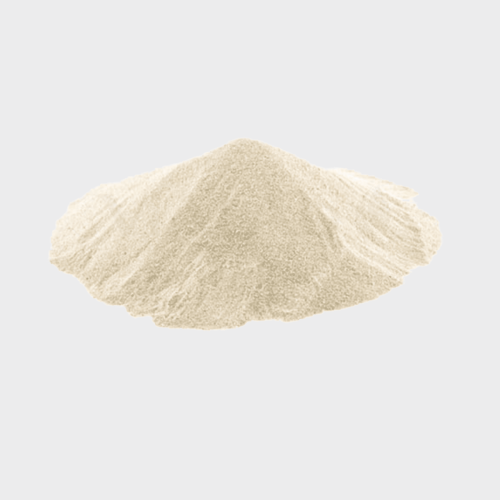

SILICA SAND | QUARZSAND F34 | 2.5 KG

Specifications

  • HDPE Security bottle packaging
  • Grain analysis certificate
  • Safety data
  • Net Weight: 2.5 kg
  • EN 12849

F135.430.0F34

Fines de références

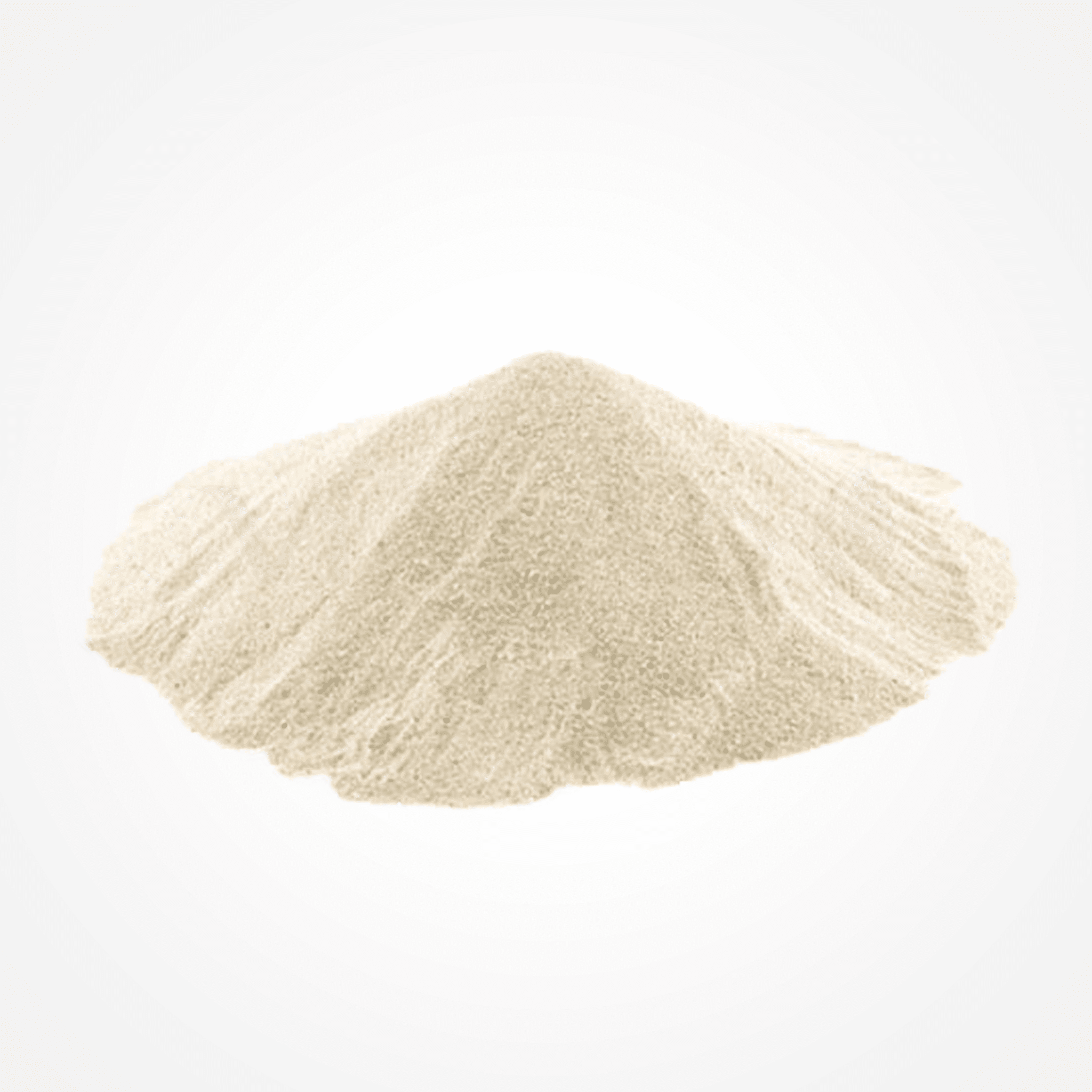

SILICEOUS FINE SAND | TESTQUARZ 315-001 | 2.5 KG

Specifications

  • HDPE Security bottle packaging
  • Grain analysis certificate
  • Safety data
  • Net Weight: 2.5 kg
  • EN 12849

F135.430.0315

Accessories & Options

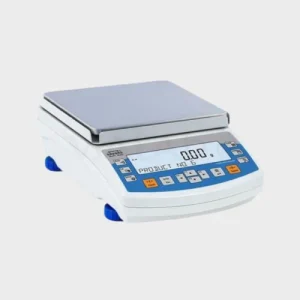

PRECISION BALANCE | 6100 g / 0.01 g

Specifications

  • Range: 6100 g
  • Precision: 0.01 g (10 mg)
  • Plate: 195×195 mm
  • Digital screen / Keyboard
  • Internal calibration
  • Under-balance weighing (density)

F007.130.6100

Étuve universelle ventilée

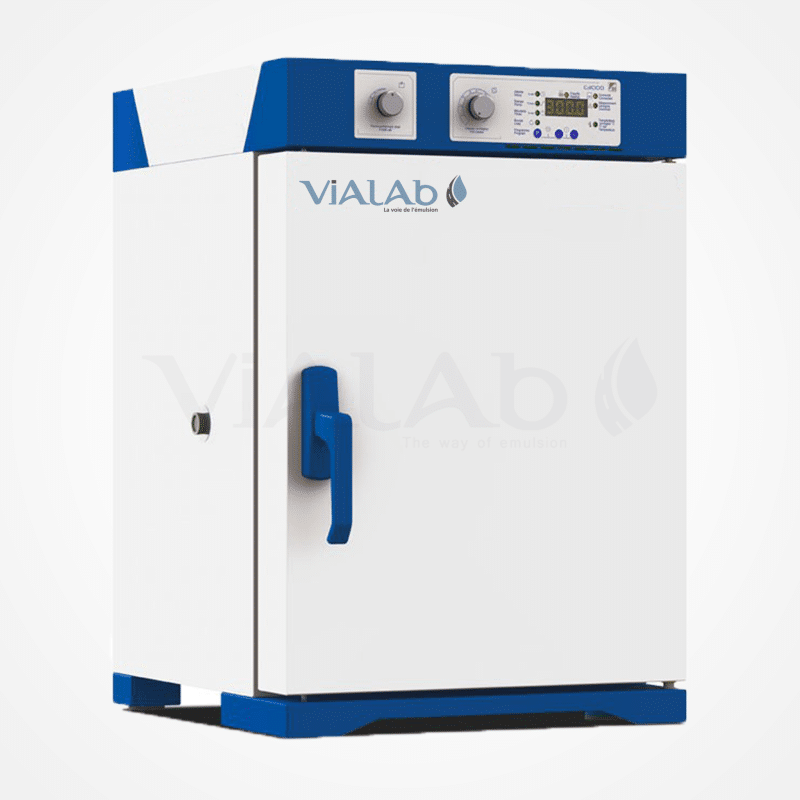

FORCED UNIVERSAL OVEN | 58L

Specifications

  • Chamber volume: 58 liters
  • Homogeneity: <± 1.2 ° C at 105°C
  • Temperature stability: <± 0.2°C
  • Maximum Standard Temperature: 300°C
  • Chamber volume: 58 liters
  • Internal dimensions (W x D x H): 400 x 360 x 400 mm
  • External dimensions (W x D x H): 565 x 602 x 694 mm
  • Number of shelves: 2 delivered / 6 maximum
  • Shelf dimensions: 370 x 330 mm
  • Max Shelf Weight / Total: 30/60 kg
  • Voltage 50 Hz: 230 V Mono
  • Standard heating power 300°C: 1550 Watts
  • Number of doors: 1
  • Motor-Turbine flow: 200 m3 / hour
  • Weight: 58 kg

F038.105.2058

CHRONOMETER 1/100e

Specifications

  • Function date & clock
  • Start – Stop – Reset
  • Capacity 00h00…24h00
  • Precision 1/100e on 30 minutes
  • Memory / 2 Times

F007.255.0017
