VIALIT Cohesion Pendulum

Measurement of the cohesion of bituminous binders in the temperature range between -10 ° C and + 80 ° C. This method also makes it possible to establish the relationship between cohesion and temperature.

Determination of the ability of a binder to withstand the break in mass caused by tearing aggregates under the influence of traffic. A steel cube is glued by a binder film on a steel support. during the shock of a pendulum sheep on the cube, the breakage of the binder film slows the pendulum in its ascent after the impact.

The cohesion is calculated by relating the energy thus opposed by the binder to the surface of rupture.

Cohesion is one of the measures of the performance of a bituminous binder. Originally the cohesion measurement was developed for surface coatings, but this characteristic can be evaluated for any type of binder used for different road applications.

EN 13588

Products

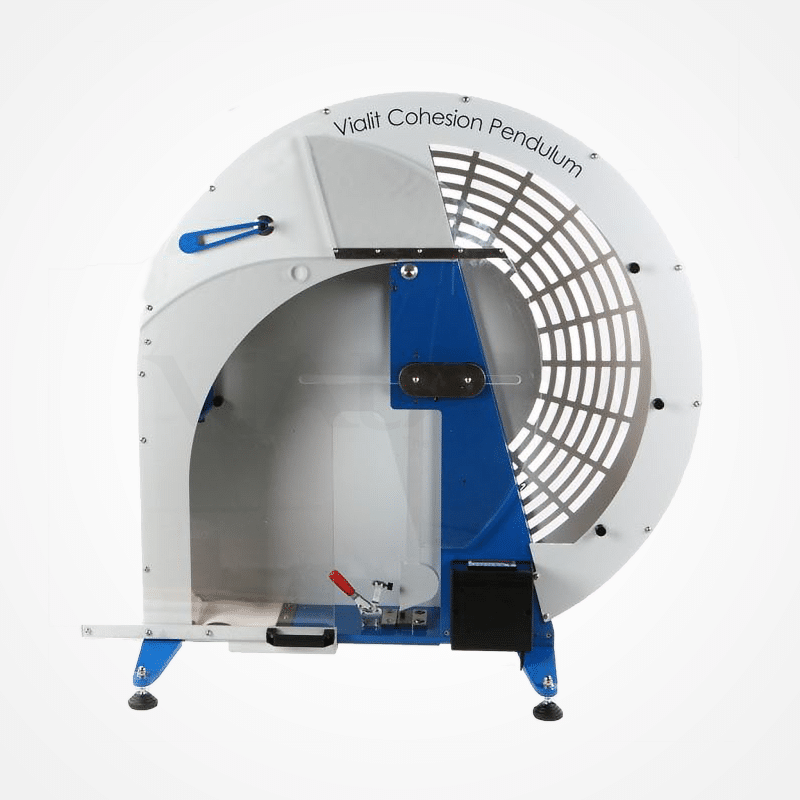

VIALIT Cohesion Pendulum

Description

A rigid steel base painted on anti-vibration feet
Height of the adjustable axis of rotation
A system for reading the ascent angle
Operator protection
Automatic safety lock to prevent pendulum blockage after impact
Incremental angle sensor combined with digital display resolution

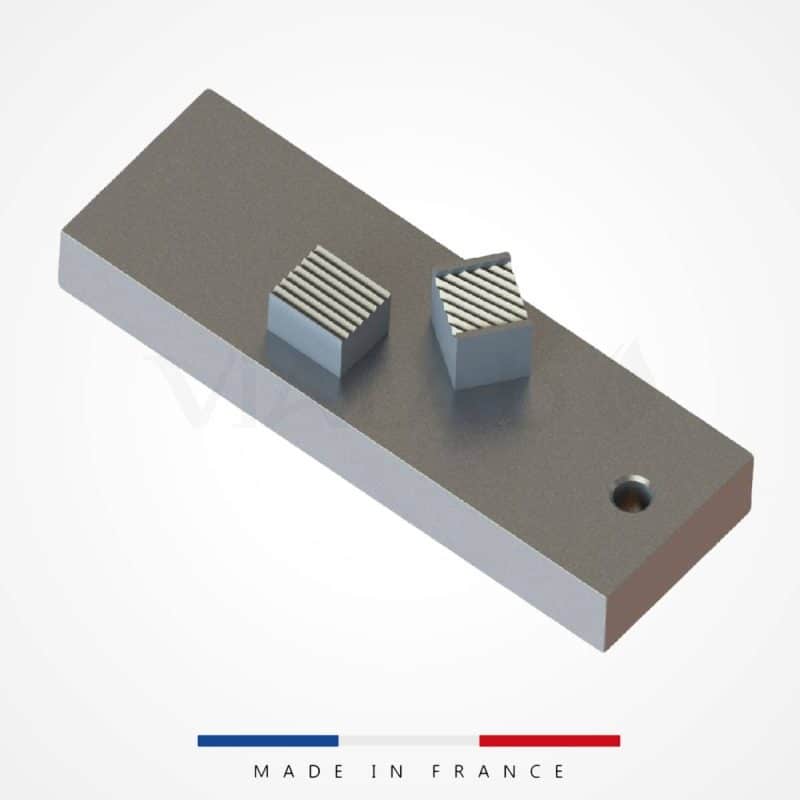

36 combinations of cubes and cube holders
Effective safety system in accordance with European Directive 2006/42 / EC,
Integrated RS 232 communication module
Software available for complete test automation

Technical specifications

Angle measurement range: 0 … 360 °
Measurement resolution 0.1 °
Mass of the pendulum 1925 ± 95 g
Starting position of the pendulum 4 ± 1 °
Radius at the point of impact 500 ± 1 mm
Distance between the pendulum and the axis of the rotation shaft 295 ± 2 mm
Operating temperature 18 … 28 ° C
Dimensions 780 x 1000 x 1920
Power supply 100-240VAC, 50/60 Hz, 1A, 24W
Weight 150 kg
PC with analysis software to be ordered separately

F032.151.1500

PC and Software

PC, battery pack and connection cables
Software developed in Windows, intuitive and reliable with National Instruments LabVIEW ™
The results are taken for the binder under test, over the entire predetermined temperature range and displayed in real time
The results are stored as a .csv file usable with Excel
Previously stored data can be reloaded
Graphic on the screen: Cohesion curve with respect to temperature
Software available in several languages
