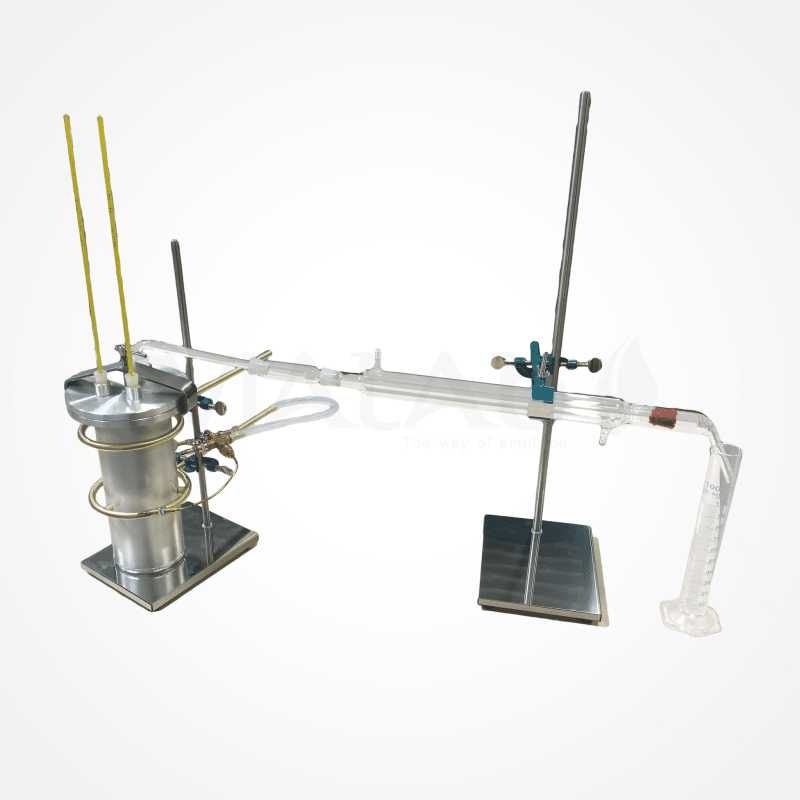

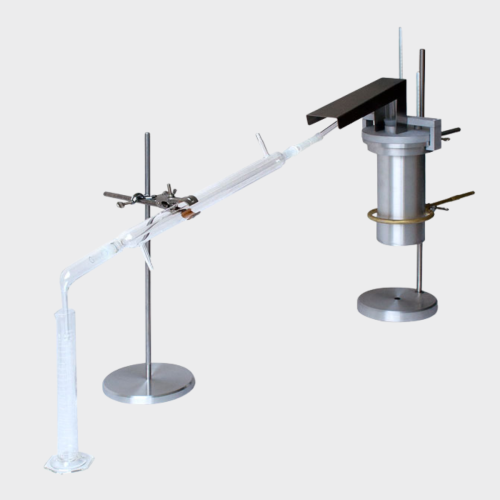

Complete Set
RESIDUAL BINDER AND OIL DISTILLATE FROM BITUMEN EMULSIONS BY DISTILLATION | EN 1431
Complet set including
- Distillation flask
- Annular burner for butane gas, diameter 120 mm
- Glass pipe with angle,
- Zinc protection,
- Glass cooler
- Glass cylinder
- Bunsen Burner
- Ring with nuts to fix the flask,
- Complete Tripods
Accessories not included
- Stainless steel sieve – Ø75 mm – Mesh 300 µm F019.210.7530
- Electronic thermometer for 2 probes F188.253.5002
F044.145.1570
Products

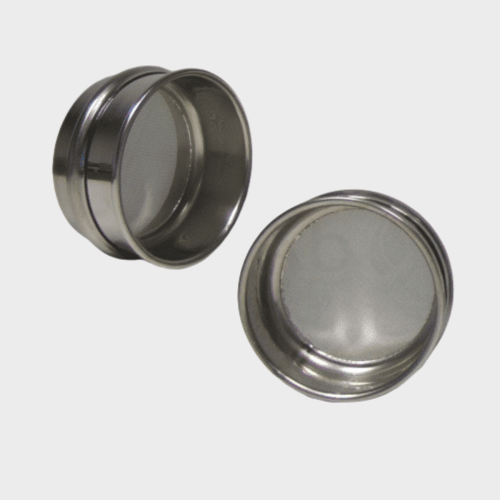

SIEVE | Ø 75 mm | Mesh 300 µm
Specifications
- Mesh 0.300 mm – Ø 75 mm – Depth 30 mm
- ASTM No. 50
- Frame and canvas in stainless steel
- Identification by laser marking
- Supplied with acceptance certificate
- Soldering tin
- ISO 331 compliant
F019.210.7530

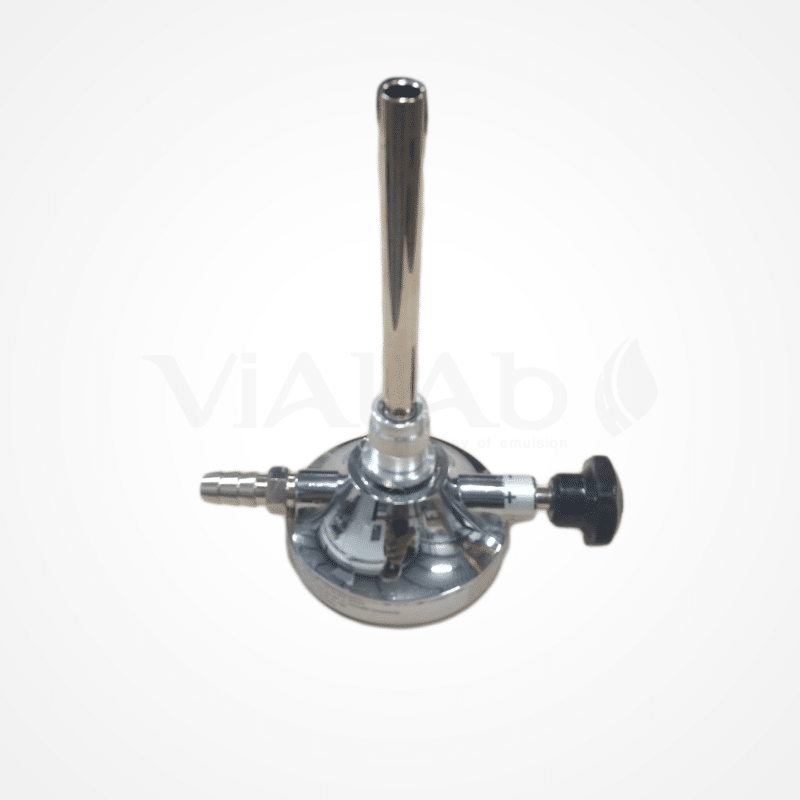

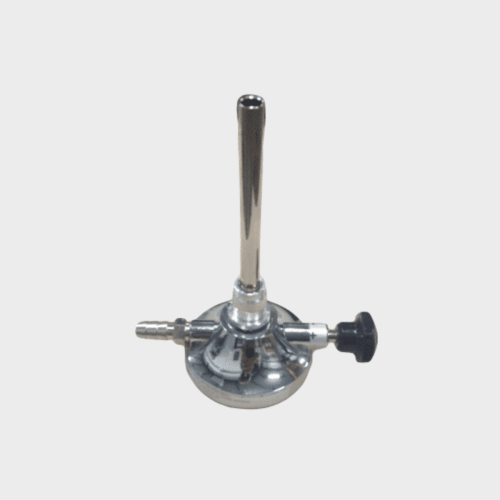

BUNSEN BURNER | CE
Specifications
- CE 370 approved
- With gas and air regulator
- Tube outer Ø: 11 mm
- Total height: 140 mm
- For butane gas: 28/37 mbar
F039.145.1570.657

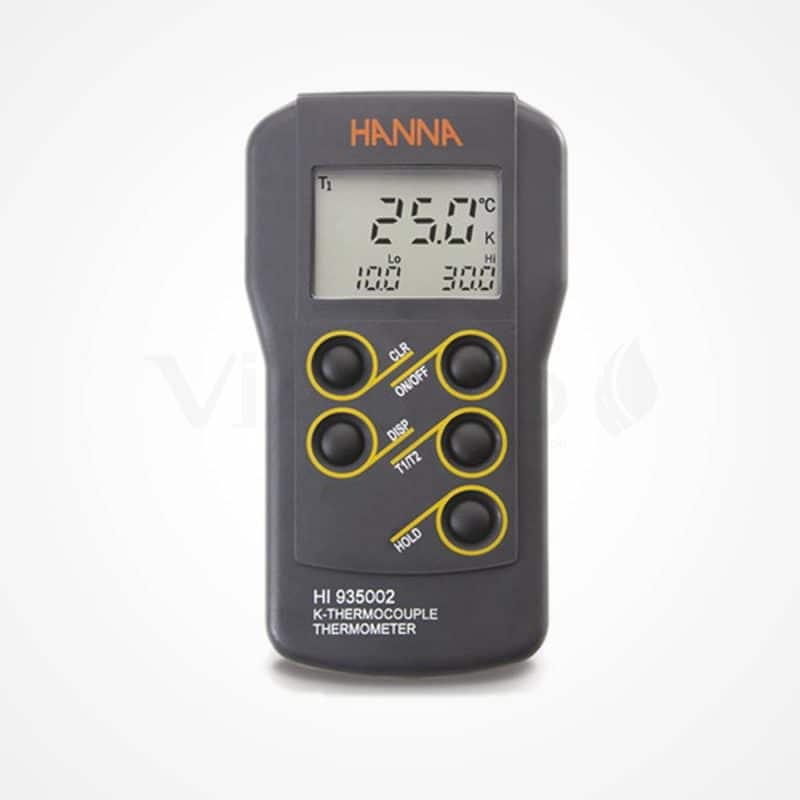

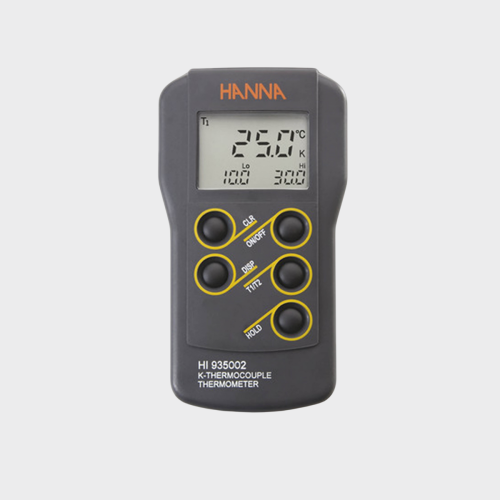

ELECTRONIC THERMOMETER | 2 CHANNELS
Specifications
Digital K thermocouple electronic thermometer
Dual channels for reading two probes simultaneously
- Large digital screen
- Measuring range: -50 to 1350 ° C (± 0.2%)
- Resolution: 0.1 ° C from -50.0 to + 199.9 ° C and 1 ° C from +200 to + 1350 ° C
- For Thermocouple K type probe (Ref. F188.253.5006 & 5007)
- Hold function, mini, maxi
- Waterproof case
- Robust and versatile
Comes with :
1.5V AA battery (x3)
F188.253.5002

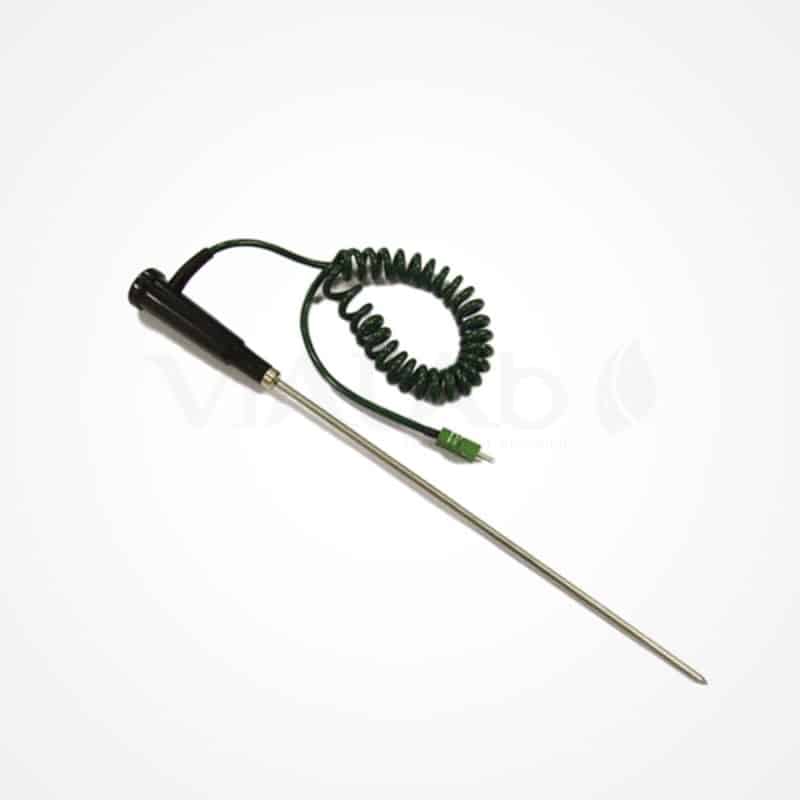

PROBE TYPE K | Ø5×310 mm
Specifications
K thermocouple probe
- For electronic thermometer (Ref. F188.253.5005 or 5002)
- Measuring range: up to 900 ° C
- Stainless steel
- Length 310 mm
- Ø 5 mm
- PVC cord 1m
F188.253.5007
PROBE TYPE K | Ø5×230 mm
Specifications
K thermocouple probe
- For electronic thermometer (Ref. F188.253.5005 or 5002)
- Measuring range: up to 900 ° C
- Stainless steel
- Length 230 mm
- Ø 5 mm
- PVC cord 1m
F188.253.5006
CYLINDER | 100 ml | CLASS B
Specifications
- Graduated cylinder 100 ml
- White graduation
- Subdivision 2 ml
- Borosilicate glass
- Hexagonal foot
- Class B
F039.315.3100
